Cooling System (Mechanical): Cooling: Radiator: Components

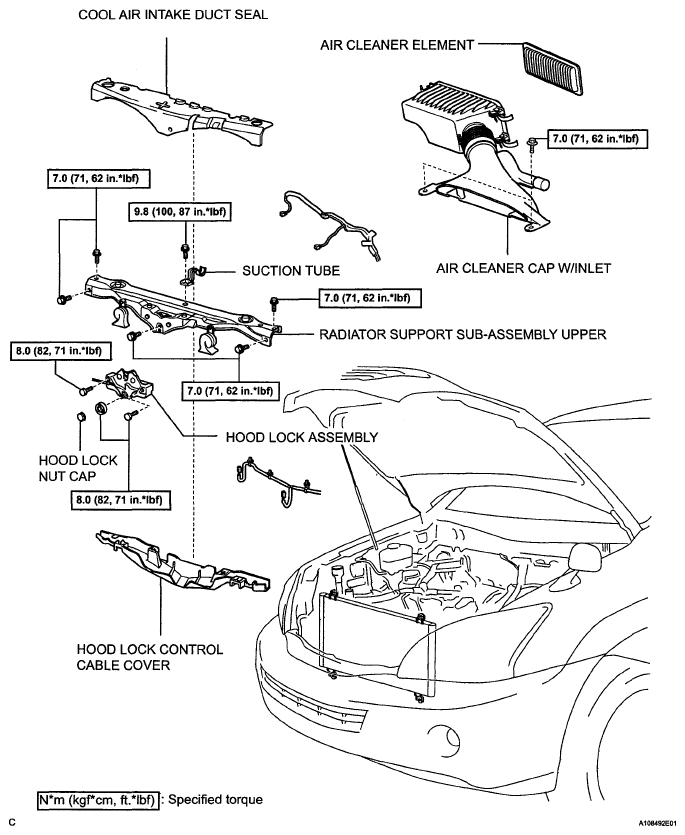

Fig 1: Radiator Replacement Components With Torque Specifications (1 Of 2)
G05276609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

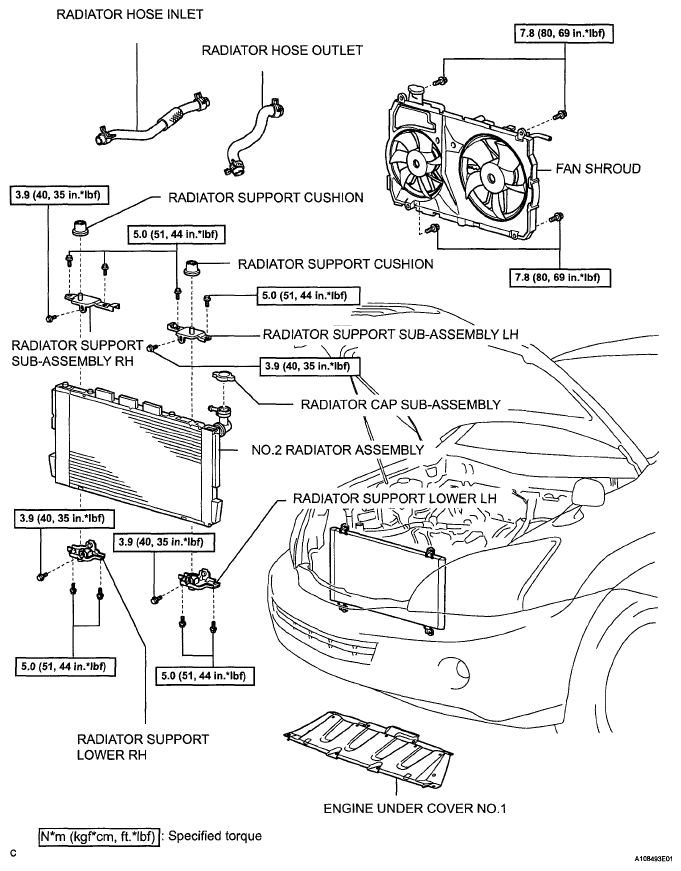

Fig 2: Radiator Replacement Components With Torque Specifications (2 Of 2)
G05276610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
