Combination Meter: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL COMBINATION METER ASSEMBLY
1. Connect the connector.
2. Attach the 2 clips to install the combination meter.
3. Install the 2 screws.

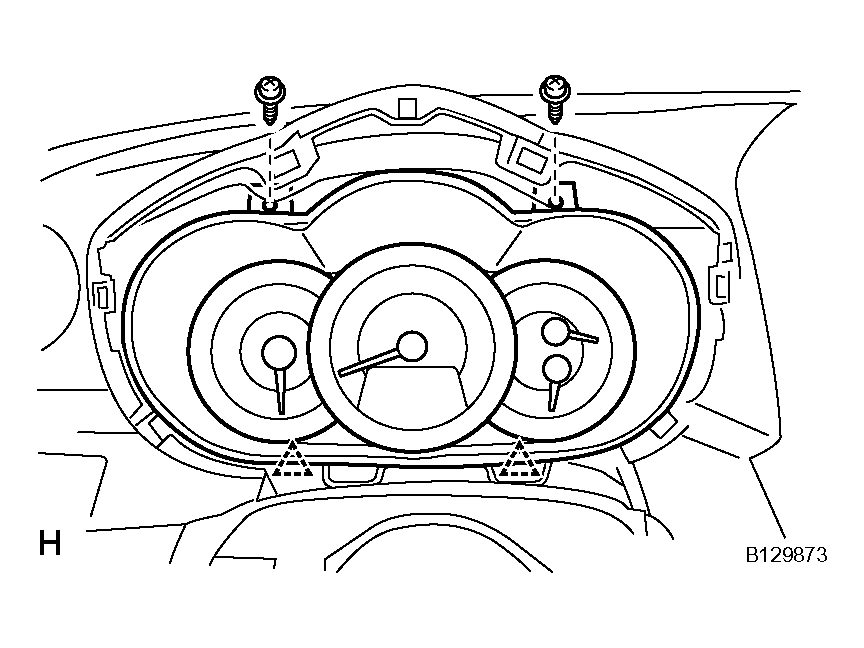

  Fig 1: Installing Combination Meter Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
1. Attach the 4 clips and 6 claws to install the instrument cluster finish panel.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).

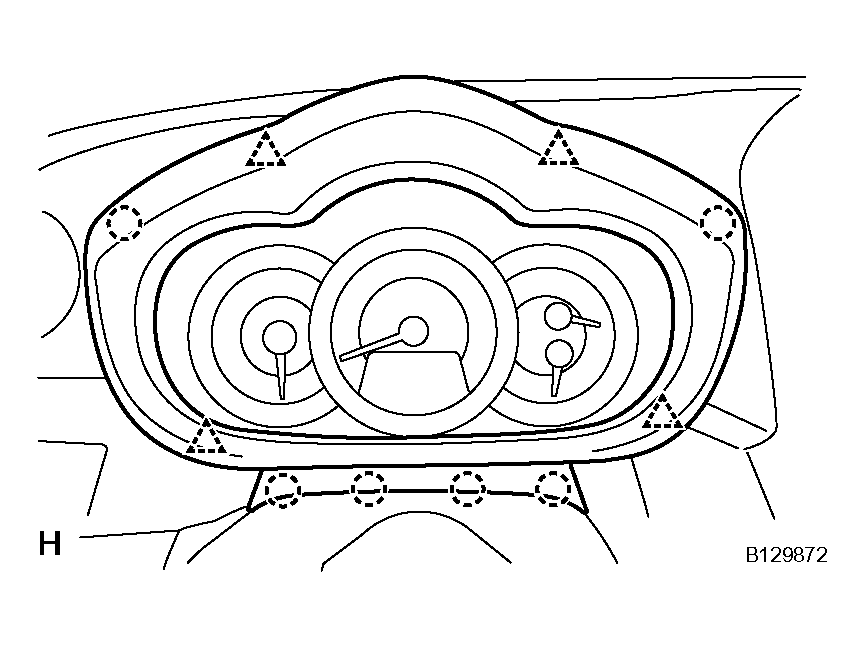

  Fig 2: Identifying Instrument Cluster Finish Panel Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
