Front Axle Hub Bolt: Components: Replacement

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WHEEL
SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY (See REMOVAL )
REMOVE FRONT DISC (See DISASSEMBLY )
REMOVE FRONT AXLE HUB BOLT
1. Temporarily install the 2 nuts and washers to the front axle hub bolt as shown in the illustration.
2. Using SST and a brass bar or an equivalent to hold the front axle, remove the front axle hub bolt.
  SST 09628-10011

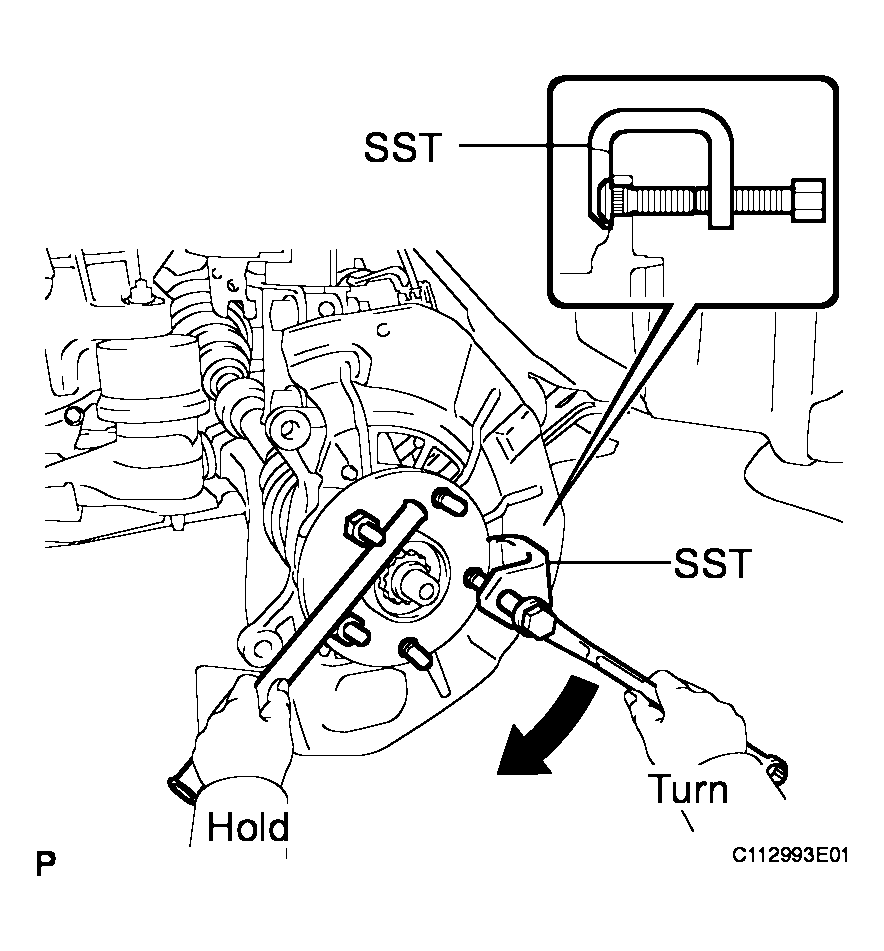

Fig 1: Removing Front Axle Hub Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT AXLE HUB BOLT
1. Install a washer and nut to a new front axle hub bolt as shown in the illustration.
2. Using a brass bar to hold the front axle, install the hub bolt by torquing the nut.

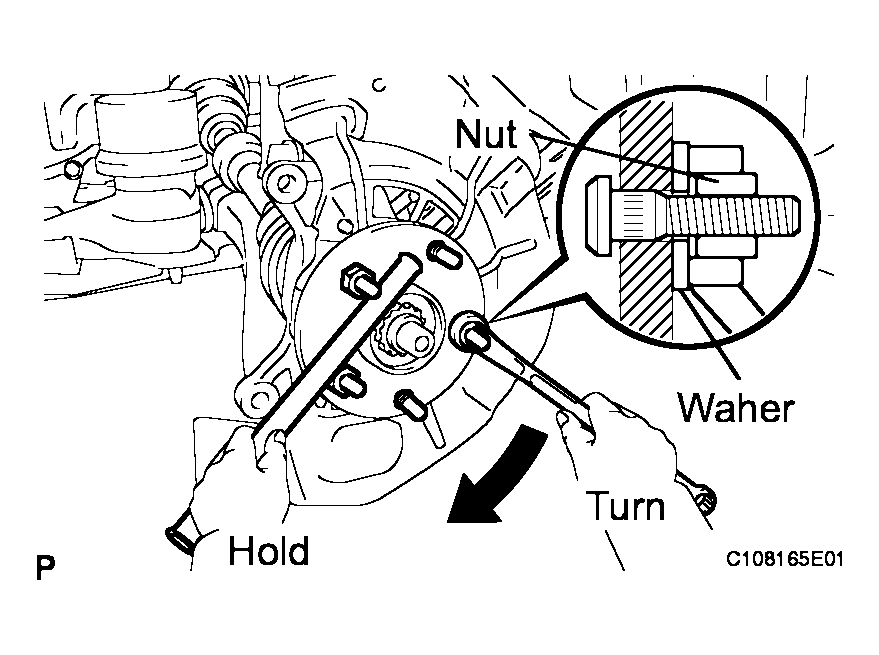

Fig 2: Installing Front Axle Hub Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DISC (See REASSEMBLY )
INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY (See step 11 in INSTALLATION )
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
