Section 38 (Audio / Visual): Multi-Display: Installation
WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL MULTI-DISPLAY
- Connect the connectors.

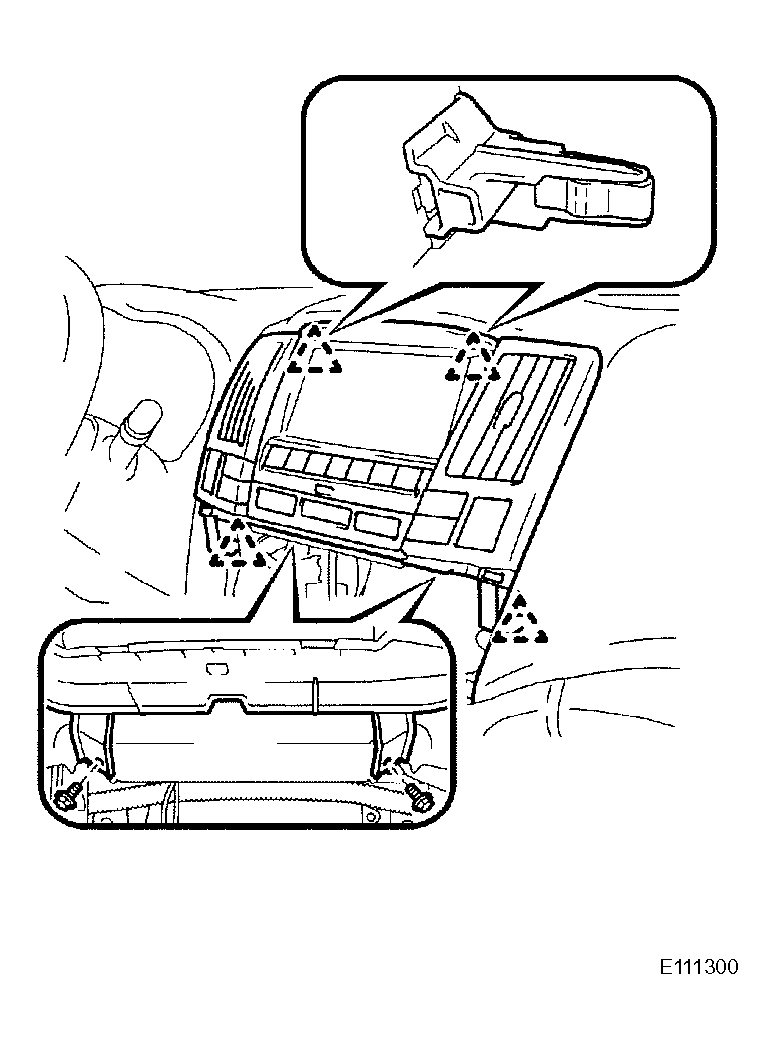

- Engage the 4 clips and install the multi-display with the 2 bolts.
- INSTALL RADIO RECEIVER (See 1 )
- INSTALL INSTRUMENT PANEL FINISH PANEL LOWER (See INSTALLATION )
- INSTALL CONSOLE PANEL UPPER FRONT (See INSTALLATION )
- INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION NOTE: Some systems need initialization when disconnecting the cable from negative battery terminal. (See INITIALIZATION )
