Section 38 (Audio / Visual): Multi-Display: Removal

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See  REMOVAL  )
  3. REMOVE CONSOLE PANEL UPPER FRONT (See  REMOVAL  )
  4. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See  REMOVAL  )
  5. REMOVE RADIO RECEIVER (See   5  )
  6. REMOVE MULTI-DISPLAY
    1. Remove the 2 bolts and disengage the 4 clips.

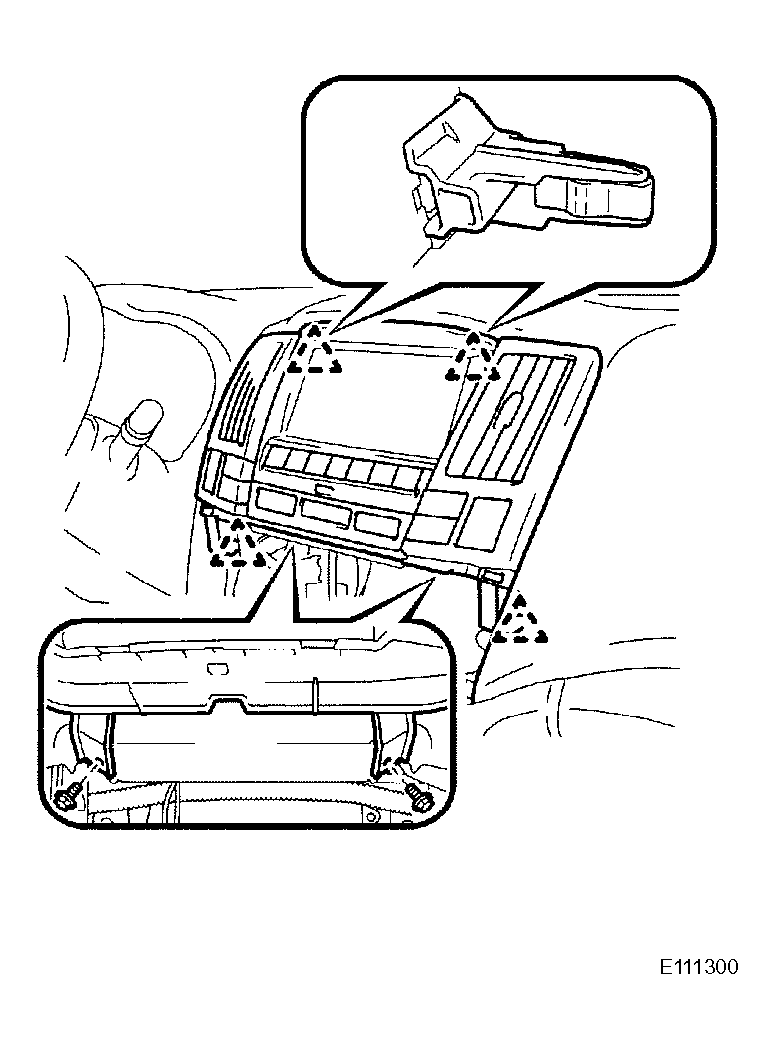

      Fig 1: Identifying Multi-Display
      G04115606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connectors.
    3. Remove the multi-display.
