Navigation Ecu: Installation

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO.2 DISC PLAYER BRACKET
    1. Install the No.2 disc player bracket with the 2 screws.
      Fig 1: Identifying No.2 Disc Player Bracket With Screws
      G04115934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL DISC PLAYER BRACKET
    1. Install the disc player bracket with the screw.
      Fig 2: Identifying Disc Player Bracket With Screw
      G04115935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NAVIGATION ECU
    1. Install the navigation ECU with the 3 bolts.
    2. Connect the 3 connectors and engage the clamp.
  4. INSTALL DECK SIDE TRIM LH BOX (See  INSTALLATION  )
  5. INSTALL DECK SIDE TRIM RH BOX
  6. INSTALL REAR FLOOR FINISH PLATE (See  INSTALLATION  )
  7. INSTALL DECK NO.3 BOARD SUB-ASSEMBLY (See  INSTALLATION  )
  8. INSTALL DECK NO.2 BOARD SUB-ASSEMBLY (See  INSTALLATION  )
  9. INSTALL DECK FLOOR BOX REAR (See  INSTALLATION  )
  10. INSTALL DECK FLOOR BOX FRONT (See  INSTALLATION  )
  11. INSTALL JACK CARRIER ASSEMBLY
  12. INSTALL JACK ASSEMBLY
  13. INSTALL JACK CARRIER SUPPORT

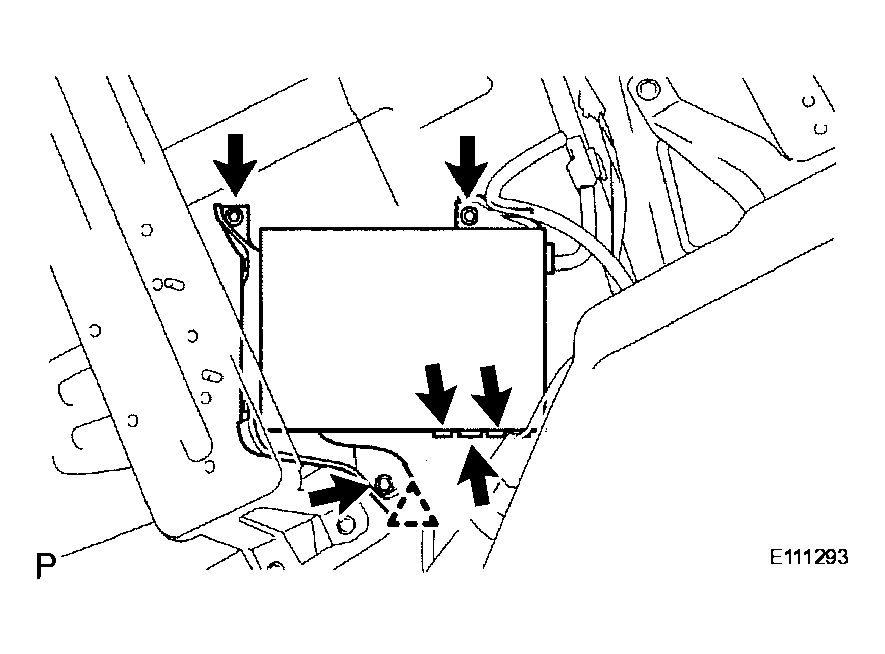

    Fig 3: Identifying Navigation ECU With Bolts
    G04115936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL TONNEAU COVER ASSEMBLY
  15. INSTALL DECK BOARD SUB-ASSEMBLY (See  INSTALLATION  )
  16. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  17. PERFORM INITIALIZATION
    NOTE: Some systems need initialization when disconnecting the cable from negative battery terminal (See INITIALIZATION )
