Battery Plug: Components

Fig 1: HV Relay Assembly Replacement Components With Torque Specifications (1 Of 2)
G05279114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

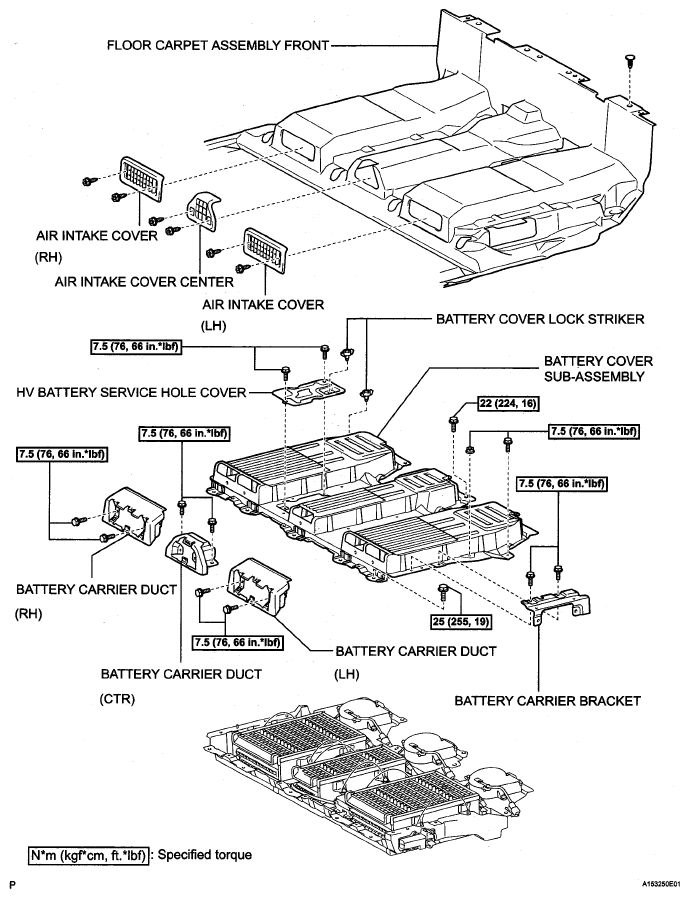

Fig 2: HV Battery Replacement Components With Torque Specifications (2 Of 3)
G05279115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

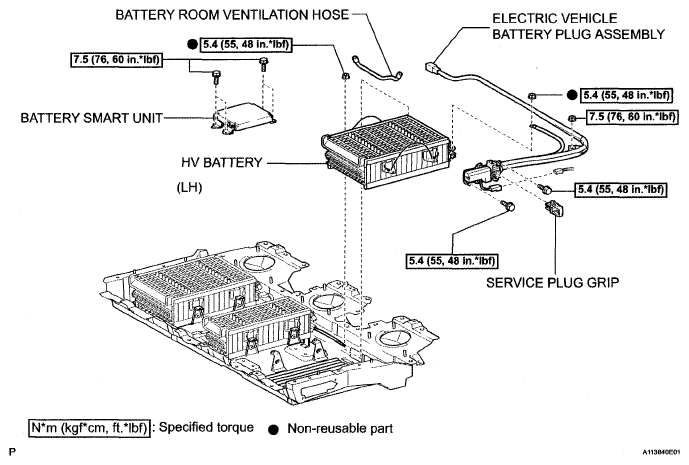

Fig 3: Battery Plug Replacement Components With Torque Specifications (3 Of 3)
G05202101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
