HV Relay Assembly: Components

Fig 1: HV Relay Assembly Replacement Components With Torque Specifications (1 Of 2)
G05279114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

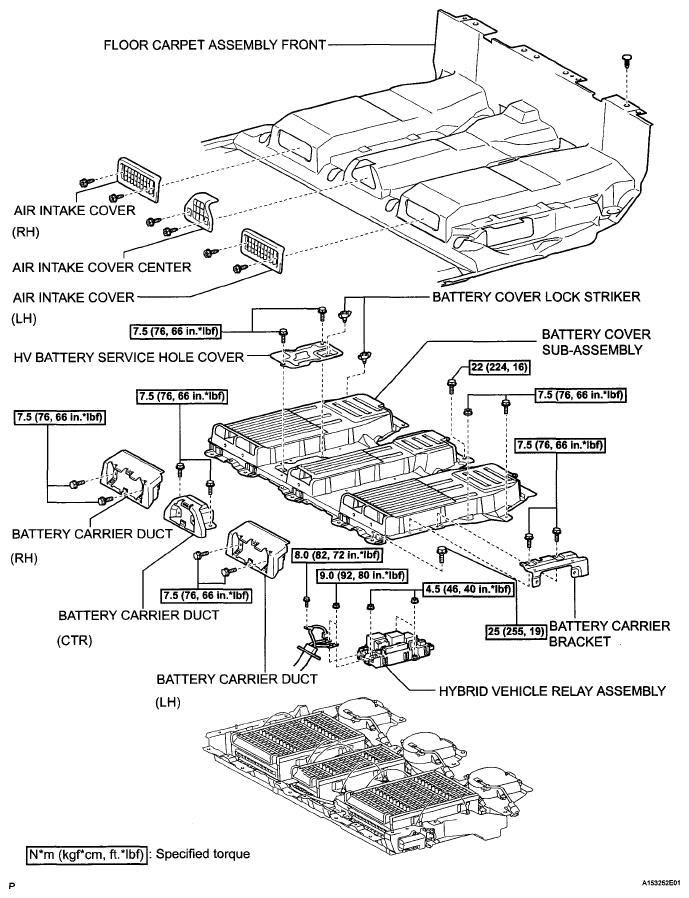

Fig 2: HV Relay Assembly Replacement Components With Torque Specifications (2 Of 2)
G05279202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
