Only Wireless Control Function Is Inoperative
Only Wireless Control Function is InoperativeDESCRIPTION
The signal from the transmitter is input to the theft warning ECU through the RDA line. The status of the RDA and RSSI lines are diagnosed by the theft warning ECU. If the wireless door lock control system fails, check for DTCs to confirm if the cause is the RDA and/or RSSI line.
Wiring Diagram:
Step 1-2:

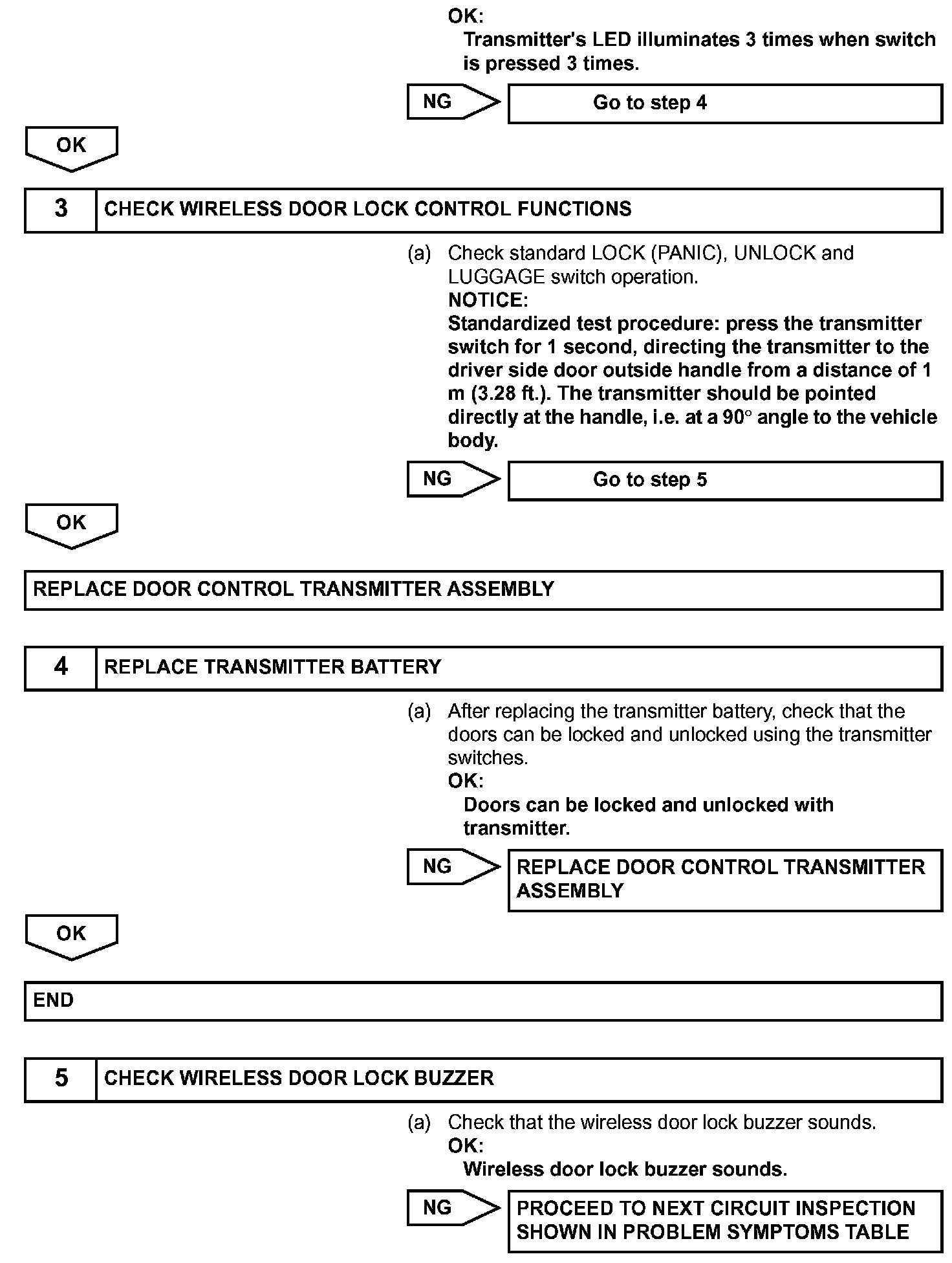

Step 2 (Continued)-5:

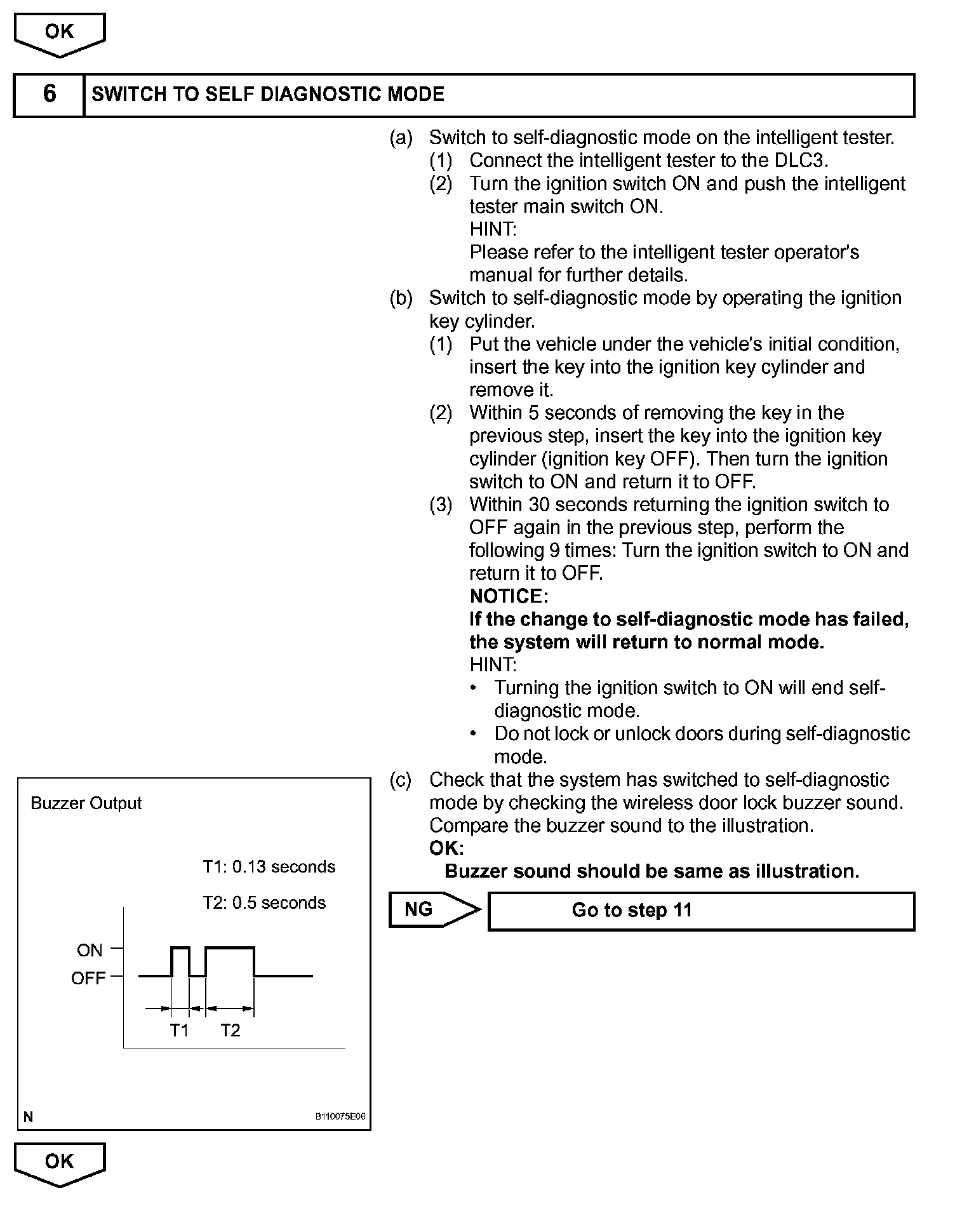

Step 5 (Continued)-6:

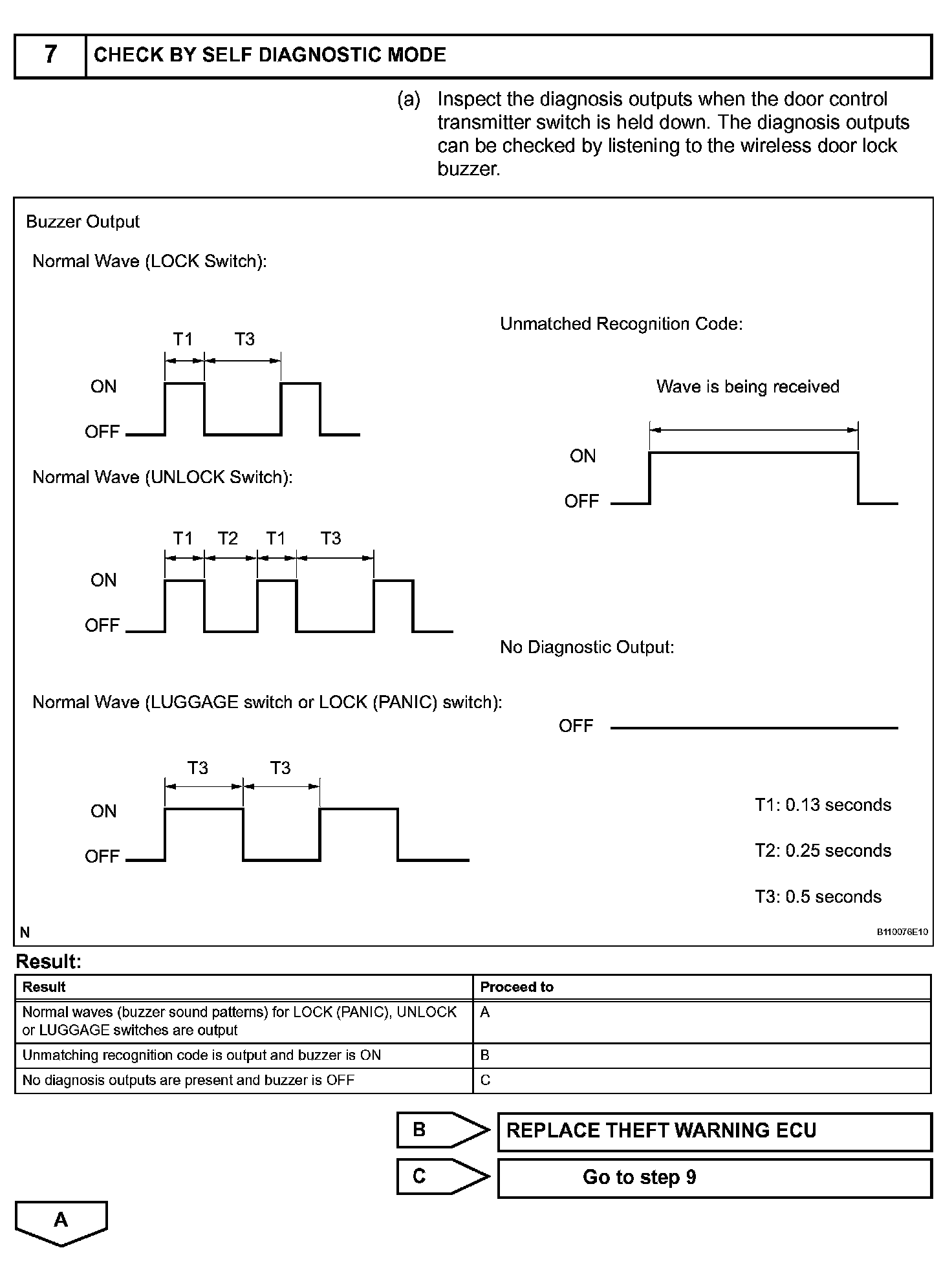

Step 7:

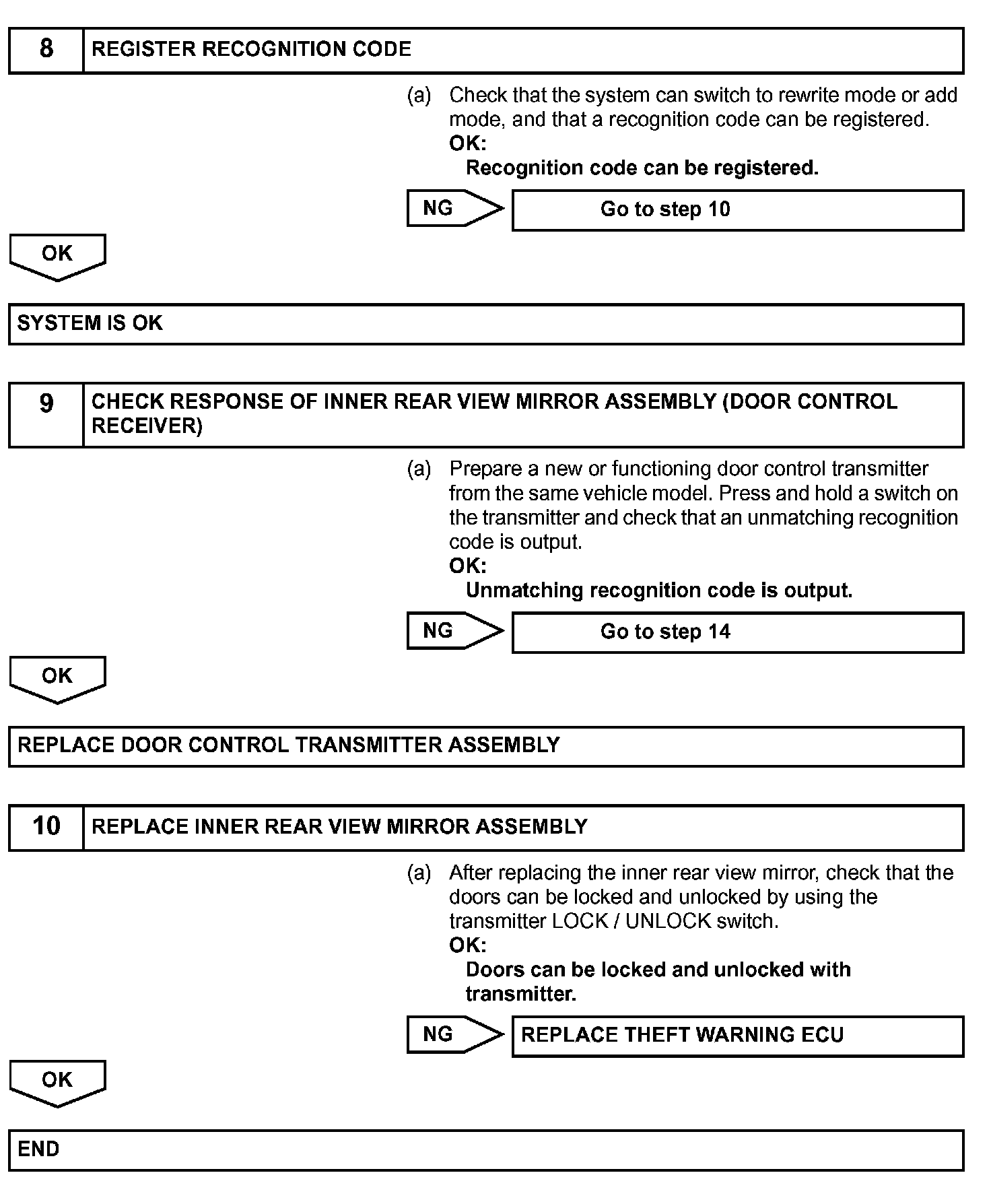

Step 8-10:

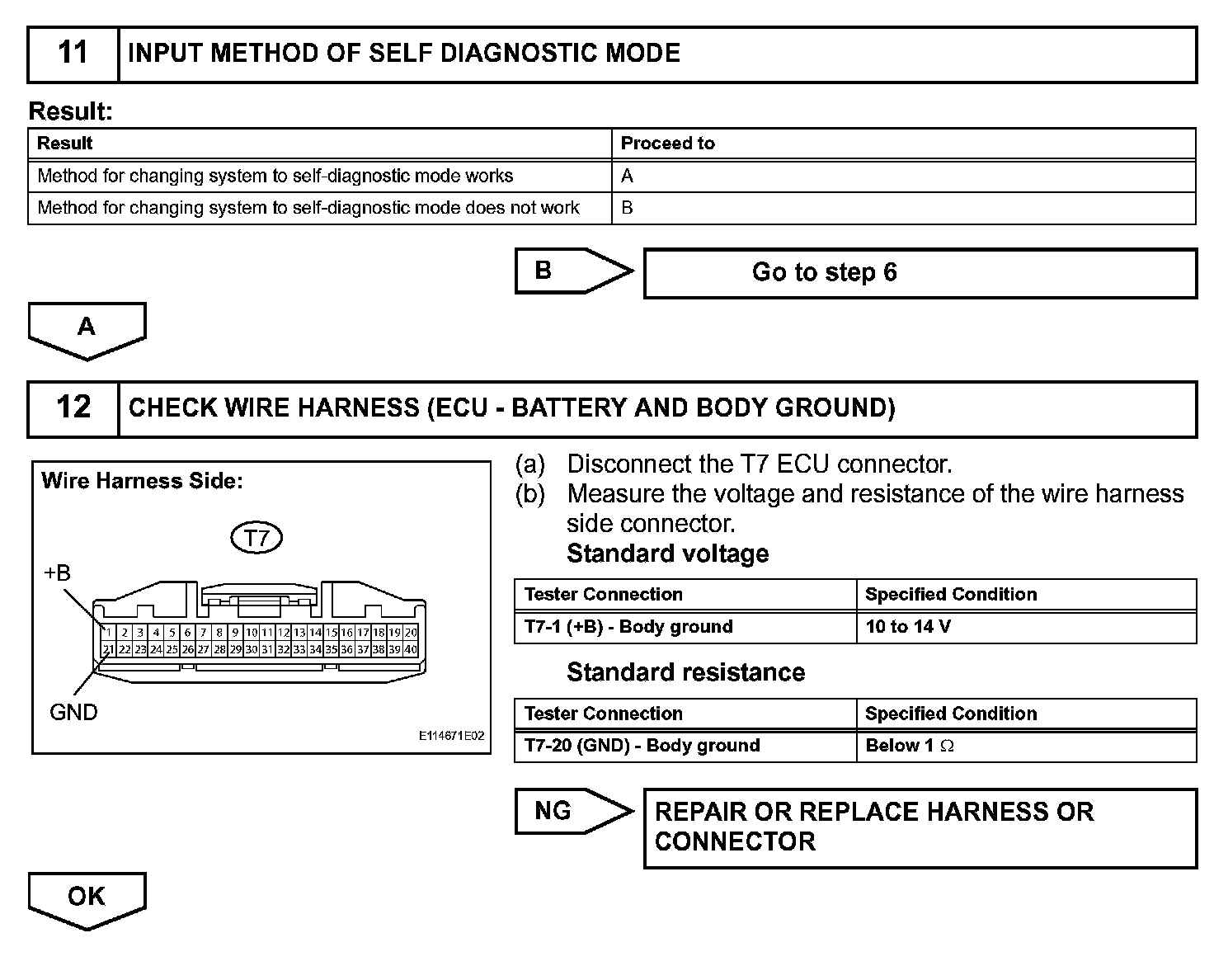

Step 11-12:

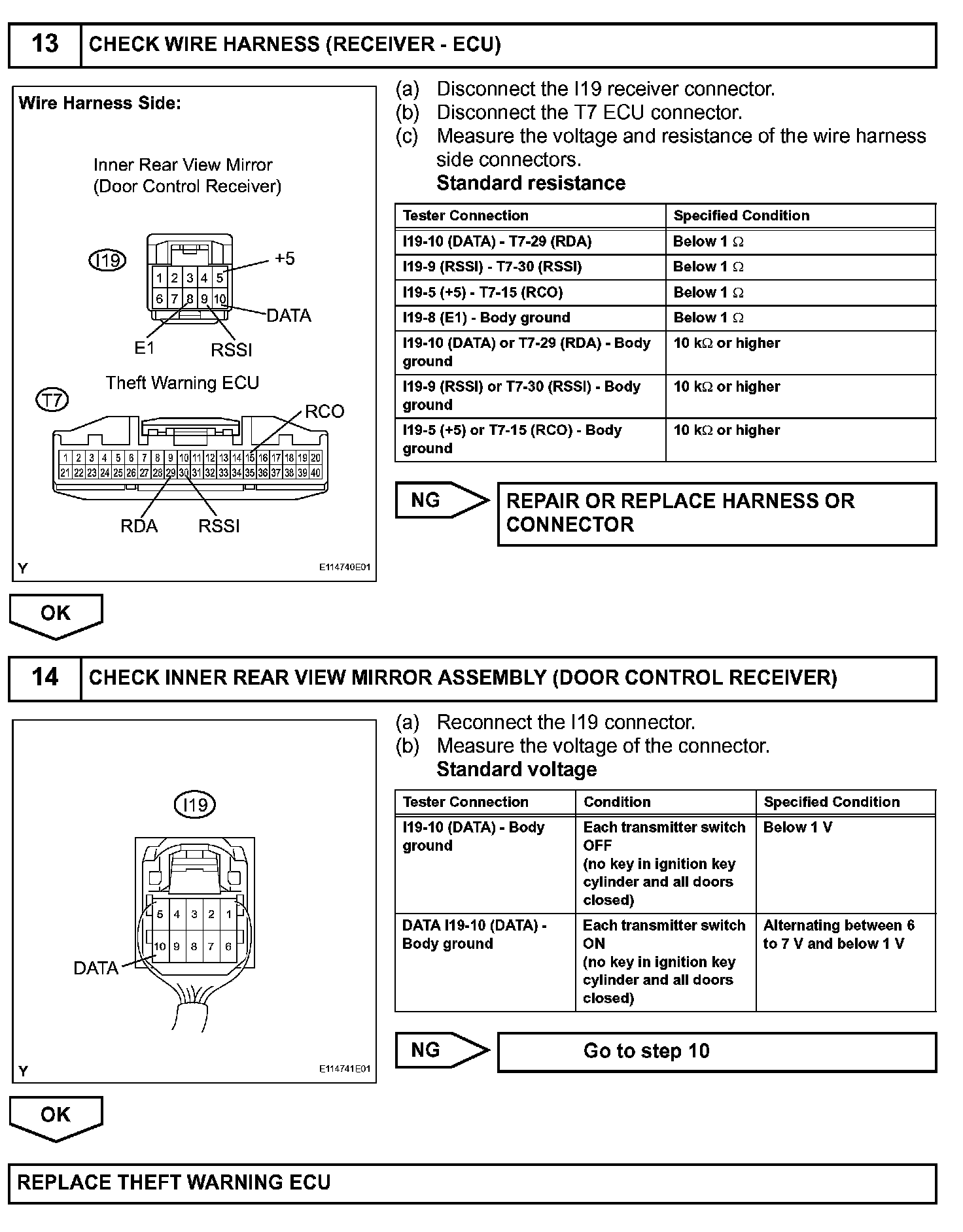

Step 13-14:
INSPECTION PROCEDURE
