Cooling System (Mechanical): Cooling: Thermostat: Components

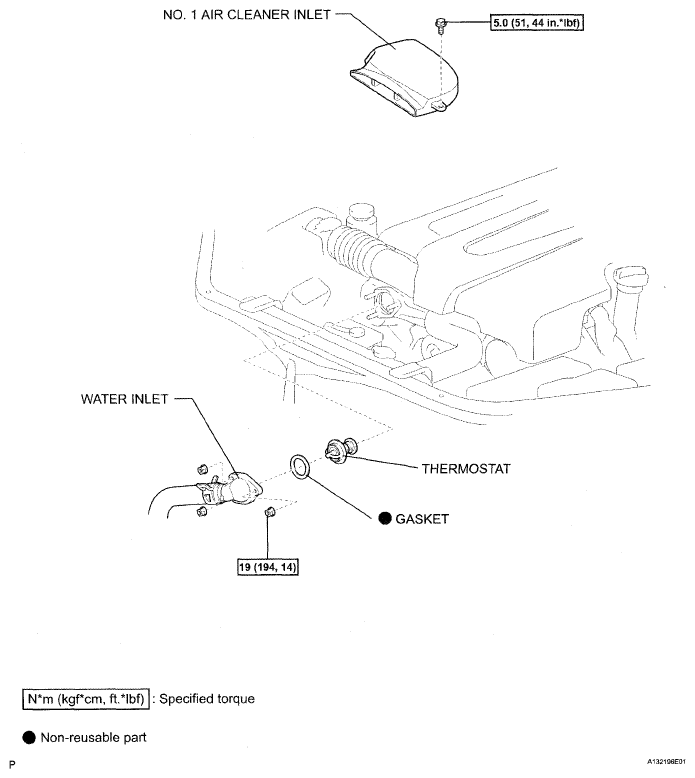

Fig 1: Thermostat Replacement Components With Torque Specifications
G05289320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
