Cruise Control Switch: Testing and Inspection

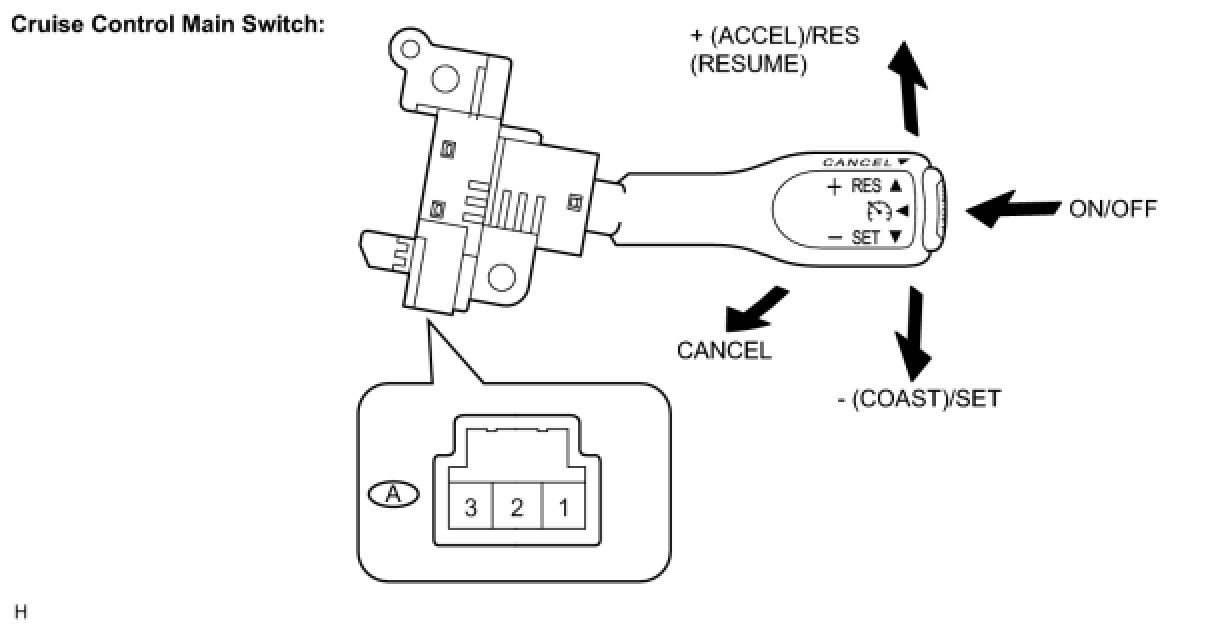

CRUISE CONTROL MAIN SWITCH:

INSPECTION

1. INSPECT CRUISE CONTROL MAIN SWITCH
(a) Remove the cruise control main switch.





(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the cruise control main switch
