Instrument Panel Safety Pad: Components

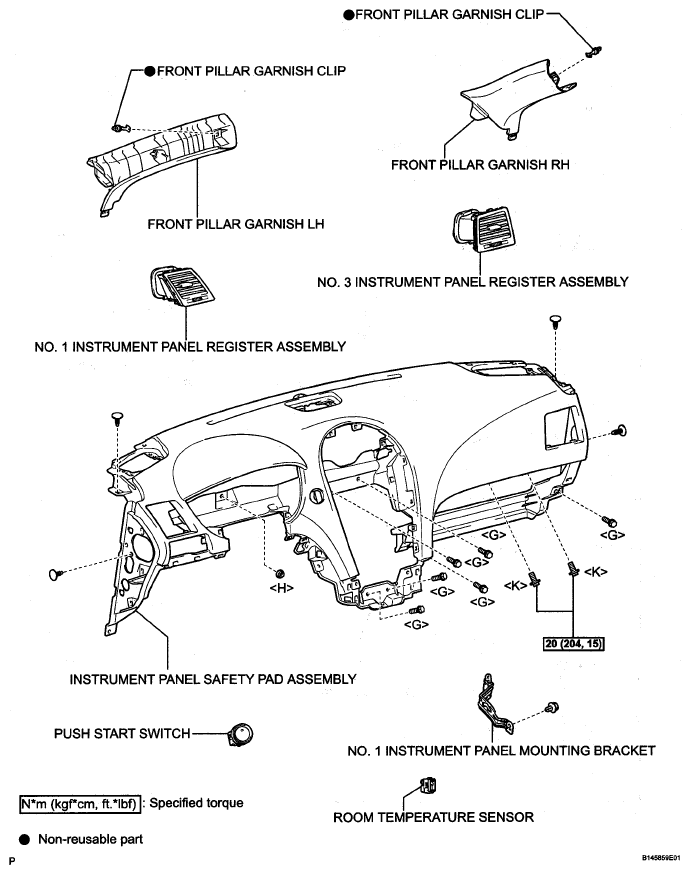

Fig 1: Instrument Panel Assembly Replacement Components With Torque Specifications (1 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

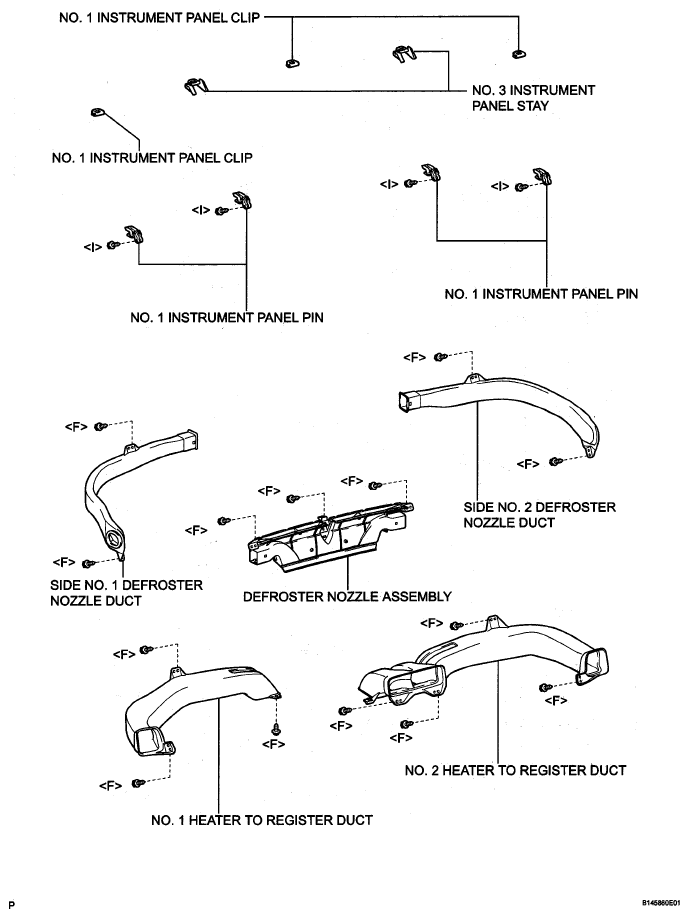

Fig 2: Instrument Panel Assembly Replacement Components With Torque Specifications (2 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

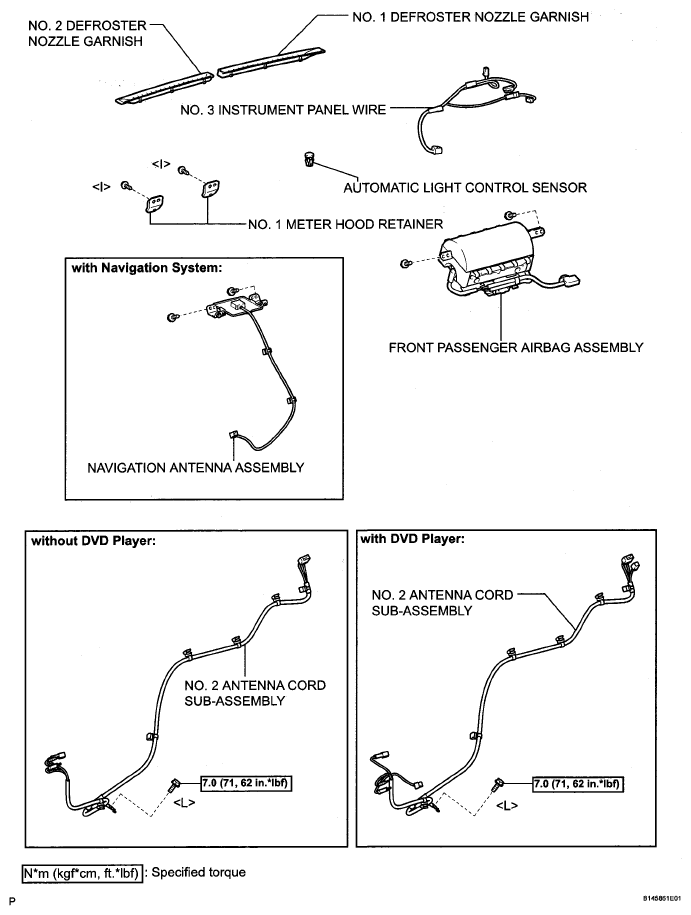

Fig 3: Instrument Panel Assembly Replacement Components With Torque Specifications (3 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Instrument Panel Assembly Replacement Components With Torque Specifications (4 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Instrument Panel Assembly Replacement Components With Torque Specifications (5 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Instrument Panel Assembly Replacement Components With Torque Specifications (6 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Instrument Panel Assembly Replacement Components With Torque Specifications (7 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: Instrument Panel Assembly Replacement Components With Torque Specifications (8 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Instrument Panel Assembly Replacement Components With Torque Specifications (9 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
