Section 77 (Starting): Starter: Components

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

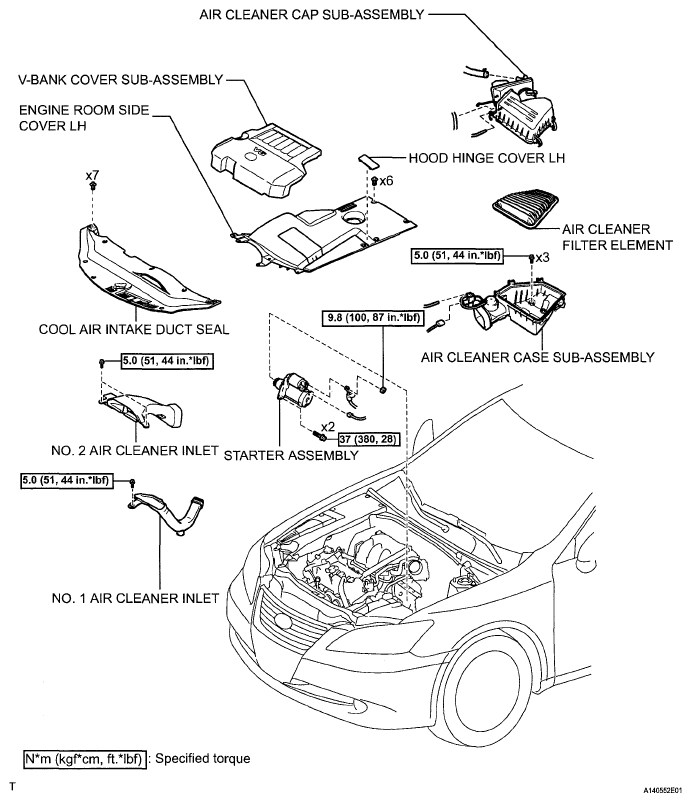

Fig 1: Starter Replacement Components With Torque Specifications(1 Of 2)
G05248911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

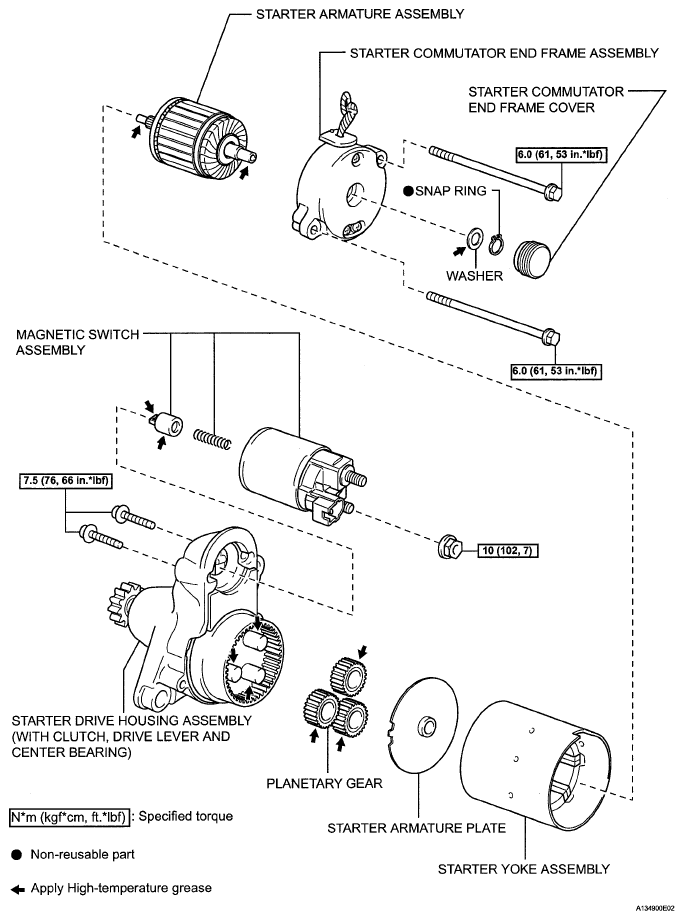

Fig 2: Starter Replacement Components With Torque Specifications(2 Of 2)
G05248912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
