Stereo Component Amplifier: Installation

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY
  2. INSTALL NO. 2 AMPLIFIER BRACKET
    1. Install the No. 2 amplifier bracket with the 2 bolts.
      Fig 1: Locating No. 2 Amplifier Bracket Bolts
      G05253036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 AMPLIFIER BRACKET
    1. Install the No. 1 amplifier bracket with the 2 bolts.
      Fig 2: Locating No.1 Amplifier Bracket Bolts
      G05253035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET
    1. Install the stereo component amplifier assembly with bracket with the 3 nuts.
    2. Connect each connector.

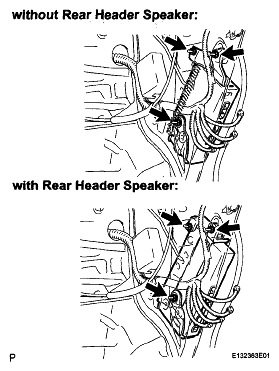

    Fig 3: Locating Stereo Component Amplifier Assembly With Bracket Nuts
    G05253039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL SEAT BELT CONTROL ECU (w/ Pre-collision System)  (See INSTALLATION )
  6. INSTALL CLEARANCE WARNING ECU ASSEMBLY (w/ Intuitive Parking Assist System)  (See INSTALLATION )
  7. INSTALL LUGGAGE COMPARTMENT INNER TRIM COVER RH
    1. Install the luggage compartment inner trim cover RH with the 3 clips.
    Fig 4: Identifying Luggage Compartment Inner Trim Cover RH With Clips
    G05253040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR FLOOR FINISH PLATE  (See REASSEMBLY )
  9. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK  (See REASSEMBLY )
  10. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY  (See REASSEMBLY )
  11. INSTALL SPARE WHEEL COVER TRAY
  12. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
