Floor Shift Assembly: Components

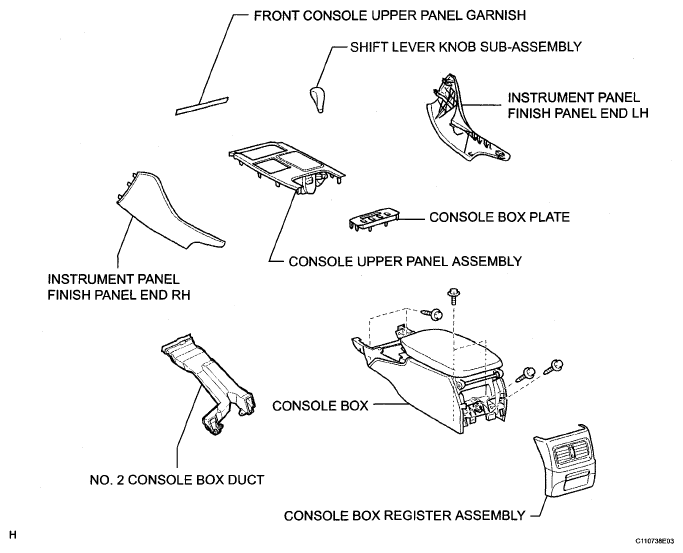

Fig 1: Floor Shift Assembly Replacement Components With Torque Specifications (1 Of 3)
G05288263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

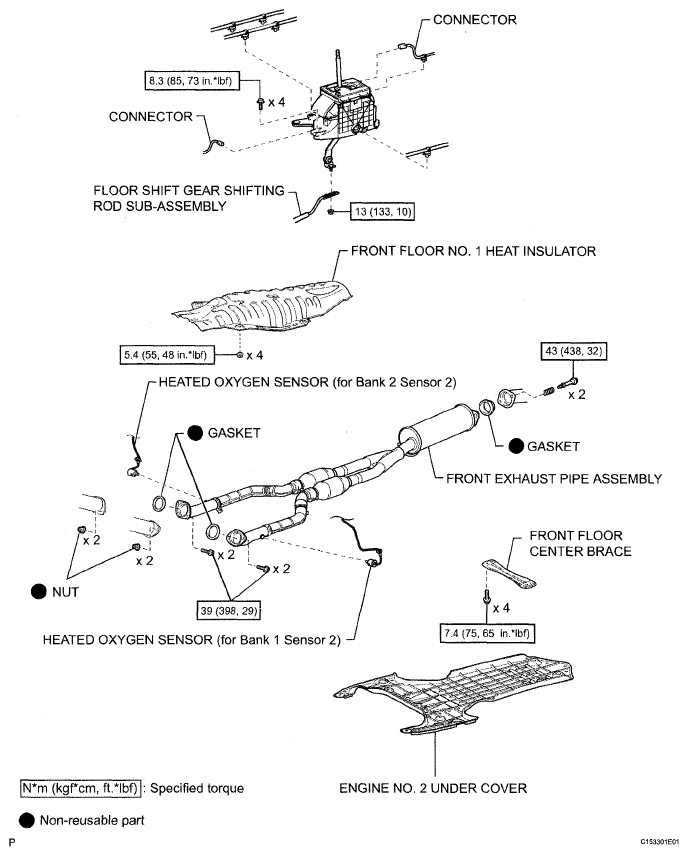

Fig 2: Floor Shift Assembly Replacement Components With Torque Specifications (2 Of 3)
G05288264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

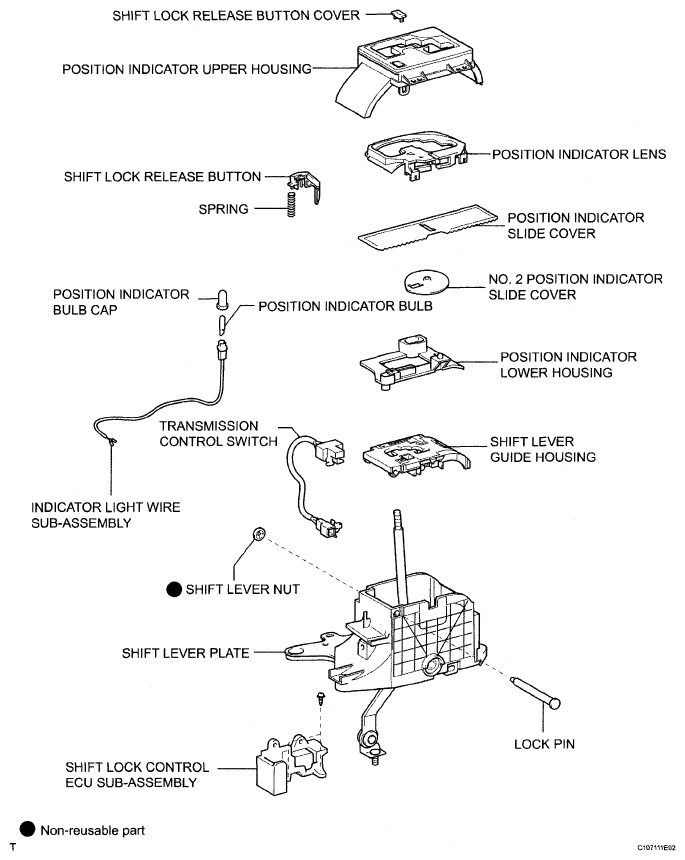

Fig 3: Floor Shift Assembly Replacement Components With Torque Specifications (3 Of 3)
G05288265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
