Cruise Control Switch Circuit: Wiring Diagram

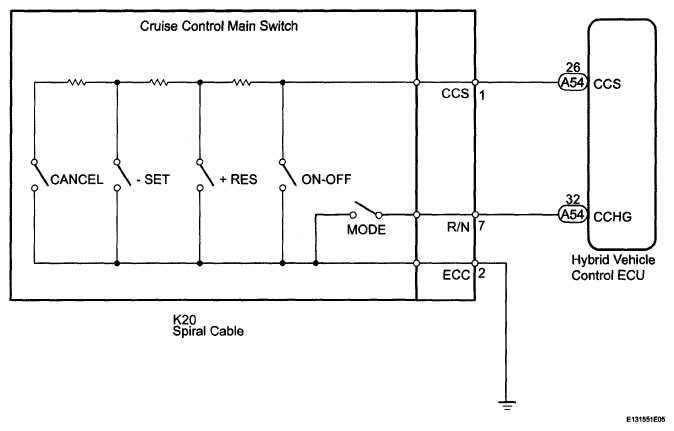

Fig 1: Cruise Control Main Switch - Wiring Diagram
G05817615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
