Removal

DOOR LOCK: DOOR CONTROL TRANSMITTER:

REMOVAL

1. REMOVE TRANSMITTER BATTERY
NOTE: Take extra care when handling these precision electronic components.

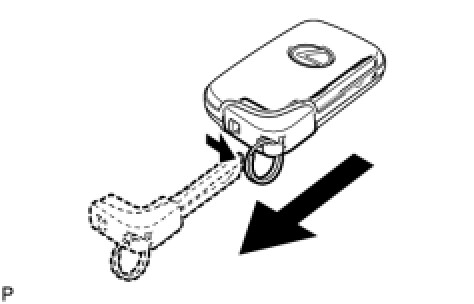

(a) Remove the mechanical key.

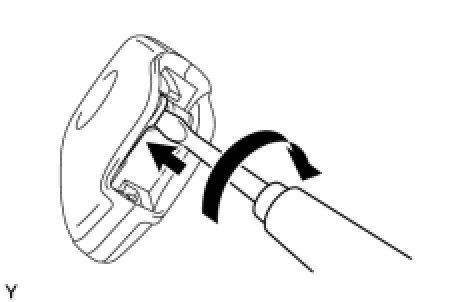

(b) Insert a screwdriver into the gap, and turn the screwdriver to detach the cover.

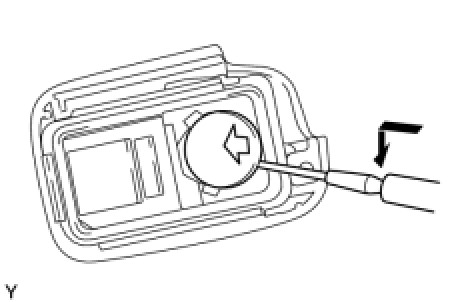

(c) Insert a screwdriver into the gap and remove the battery.
