Cylinder Block: Replacement

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

REPLACE STRAIGHT PIN

NOTE: It is not necessary to remove the straight pins unless they are being replaced.

Remove the straight pins.
Using a plastic-faced hammer, tap in new straight pins to the cylinder block.

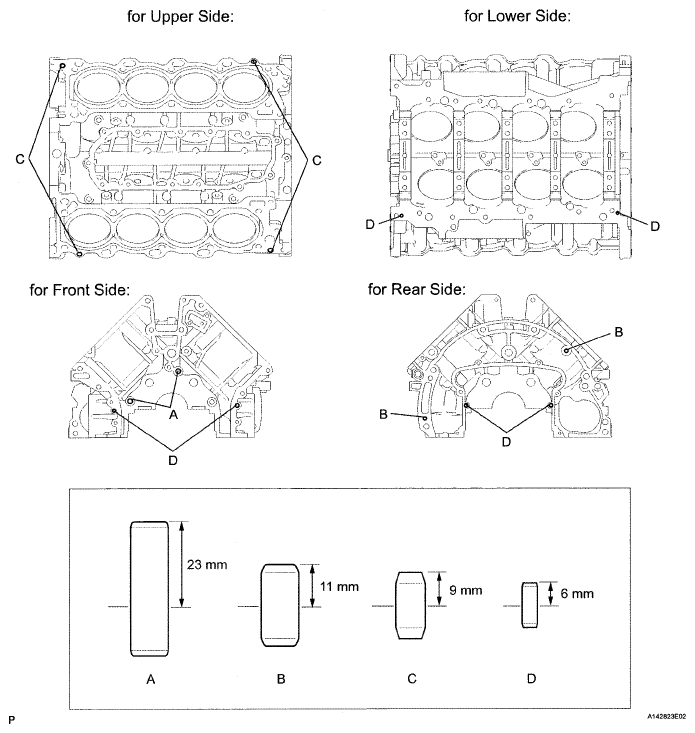

Fig 1: Identifying Straight Pin Dimensions

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Protrusion

STRAIGHT PIN PROTRUSION SPECIFICATION

Item	Specified Condition
Pin A	23 mm (0.906 in.)
Pin B	11 mm (0.433 in)
Pin C	9 mm (0.354 in.)
Pin D	6 mm (0.236 in)

REPLACE STUD BOLT
NOTE: If a stud bolt is deformed or the threads are damaged, replace it.
1. Remove the stud bolts
2. Using E8 and E10 "TORX" socket wrenches, install the stud bolts

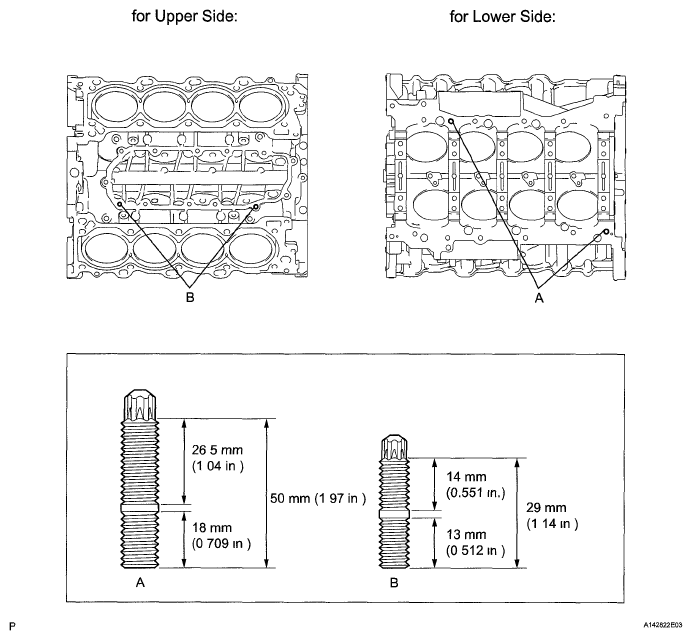

Fig 2: Identifying Stud Bolt Dimensions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: Bolt A

10 N*m (102 kgf*cm, 7 ft.*lbf)

Bolt B

9.0 N*m (92 kgf*cm, 80 in.*lbf)
