Torque Converter And Drive Plate: Components

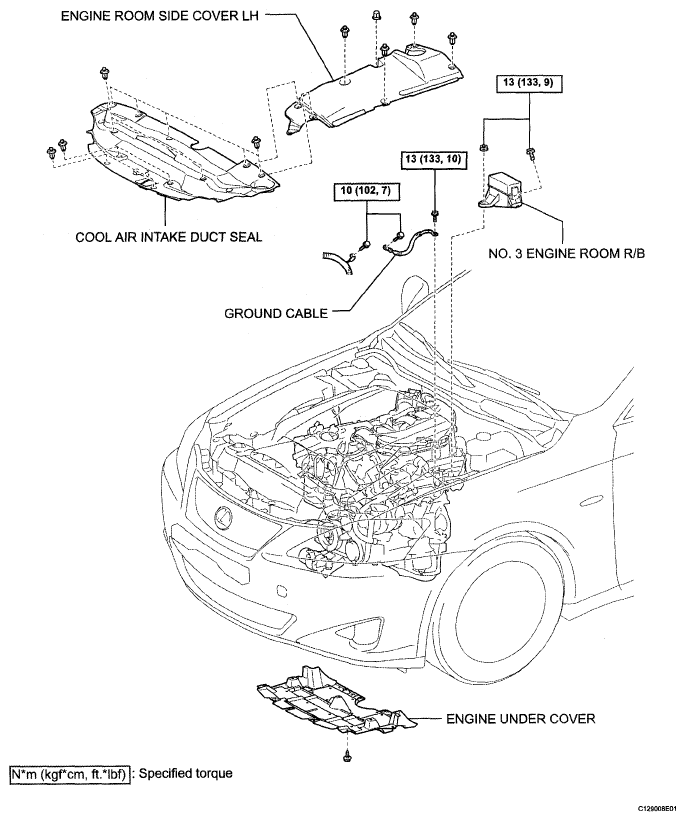

Fig 1: Identifying Torque Converter And Drive Plate Replacement Components And Torque Specifications (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

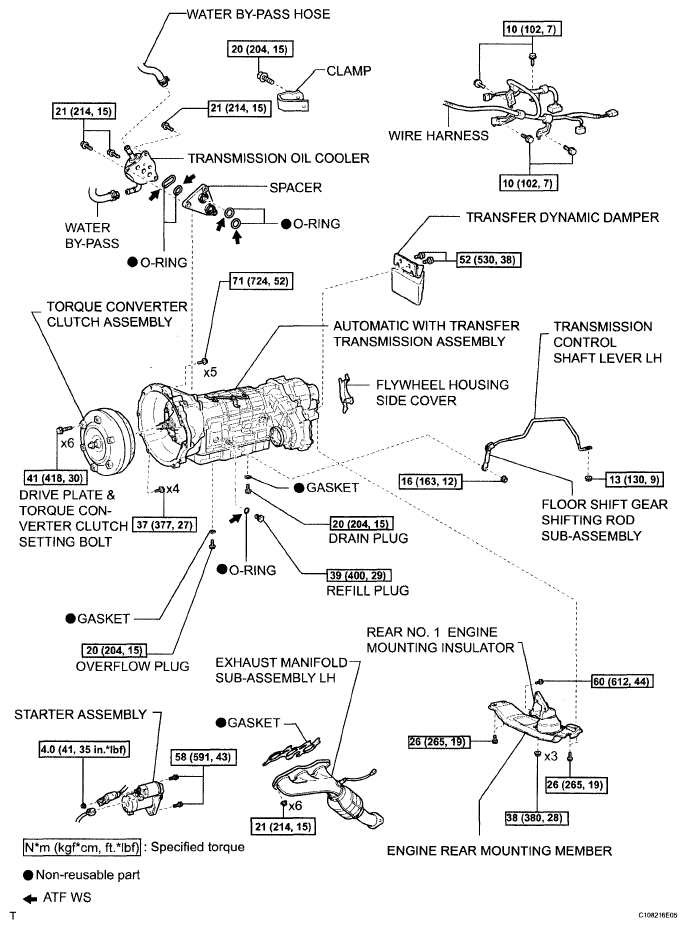

Fig 2: Identifying Torque Converter And Drive Plate Replacement Components And Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

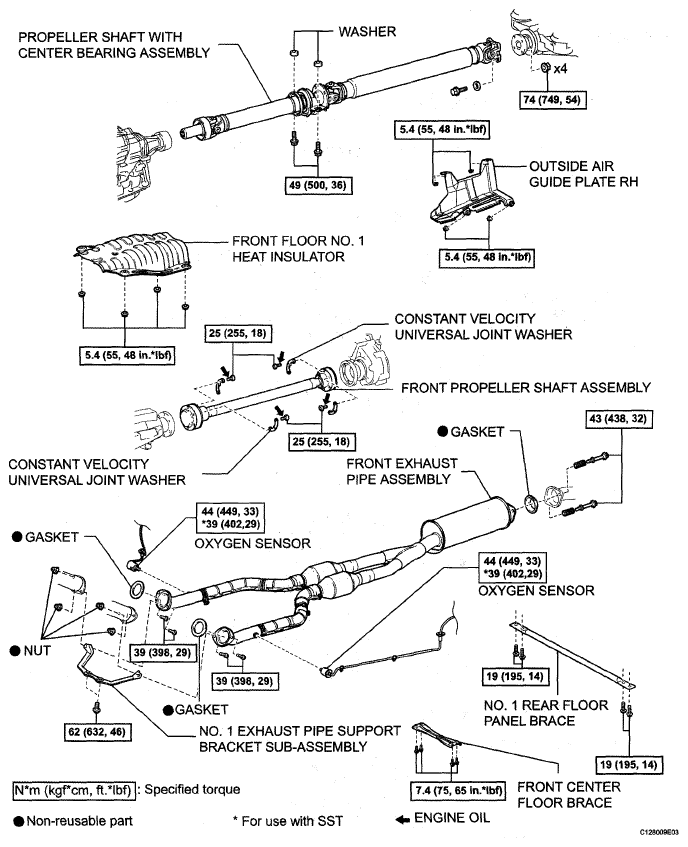

Fig 3: Automatic Transmission Assembly Replacement Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
