Installation

2GR-FSE ENGINE CONTROL SYSTEM: VVT SENSOR:

INSTALLATION

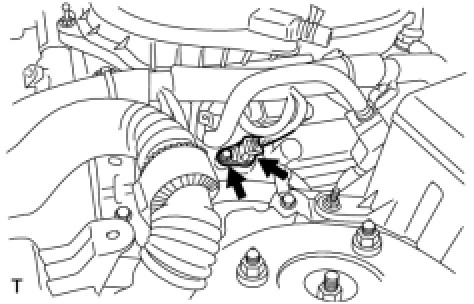

1. INSTALL VVT SENSOR (for Exhaust Side of Bank 2)






(a) Install the VVT sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connector.

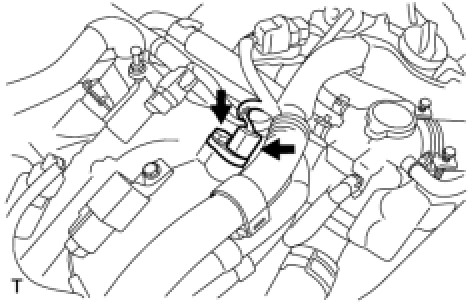

2. INSTALL VVT SENSOR (for Intake Side of Bank 2)






(a) Install the VVT sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connector.

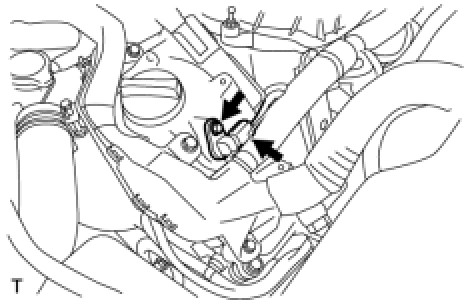

3. INSTALL VVT SENSOR (for Exhaust Side of Bank 1)






(a) Install the VVT sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connector.

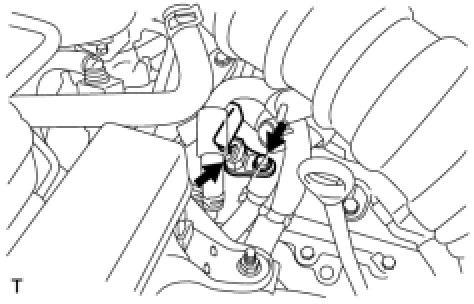

4. INSTALL VVT SENSOR (for Intake Side of Bank 1)






(a) Install the VVT sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connector.
5. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
