Engine Immobilizer
>>
Engine Immobilizer System
>>
ID Code Box Power Source Circuit
>>
Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
ID Code Box Power Source Circuit: Wiring Diagram

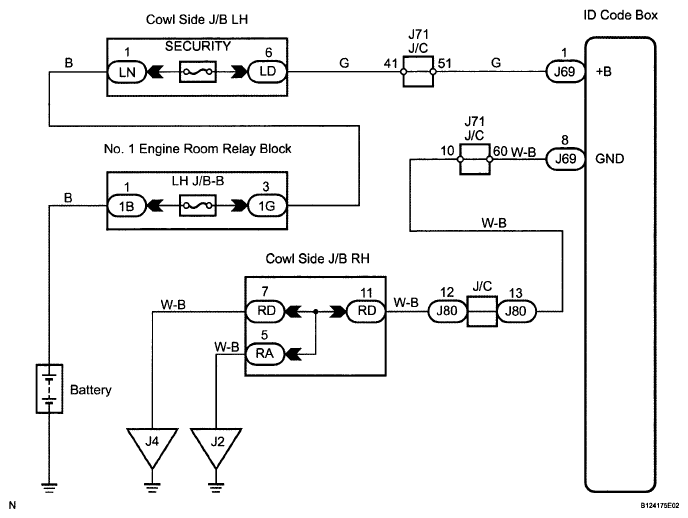

Fig 1: ID Code Box Power Source Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
