Roof Headlining: Components

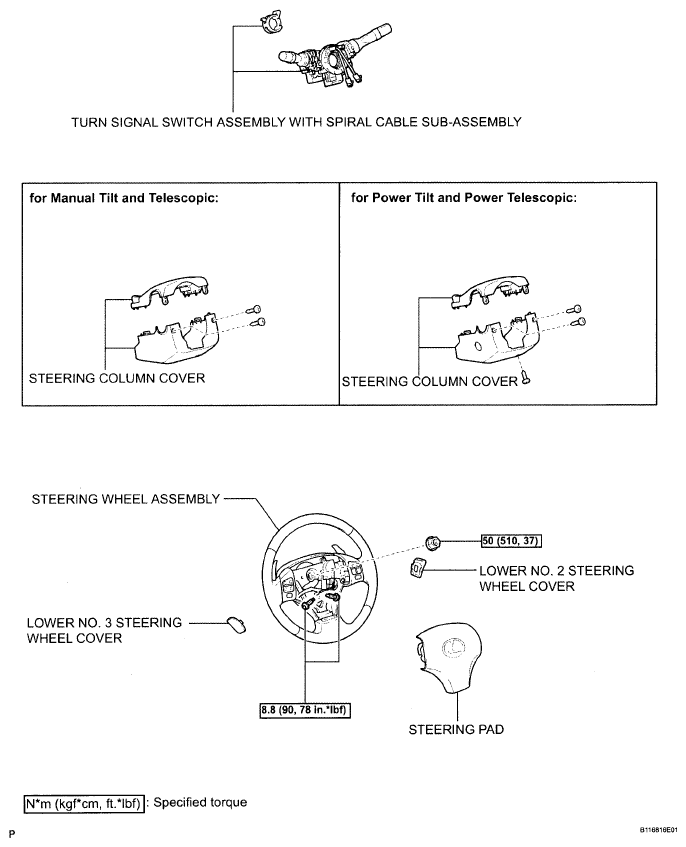

Fig 1: Identifying Roof Headlining Replacement Components (1 Of 18) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

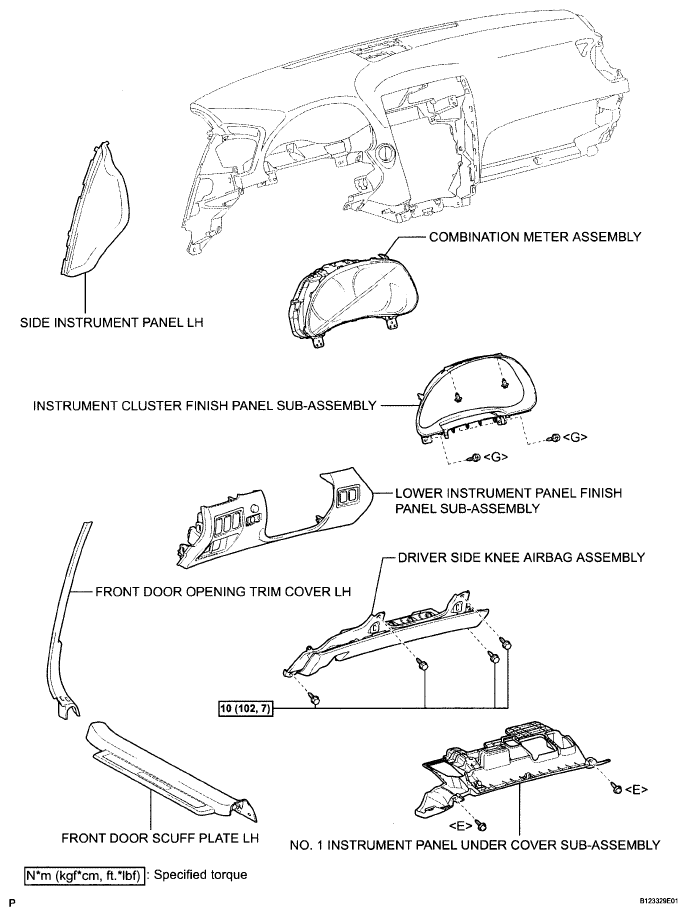

Fig 2: Identifying Roof Headlining Replacement Components (2 Of 18) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

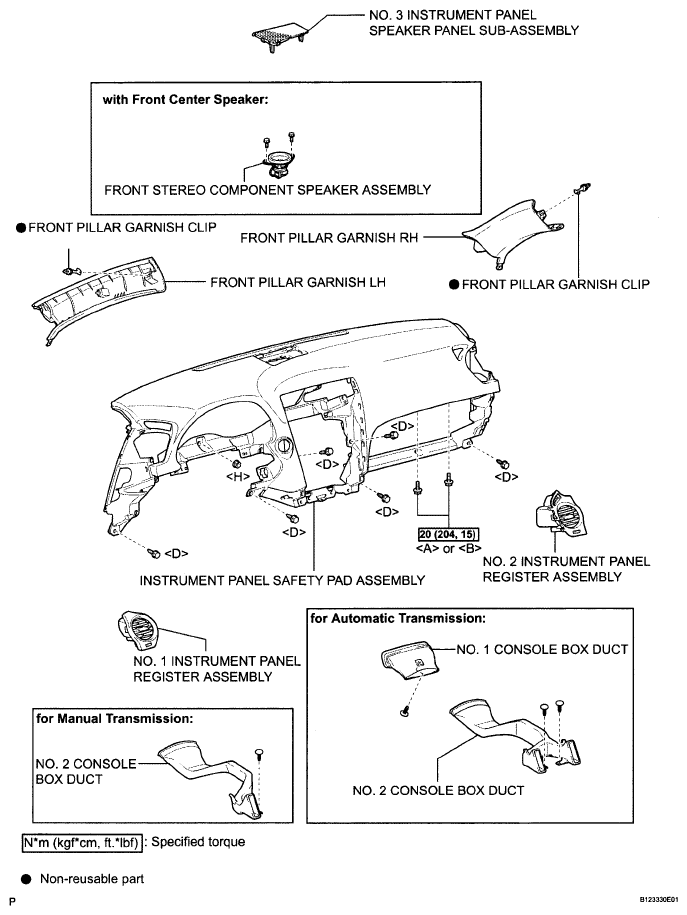

Fig 3: Identifying Roof Headlining Replacement Components (3 Of 18) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

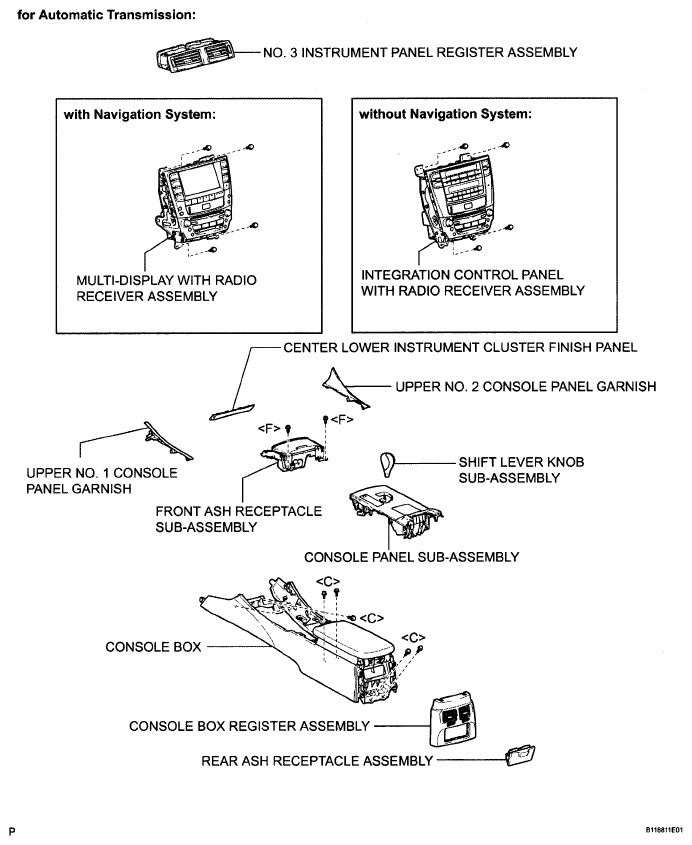

Fig 4: Identifying Roof Headlining Replacement Components (4 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

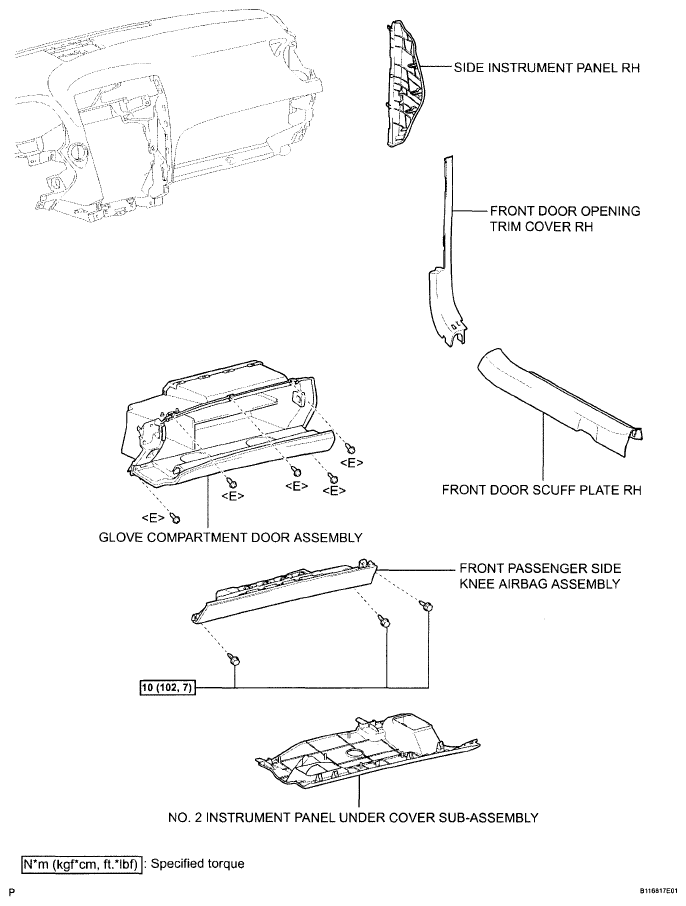

Fig 5: Identifying Roof Headlining Replacement Components (5 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

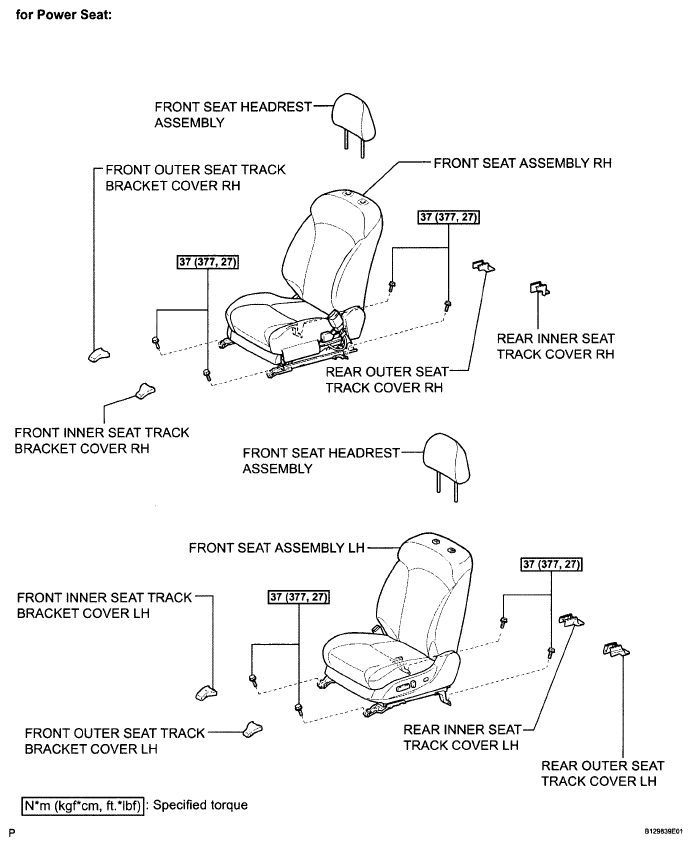

Fig 6: Identifying Roof Headlining Replacement Components (6 Of 18) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

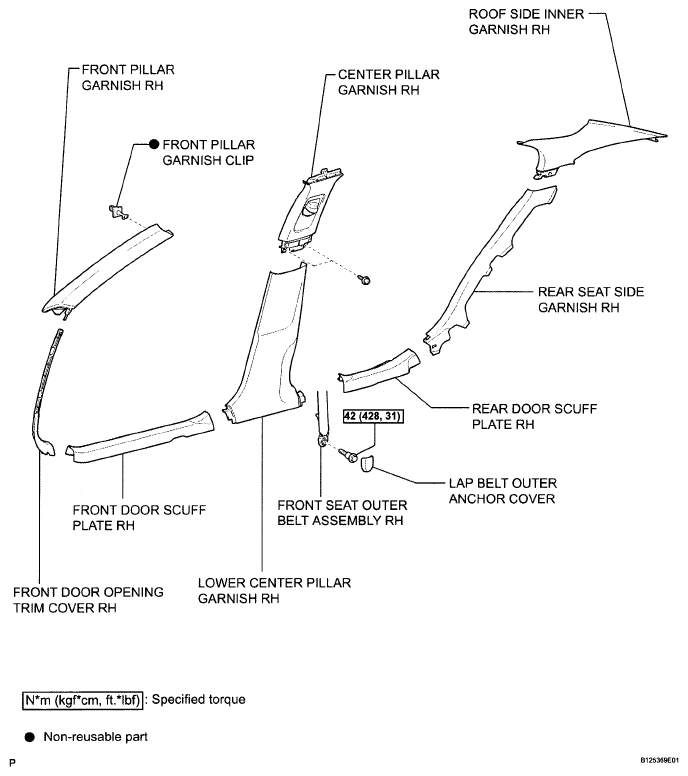

Fig 7: Identifying Roof Headlining Replacement Components (7 Of 18) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

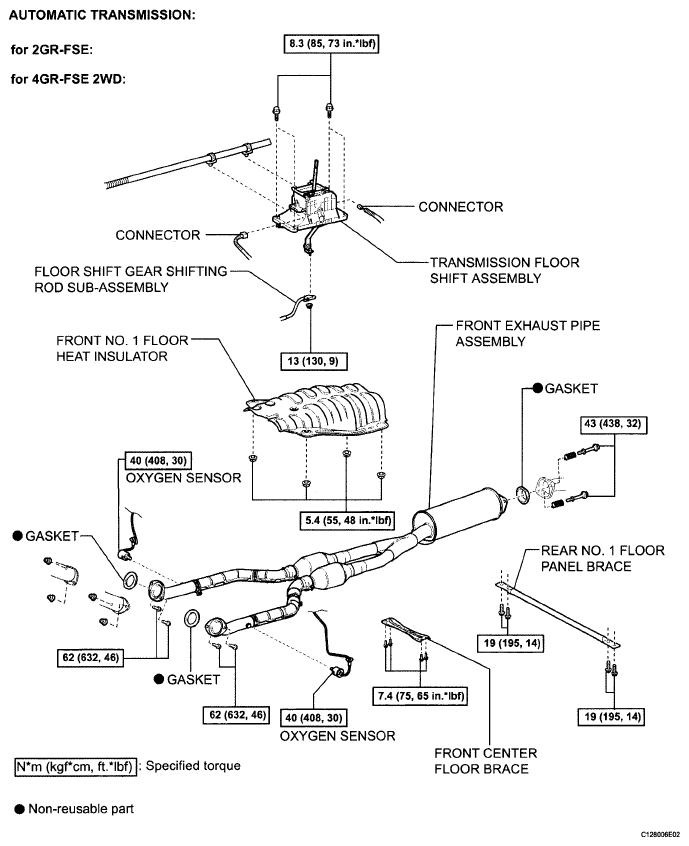

Fig 8: Identifying Roof Headlining Replacement Components (8 Of 18) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Roof Headlining Replacement Components (9 Of 18) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Roof Headlining Replacement Components (10 Of 18) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Identifying Roof Headlining Replacement Components (11 Of 18) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Identifying Roof Headlining Replacement Components (12 Of 18) With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Identifying Roof Headlining Replacement Components (13 Of 18) With Torque Specification

Fig 14: Identifying Roof Headlining Replacement Components (14 Of 18) With Torque Specification

Fig 15: Identifying Roof Headlining Components (15 Of 18)

Fig 16: Identifying Roof Headlining Components (16 Of 18)

Fig 17: Identifying Roof Headlining Components (17 Of 18)

Fig 18: Identifying Roof Headlining Replacement Components (18 Of 18)
