Fuel Injector (For Direct Injection), Intake Manifold: Components

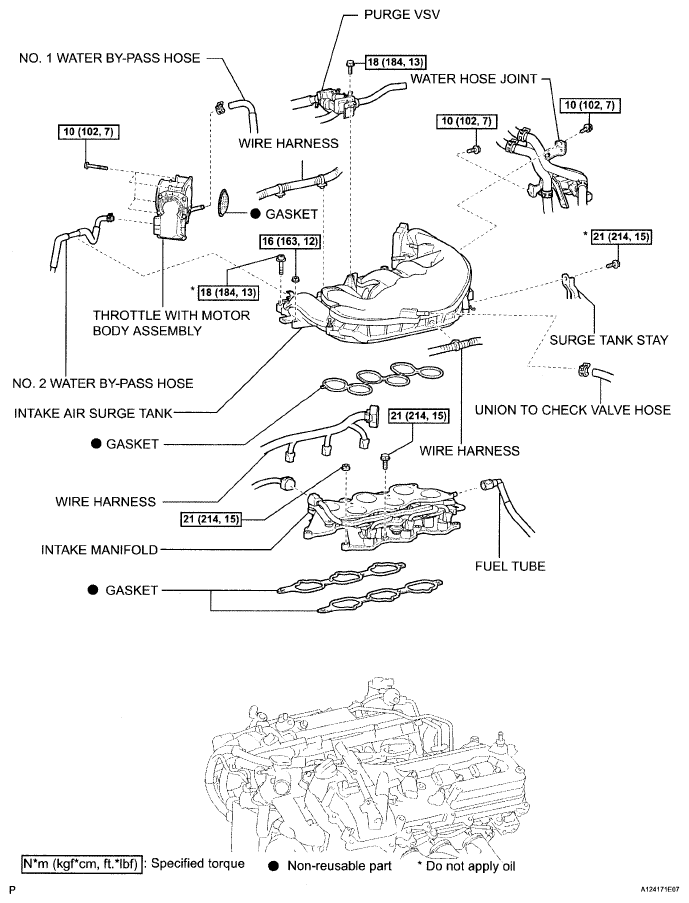

Fig 1: Identifying Fuel Injector (For Direct Injection) Replacement Components (1 Of 4) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

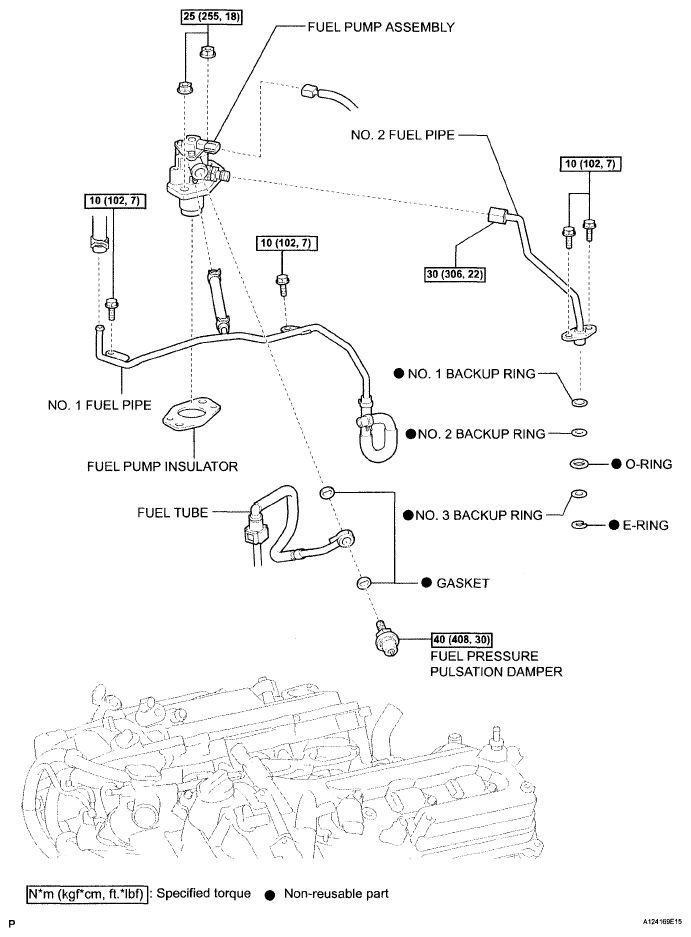

Fig 2: Fuel Pump (For High Pressure) Replacement Components (2 Of 3) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

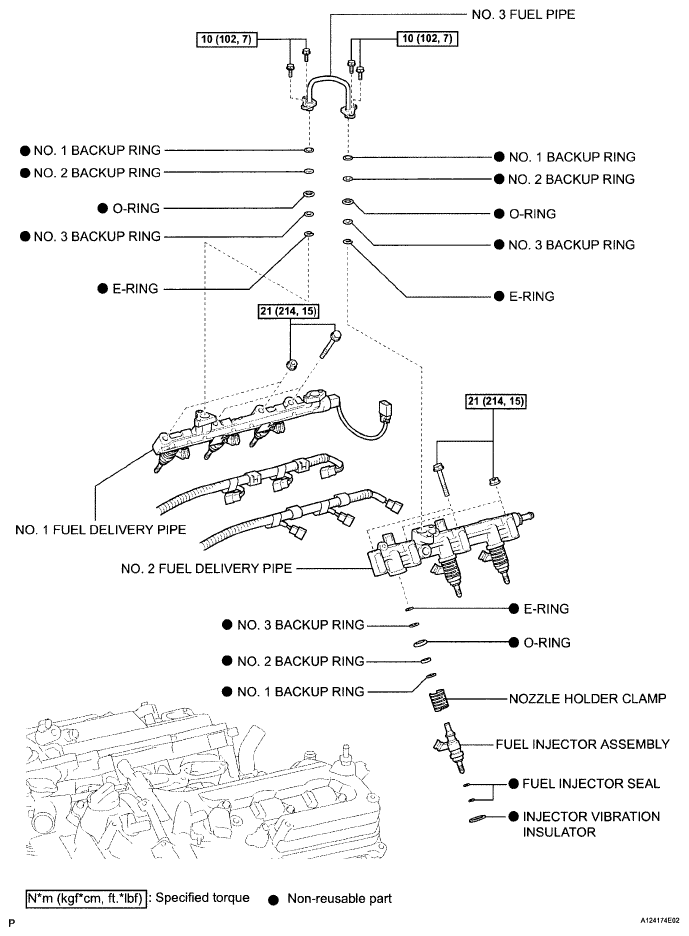

Fig 3: Fuel Injector (For Direct Injection) Replacement Components (3 Of 4) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Fuel Injector (For Direct Injection) Replacement Components (4 Of 4) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
