Section 14 (Cooling): Radiator: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

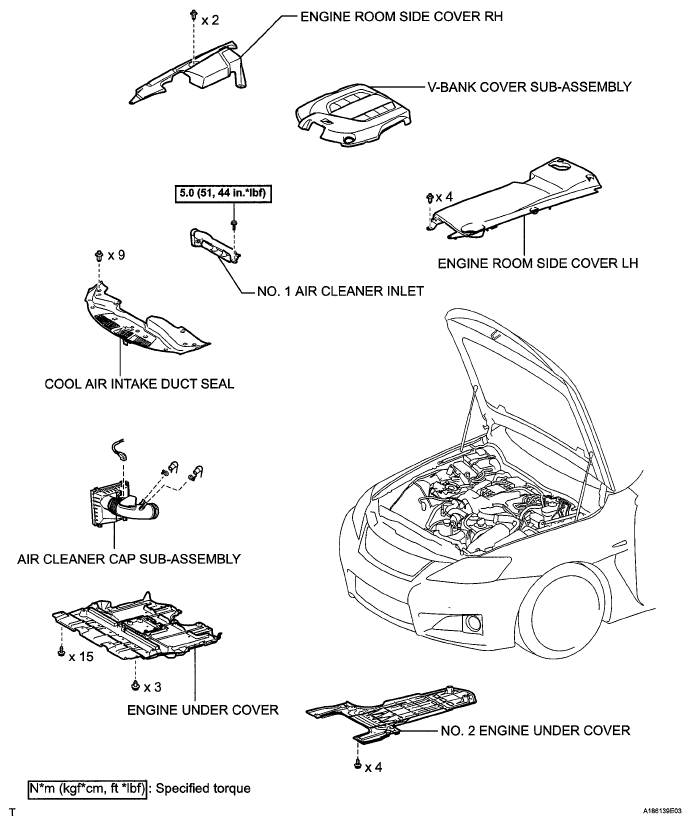

Fig 1: Identifying Radiator Replacement Components With Torque Specification (1 Of 4)
G05750353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

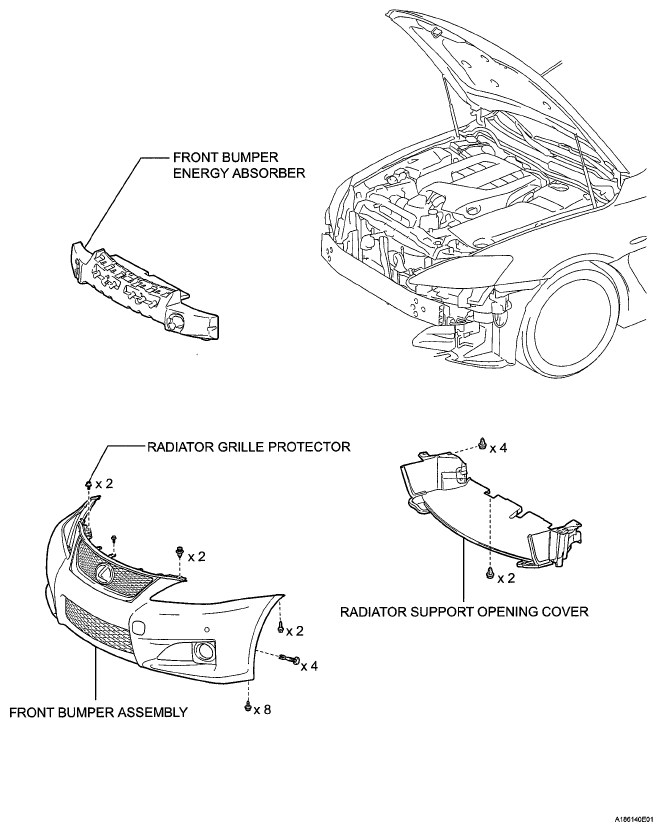

Fig 2: Identifying Radiator Components (2 Of 4)
G05750354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

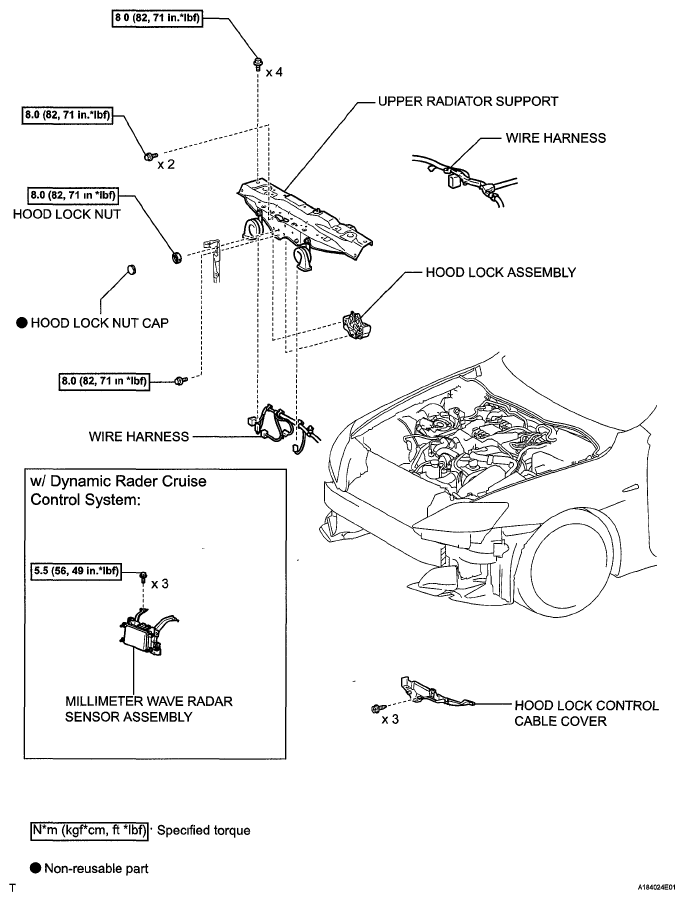

Fig 3: Radiator Replacement Components With Torque Specifications (3 Of 4)
G05750355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

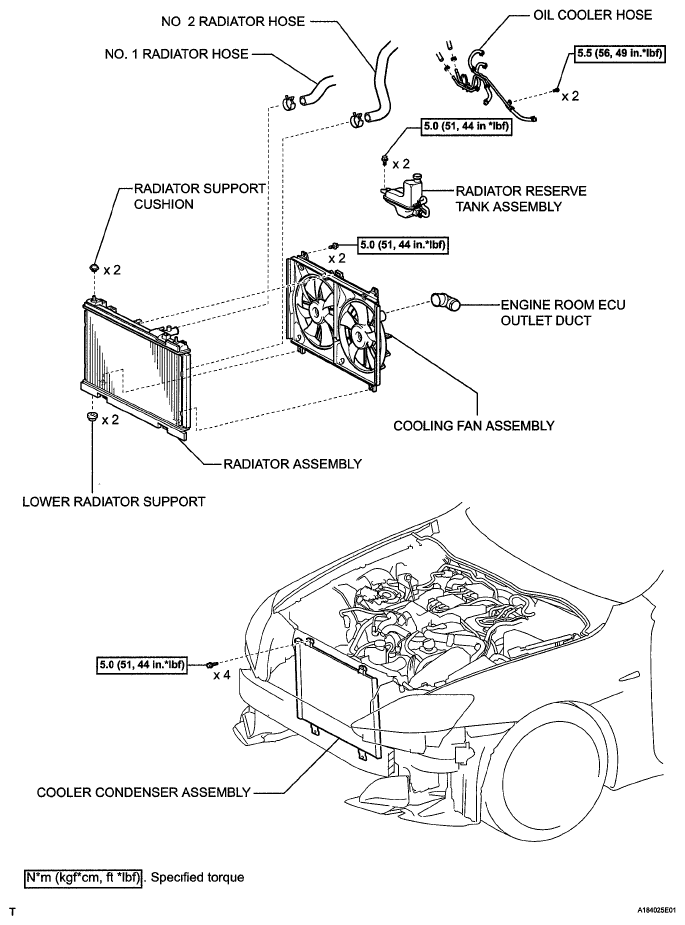

Fig 4: Radiator Replacement Components With Torque Specifications (4 Of 4)
G05750356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
