Section 25 (Starting): Starter: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

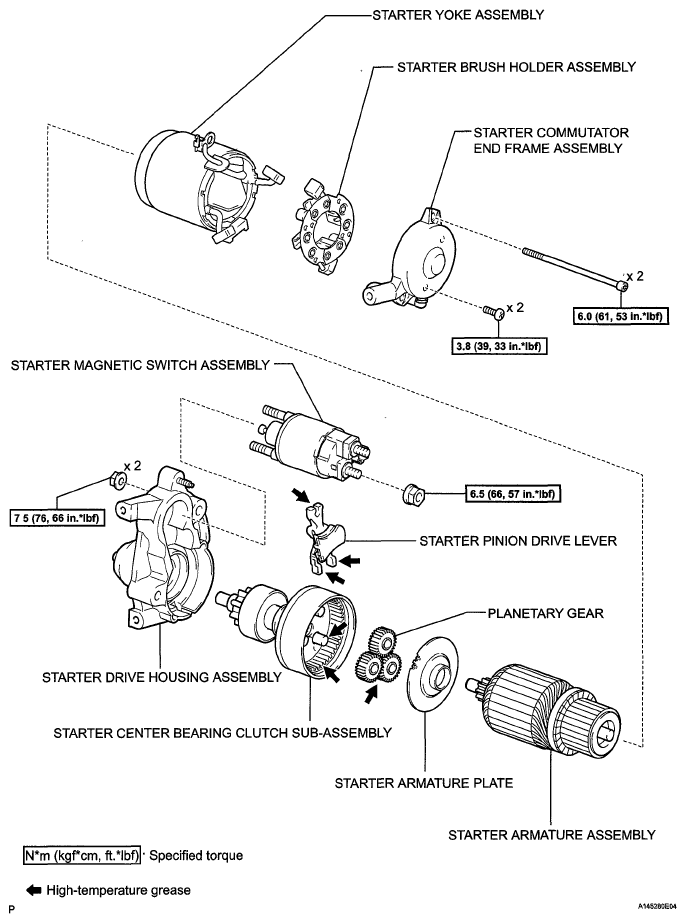

Fig 1: Identifying Starter Replacement Components (1 Of 3) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

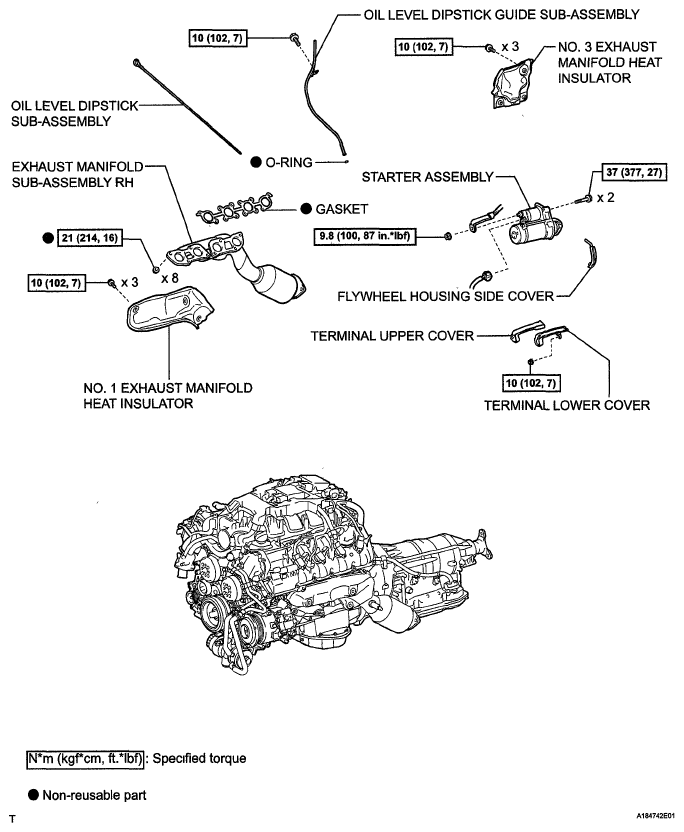

Fig 2: Starter Replacement Components (2 Of 3) with Torque Specifications

Fig 3: Starter Replacement Components (3 Of 3) with Torque Specifications
