Navigation Antenna: Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NAVIGATION ANTENNA
    1. Install the navigation antenna with the 2 screws.
    2. Engage the 2 clamps

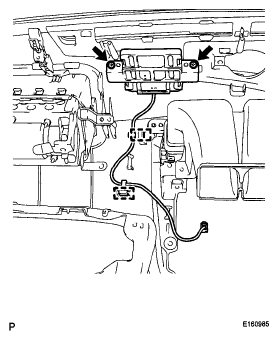

    Fig 1: Locating Navigation Antenna Screws And Clamp
    G05753780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL DEFROSTER NOZZLE ASSEMBLY  (See REASSEMBLY )
  3. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT  (See REASSEMBLY )
  4. INSTALL NO. 3 HEATER TO REGISTER DUCT  (See REASSEMBLY )
  5. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY  (See INSTALLATION )
  6. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY  (See INSTALLATION )
  7. INSTALL NO. 1 CONSOLE BOX DUCT  (See INSTALLATION )
  8. INSTALL NO. 2 CONSOLE BOX DUCT  (See INSTALLATION )
  9. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)  (See INSTALLATION )
  10. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY  (See INSTALLATION )
  11. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  12. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  13. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  14. INSTALL FRONT PILLAR GARNISH RH

    HINT

    Removal procedure of the RH side is the same as that of the LH side.

  15. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  (See INSTALLATION )
  16. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  17. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See INSTALLATION )
  18. INSTALL SIDE INSTRUMENT PANEL RH  (See INSTALLATION )
  19. INSTALL FRONT DOOR OPENING TRIM COVER RH  (See INSTALLATION )
  20. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT

    Removal procedure of the RH side is the same as that of the LH side

  21. INSTALL COMBINATION METER ASSEMBLY  (See INSTALLATION )
  22. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  23. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  24. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  25. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See INSTALLATION )
  26. INSTALL SIDE INSTRUMENT PANEL LH  (See INSTALLATION )
  27. INSTALL FRONT DOOR OPENING TRIM COVER LH  (See INSTALLATION )
  28. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  29. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  30. INSTALL STEERING COLUMN COVER  (See INSTALLATION )
  31. ADJUST SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  32. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  33. INSTALL STEERING PAD  (See INSTALLATION )
  34. INSTALL LOWER NO. 3 STEERING WHEEL COVER  (See INSTALLATION )
  35. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  36. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY  (See INSTALLATION )
  37. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  (See INSTALLATION )
  38. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  39. INSTALL CONSOLE BOX  (See INSTALLATION )
  40. INSTALL CONSOLE BOX REGISTER ASSEMBLY  (See INSTALLATION )
  41. INSTALL REAR ASH RECEPTACLE ASSEMBLY  (See INSTALLATION )
  42. INSTALL FRONT ASH RECEPTACLE ASSEMBLY  (See INSTALLATION )
  43. INSTALL CONSOLE PANEL SUB-ASSEMBLY  (See INSTALLATION )
  44. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH  (See INSTALLATION )
  45. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH  (See INSTALLATION )
  46. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  (See INSTALLATION )
  47. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  48. INSPECT STEERING PAD  (See INSTALLATION )
  49. INSPECT SRS WARNING LIGHT

    (See INSTALLATION )
