Engine Hood Courtesy Switch: Components

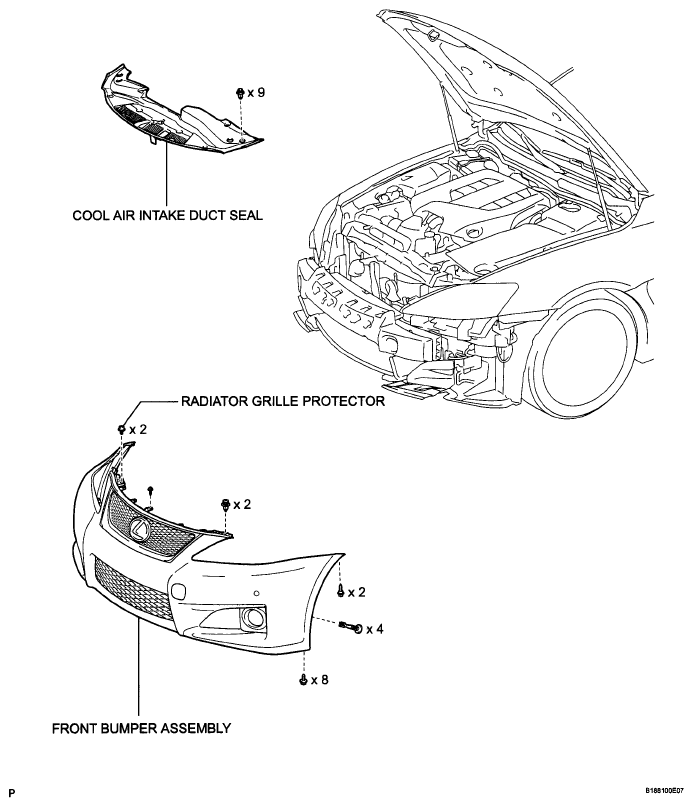

Fig 1: Engine Hood Courtesy Switch Replacement Components With Torque Specifications (1 Of 2)
G05754578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

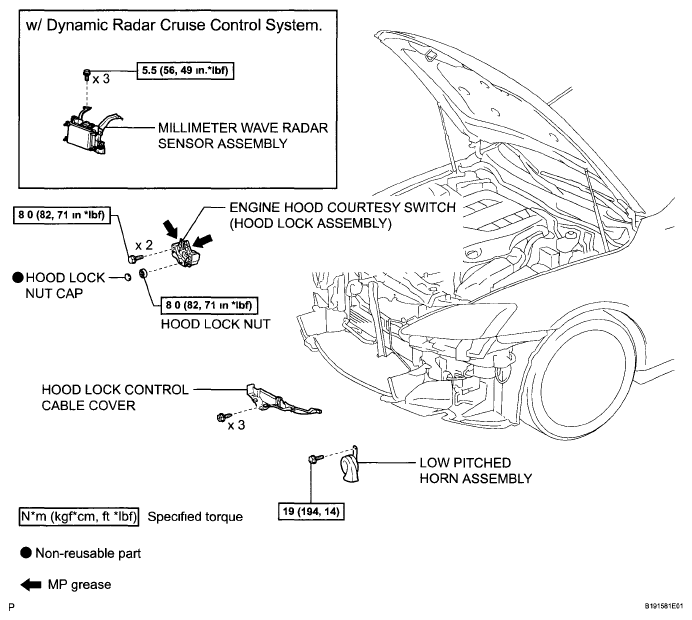

Fig 2: Engine Hood Courtesy Switch Replacement Components With Torque Specifications (2 Of 2)
G05754579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
