Security Horn Assembly: Components

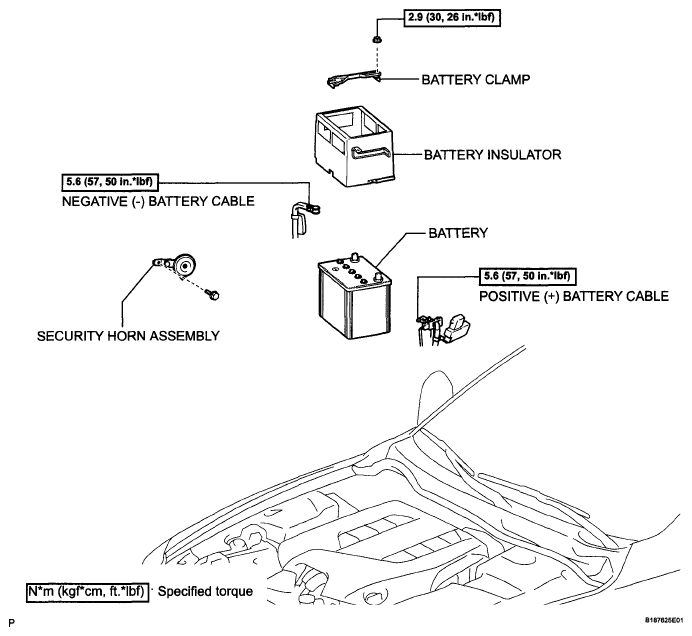

Fig 1: Security Horn Replacement Components With Torque Specifications
G05754581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
