Driver Side ECU Power Source Circuit: Wiring Diagram

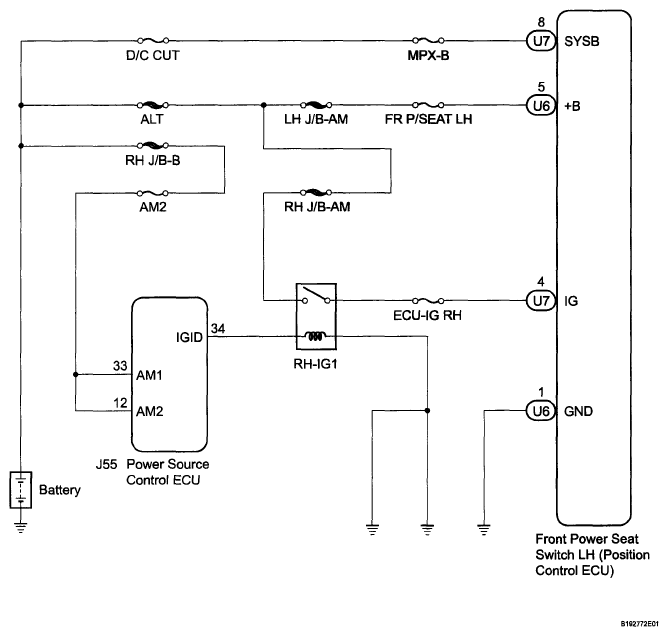

Fig 1: Driver Side ECU Power Source Wiring Diagram
G05754860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
