Front Seat Assembly: Components

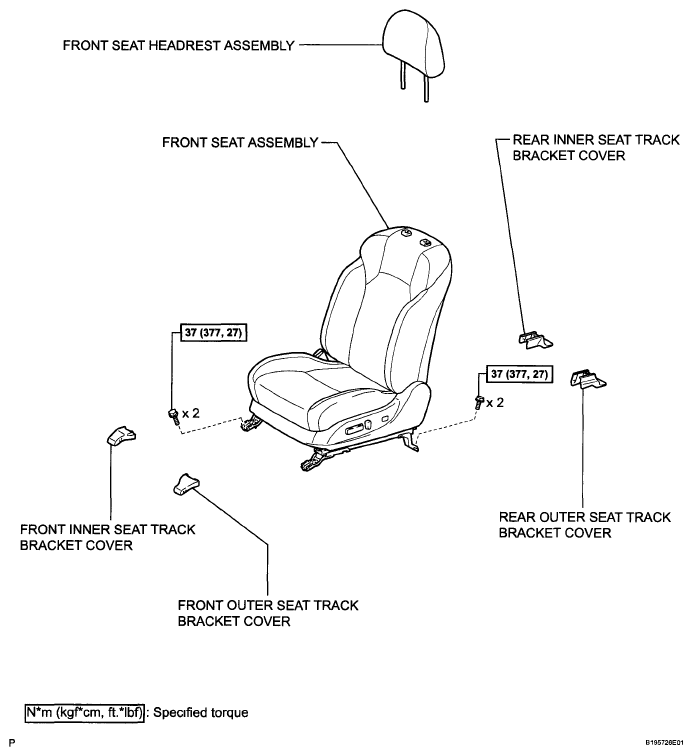

Fig 1: Front Seat Assembly Replacement Components (1 Of 5) With Torque Specifications
G05754899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

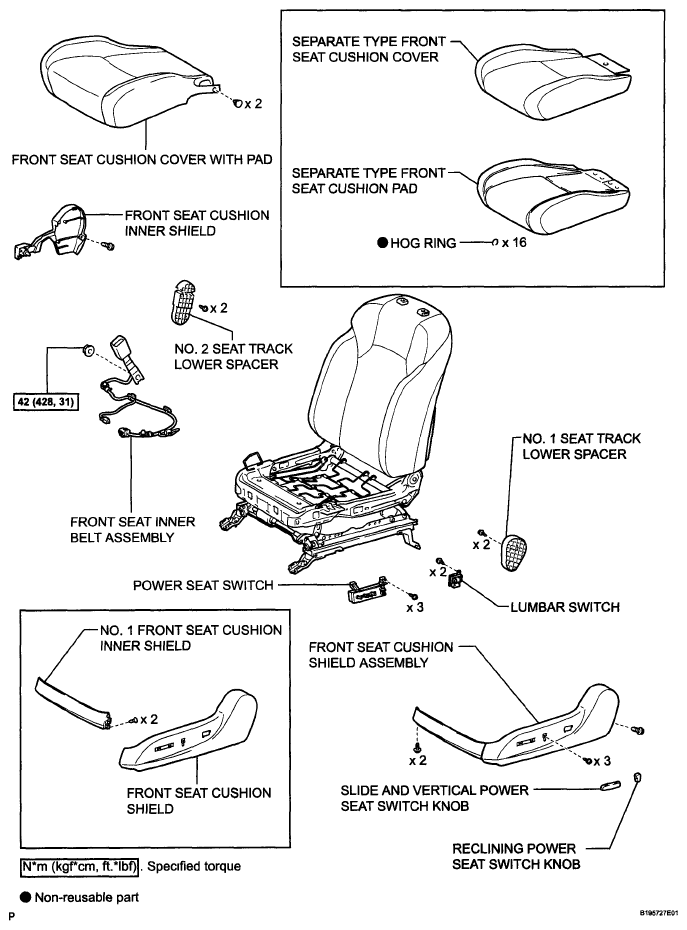

Fig 2: Front Seat Assembly Replacement Components (2 Of 5) With Torque Specification
G05754900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

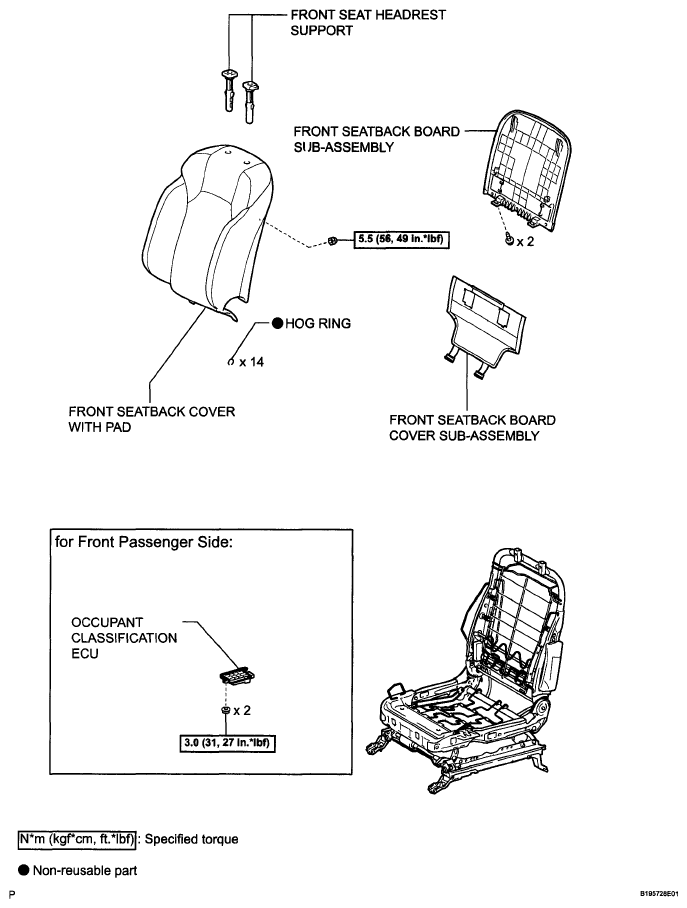

Fig 3: Front Seat Assembly Replacement Components (3 Of 5) With Torque Specifications
G05754901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

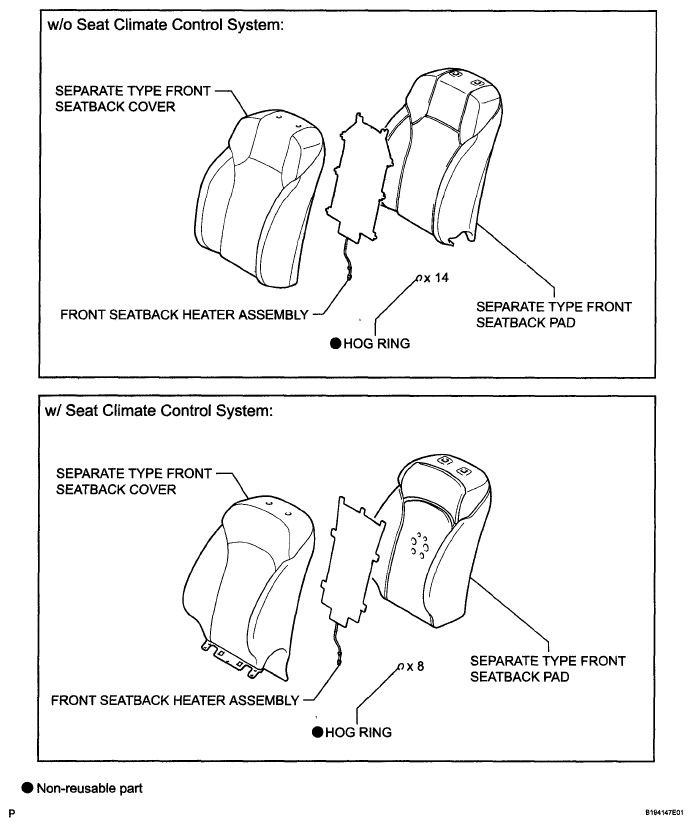

Fig 4: Identifying Front Seat Assembly Components (4 Of 5)
G05754902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

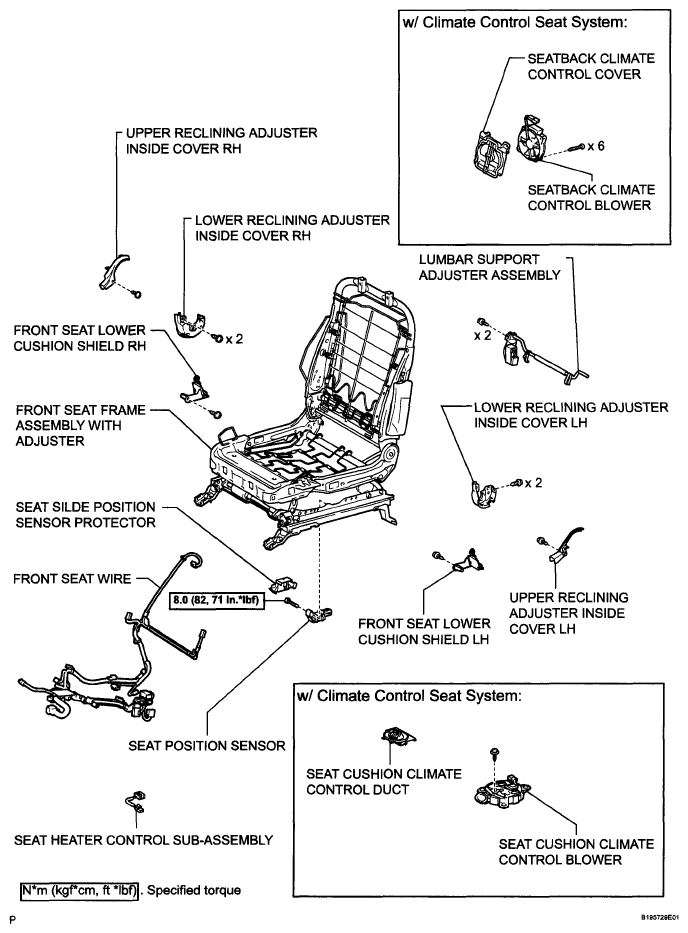

Fig 5: Front Seat Assembly Replacement Components (5 Of 5) With Torque Specifications
G05754903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
