Front Seatback Heater: Components

Fig 1: Front Seat Assembly Replacement Components (1 Of 5) With Torque Specifications
G05754899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

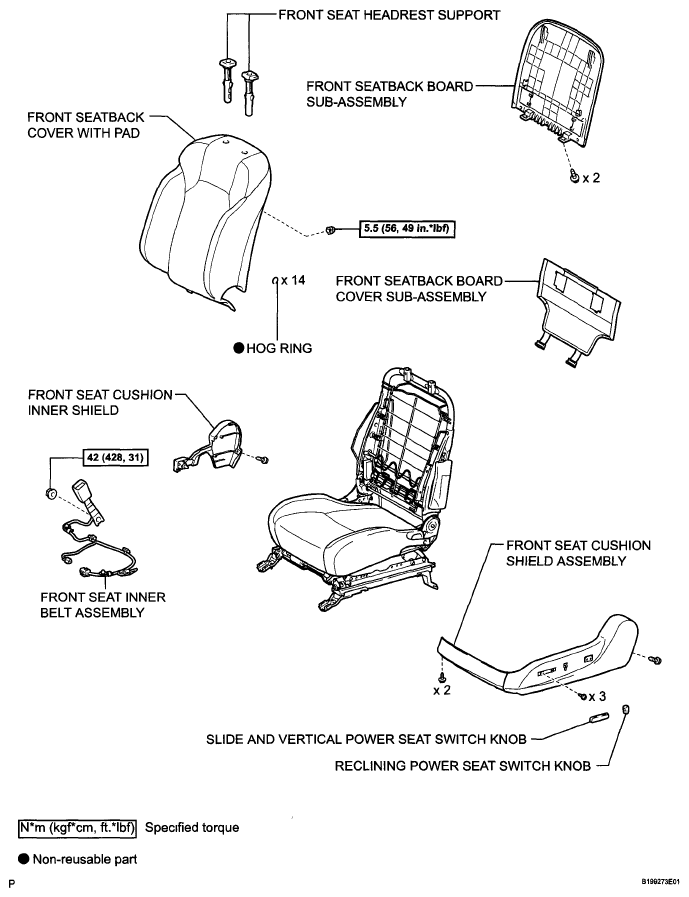

Fig 2: Identifying Front Seatback Heater Replacement Components (2 Of 3) With Torque Specifications
G05755075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Front Seatback Heater Components (3 Of 3)
G05754902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
