Water Pump: Components

Fig 1: Water Pump Replacement Components With Torque Specifications (1 Of 2)
G05750314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

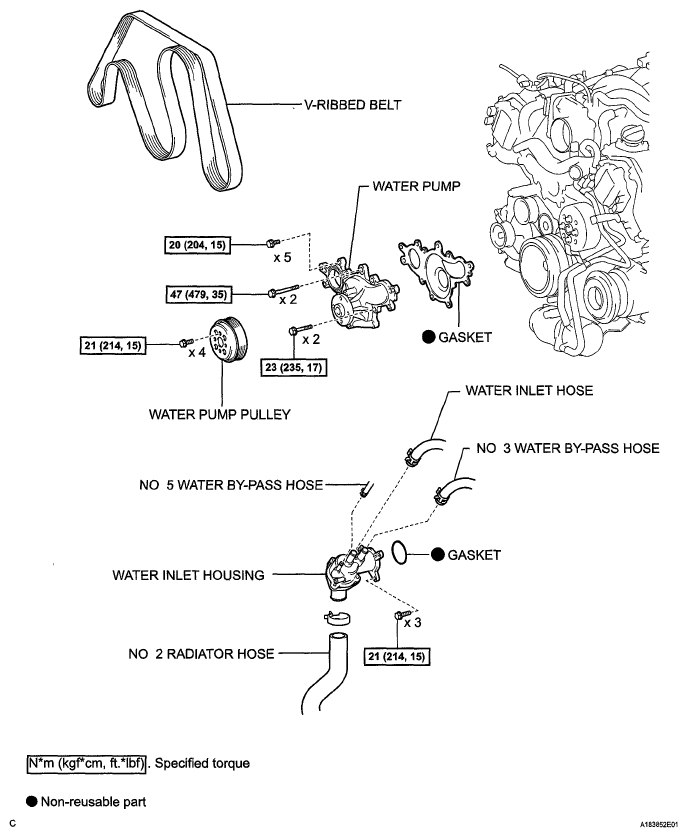

Fig 2: Water Pump Replacement Components With Torque Specifications (2 Of 2)
G05750315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
