Installation








PRE-COLLISION: PRE-COLLISION BRAKE CANCEL SWITCH: INSTALLATION

INSTALLATION

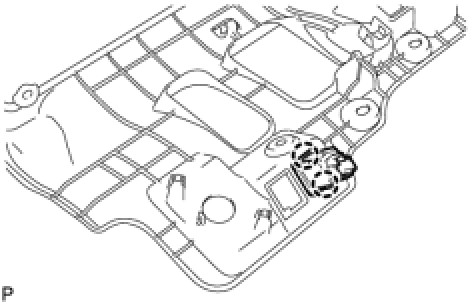

1. INSTALL PRE-COLLISION BRAKE CANCEL SWITCH ASSEMBLY
(a) Attach the 2 claws to install the switch.
2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
