Installation

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSTALLATION

INSTALLATION

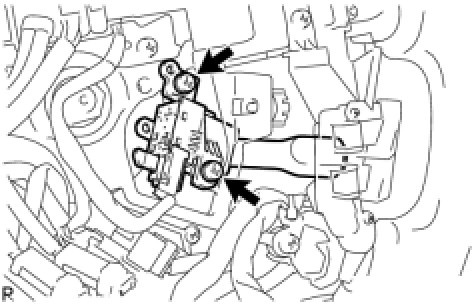

1. INSTALL CRUISE CONTROL MAIN SWITCH ASSEMBLY






(a) Install the switch.






(b) Install the 2 screws.






(c) Connect the connector and clamp.
2. INSTALL STEERING PAD Installation

3. INSTALL SWITCH AND VOLUME CASE Installation

4. INSTALL NO. 2 STEERING WHEEL COVER LOWER Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. REMOVE COWL TOP VENTILATOR LOUVER LH Installation

7. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

8. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
