Installation

CRUISE CONTROL: OBJECT RECOGNITION CAMERA: INSTALLATION

INSTALLATION





1. INSTALL OBJECT RECOGNITION CAMERA

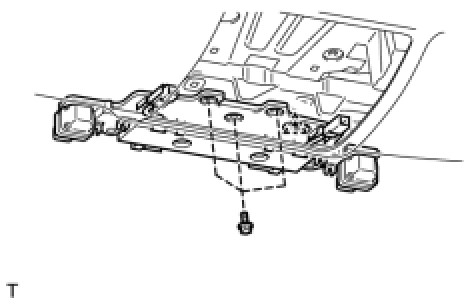

(a) Install the camera with the 3 bolts and clip.
(b) Connect the wire harness.
(c) Connect the camera connector.
2. INSTALL REAR INNER VIEW MIRROR ASSEMBLY Installation

3. INSTALL RAIN SENSOR COVER Installation

4. INSTALL MAP LIGHT ASSEMBLY Installation

5. ADJUST OBJECT RECOGNITION CAMERA Adjustments
