1UR-FSE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSTALLATION

INSTALLATION





1. INSTALL CRANKSHAFT POSITION SENSOR

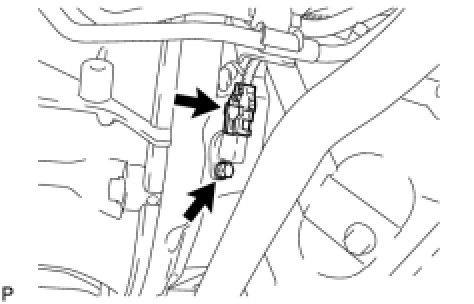

(a) Install the crankshaft position sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the crankshaft position sensor connector.
2. INSTALL NO. 2 ENGINE UNDER COVER Installation
