Climate Control Seat System

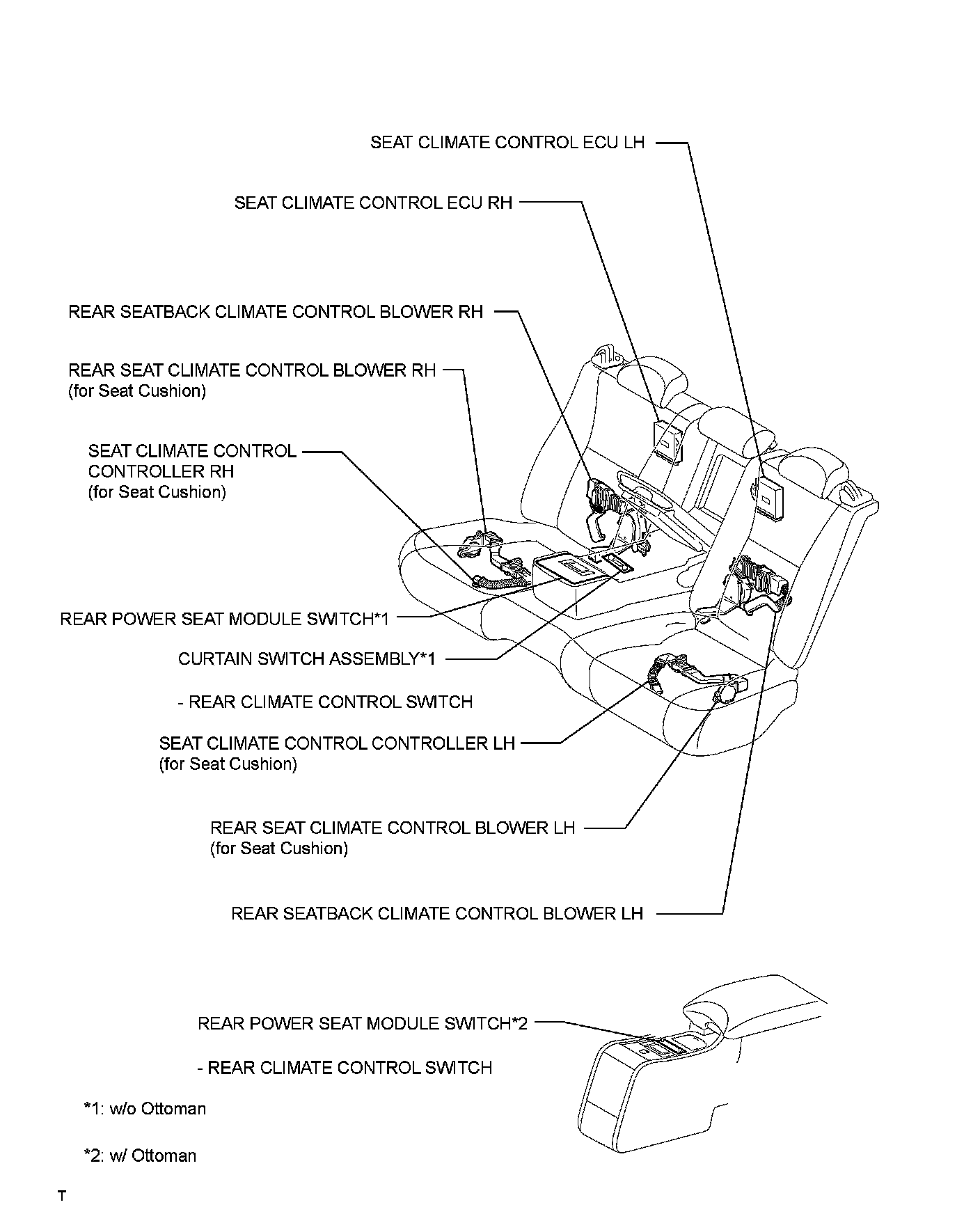

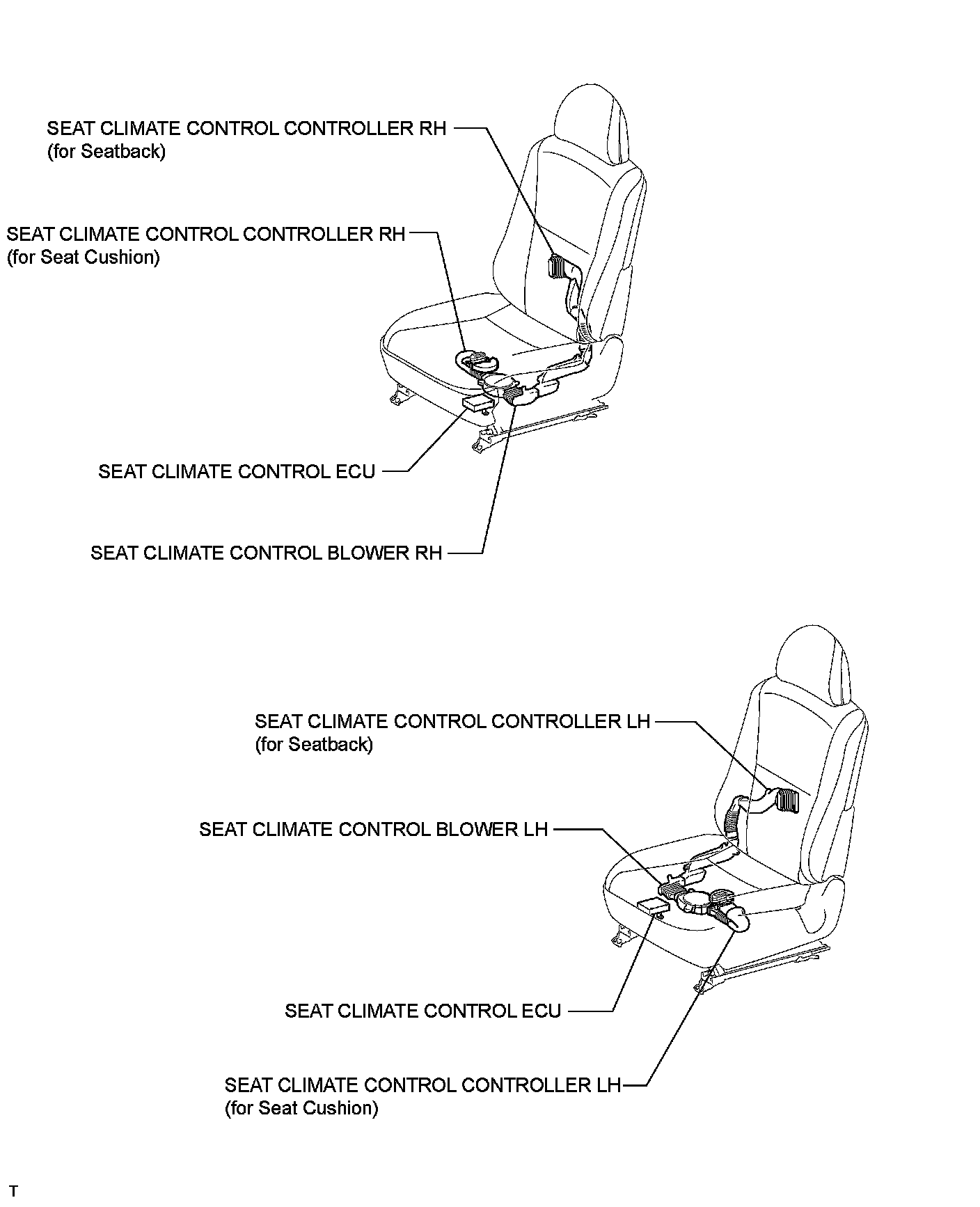

SEAT: CLIMATE CONTROL SEAT SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
