Alignment








SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

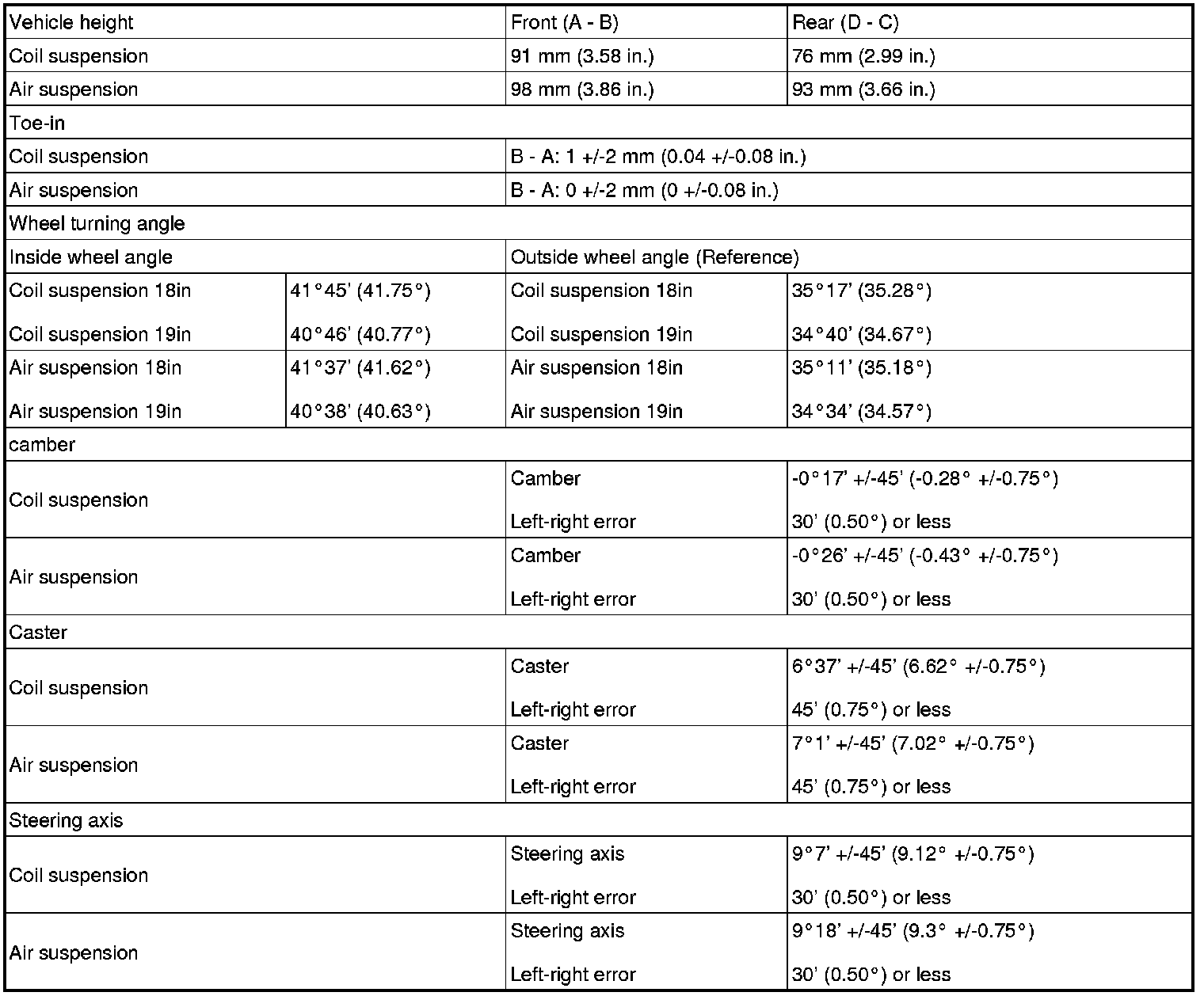

SERVICE DATA

Front wheel alignment





Rear wheel alignment





Front suspension





Rear suspension
