Inspection Procedure

1. When the master switch assembly's door control switch is operated, check that the locked doors unlock.

   Result

   RESULT REFERENCE



   Result	Proceed to
   Door locks operate normally	OK
   Door locks do not operate normally	NG

NG: GO TO POWER DOOR LOCK CONTROL SYSTEM

OK: Go to next step

1. Using the Techstream, read the Data List.

   Driver Door (Front door ECU LH)

   MEASUREMENT ITEM/DISPLAY CHART



   Tester Display	Measurement Item/Display	Normal Condition
   Outside Handle Trigger SW	Driver side door outside handle lock switch / ON or OFF	ON: Driver side door outside handle lock switch is pushed OFF: Driver side door outside handle lock switch is not pushed
   Entry Sensor	Driver side door touch sensor / ON or OFF	ON: Driver side door sensor is touched OFF: Driver side door sensor is not touched

   Result

   RESULT REFERENCE



   Result	Proceed to
   Display does not change according to manual operation	A
   Display changes according to manual operation	B

B: Go to step  9

A: Go to next step

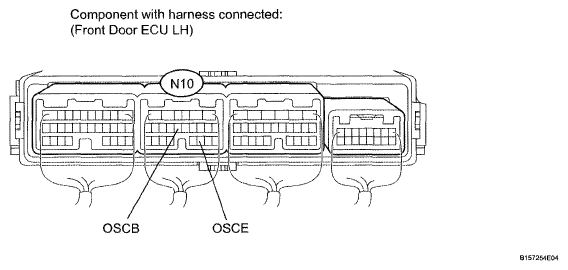

Fig 1: Identifying N10 ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   STANDARD VOLTAGE



   Tester Connection	Condition	Specified Condition
   N10-12 (OSCB) - N10-19 (OSCE)	Always	11 to 14 V

NG: REPLACE FRONT DOOR ECU LH  (See INSTALLATION )

OK: Go to next step

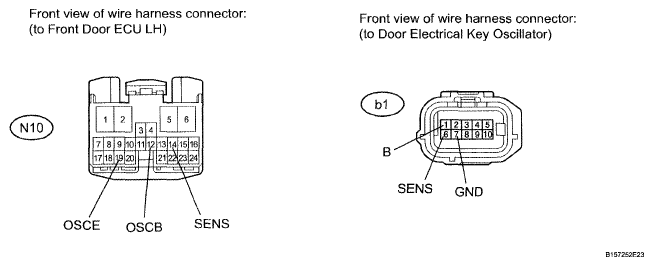

Fig 2: Identifying b1 Oscillator Connector And N10 ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the b1 oscillator connector.
2. Disconnect the N10 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   b1-1 (B) - N10-12 (OSCB)	Always	Below 1 Ω
   b1-6 (SENS) - N10-14 (SENS)	Always	Below 1 Ω
   b1-7 (GND) - N10-19 (OSCE)	Always	Below 1 Ω
   b1-1 (B) - Body ground	Always	10 kΩ or higher
   b1-6 (SENS) - Body ground	Always	10 kΩ or higher
   b1-7 (GND) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

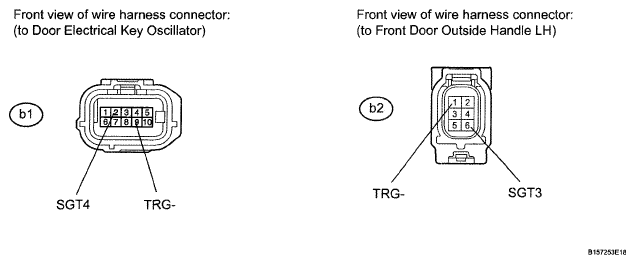

Fig 3: Identifying b1 Oscillator Connector And b2 Handle Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the b1 oscillator connector.
2. Disconnect the b2 handle connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   b1-2 (SGT4) - b2-6 (SGT3)	Always	Below 1 Ω
   b1-9 (TRG-) - b2-1 (TRG-)	Always	Below 1 Ω
   b1-2 (SGT4) - Body ground	Always	10 kΩ or higher
   b1-9 (TRG-) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

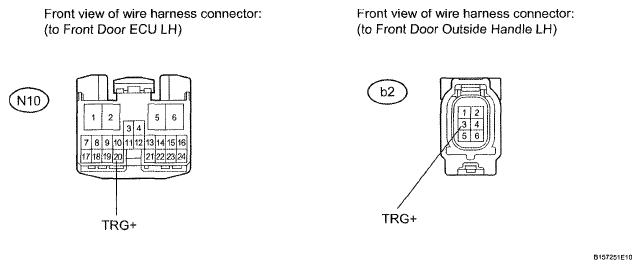

Fig 4: Identifying N10 ECU Connector And b2 Handle Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the N10 ECU connector.
2. Disconnect the b2 handle connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   N10-20 (TRG+) - b2-3 (TRG+)	Always	Below 1 Ω
   N10-20 (TRG+) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the door electrical key oscillator with a new one or normally functioning one (see INSTALLATION ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: Go to step 8

OK: END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

1. Replace the front door outside handle LH with a new one or normally functioning one (see REMOVAL  ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: REPLACE FRONT DOOR ECU LH  (See INSTALLATION )

OK: END (FRONT DOOR OUTSIDE HANDLE LH IS DEFECTIVE)

1. Bring the electrical key transmitter near the driver door outside handle, and perform a driver door entry lock and unlock operation check.
   NOTE: If the key is brought within 0.2 m (0.6 ft.) of the door handle, communication is not possible.
   Fig 5: Identifying Distance Between Key And Door Handle 0.3 m (0.9 ft.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   • When the electrical key transmitter is brought near the driver door outside handle, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the inspection result is that the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

   Result

   RESULT REFERENCE



   Result	Proceed to
   Operation check fails	A
   Operation check is normal	B

B: AFFECTED BY WAVE INTERFERENCE

A: Go to next step

1. Diagnostic mode inspection (driver door outside oscillator)
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check /Overhead + Driver Side.
   5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
      Fig 6: Identifying Distance Between Key And Door Handle 0.7 To 1.0 m (2.3 To 3.3 ft.)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the buzzer sounds, it can be determined that the driver seat outside transmitter is operating normally.

      OK: Wireless door lock buzzer sounds

NG: Go to step 11

OK: END (CERTIFICATION ECU IS DEFECTIVE)

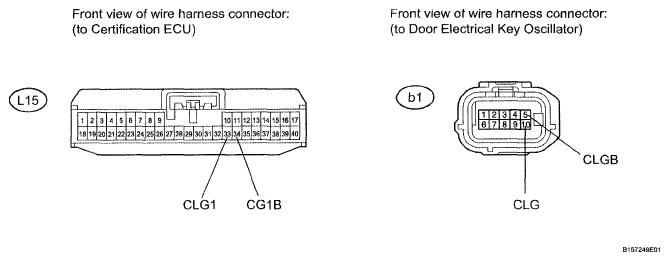

Fig 7: Identifying L15 ECU Connector And b1 Oscillator Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the L15 ECU connector.
2. Disconnect the b1 oscillator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   L15-34 (CG1B) - b1-5 (CLGB)	Always	Below 1 Ω
   L15-33 (CLG1) - b1-10 (CLG)	Always	Below 1 Ω
   L15-34 (CG1B) - Body ground	Always	10 kΩ or higher
   L15-33 (CLG1) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

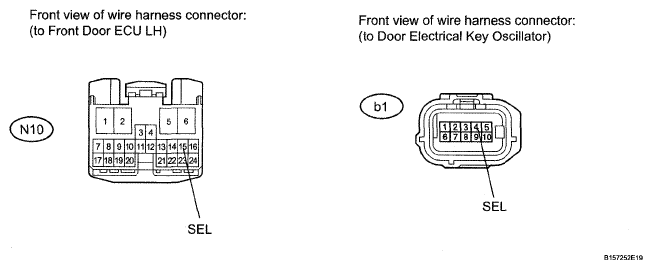

Fig 8: Identifying N10 ECU Connector And b1 Oscillator Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the N10 ECU connector.
2. Disconnect the b1 oscillator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   N10-15 (SEL) - b1-4 (SEL)	Always	Below 1 Ω
   N10-15 (SEL) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

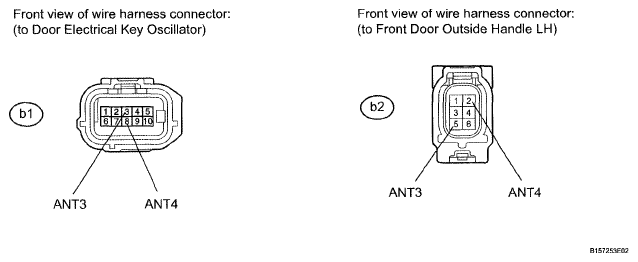

Fig 9: Identifying b1 Oscillator Connector And b2 Handle Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the b1 oscillator connector.
2. Disconnect the b2 handle connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   b1-3 (ANT3) - b2-5 (ANT3)	Always	Below 1 Ω
   b1-8 (ANT4) - b2-2 (ANT4)	Always	Below 1 Ω
   b1-3 (ANT3) - Body ground	Always	10 kΩ or higher
   b1-8 (ANT4) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the door electrical key oscillator with a new one or normally functioning one (see INSTALLATION ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: Go to step 15

OK: END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

1. Replace the front door outside handle LH with a new one or normally functioning one (see REMOVAL  ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: Go to step 16

OK: END (FRONT DOOR OUTSIDE HANDLE LH IS DEFECTIVE)

1. Replace the front door ECU LH with a new one or normally functioning one (see INSTALLATION ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: REPLACE CERTIFICATION ECU

OK: END (FRONT DOOR ECU LH IS DEFECTIVE)
