Inspection Procedure

1. Check that the wireless door lock control functions operate with a transmitter (see OPERATION CHECK  ).

   Result:

   RESULT REFERENCE



   Result	Proceed to
   Wireless door lock control functions operate normally but turn signal light answer-back does not occur	A
   Wireless door lock control functions operate normally but wireless door lock buzzer answer-back does not occur	B
   Wireless door lock control functions do not operate	C

B: Go to step  4

C: Go to  "ONLY WIRELESS CONTROL FUNCTION IS INOPERATIVE "

A: Go to Next Step

1. Check that the turn signal lights flash continuously when the hazard warning signal switch is pressed.

   OK: Hazard warning lights flash continuously.

NG: Go to LIGHTING SYSTEM  (See PROBLEM SYMPTOMS TABLE )

OK: Go to Next Step

1. Operate the Techstream according to the steps on the display and select "Active Test".

   Main Body:

   ACTIVE TEST CHART



   Item	Test Part	Control Range
   Hazard	Turn signal flasher relay	ON or OFF

   OK: Hazard warning lights condition can be switched by "Active Test".

NG: Go to LIGHTING SYSTEM  (See PROBLEM SYMPTOMS TABLE )

OK: REPLACE MAIN BODY ECU (DRIVER SIDE JUNCTION BLOCK)

1. Disconnect the L16 ECU connector.
2. Disconnect the L30 controller connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   L16-18 (BZR3) - L30-1 (B)	Always	Below 1 Ω
   L16-19 (BZRG) - L30-2 (L)
   L16-18 (BZR3) or L30-1 (B) - Body ground	Always	10 kΩ or higher
   L16-19 (BZRG) or L30-2 (L) - Body ground

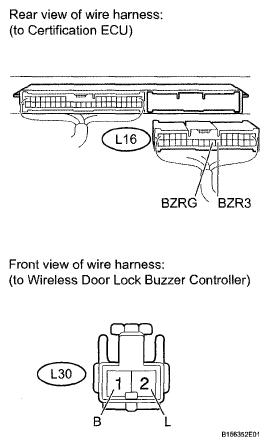

   Fig 1: Identifying L16 ECU Connector And L30 Controller Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

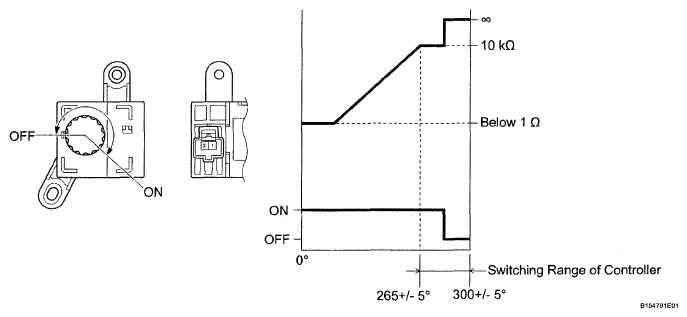

Fig 2: Inspecting Wireless Door Lock Buzzer Controller

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the buzzer controller (see REMOVAL  ).
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Switch Condition	Specified Condition
   1 - 2	ON → OFF	See Fig 2

NG: REPLACE WIRELESS DOOR LOCK BUZZER CONTROLLER  (See REMOVAL  )

OK: Go to Next Step

1. Disconnect the A52 ECU connector.
2. Disconnect the A28 buzzer connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   A52-14 (BZR) - A28-1	Always	Below 1 Ω
   A28-2 - Body ground
   A52-14 (BZR) - A28-1 - Body ground	Always	10 kΩ or higher

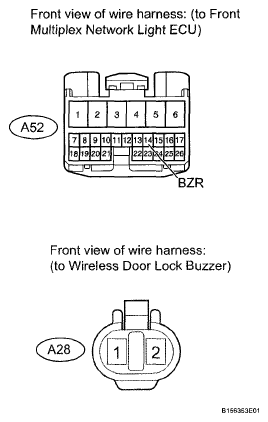

   Fig 3: Identifying A52 ECU Connector And A28 Buzzer Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

1. Temporarily replace the wireless door lock buzzer with a new one (see REMOVAL  ).
2. Check that the wireless door lock buzzer sounds by using the transmitter LOCK/UNLOCK switch.

   OK: Wireless door lock buzzer sounds.

NG: Go to step 8

OK: END (WIRELESS DOOR LOCK BUZZER IS DEFECTIVE)

1. Temporarily replace the front multiplex network light ECU (front controller) with a new one.
2. Check that the wireless door lock buzzer sounds by using transmitter LOCK/UNLOCK switch.

   OK: Wireless door lock buzzer sounds.

NG: REPLACE CERTIFICATION ECU

OK: END (FRONT MULTIPLEX NETWORK LIGHT ECU IS DEFECTIVE)
