Only Wireless Control Function is Inoperative: Wiring Diagram

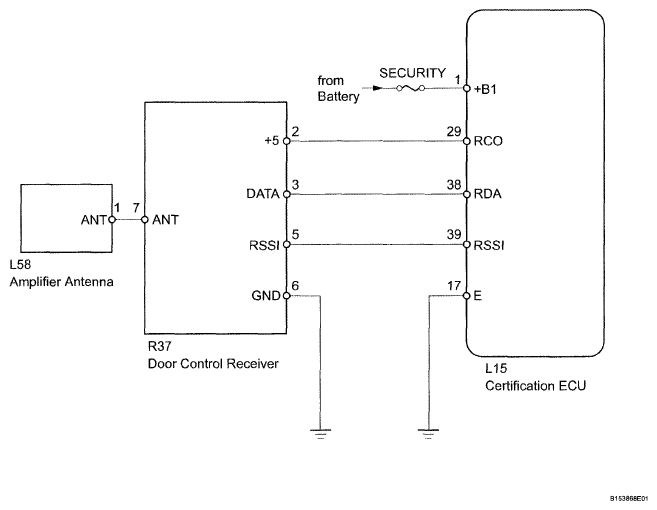

Fig 1: Wireless Control Function - Wiring Diagram
G04951562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
