Parts Location

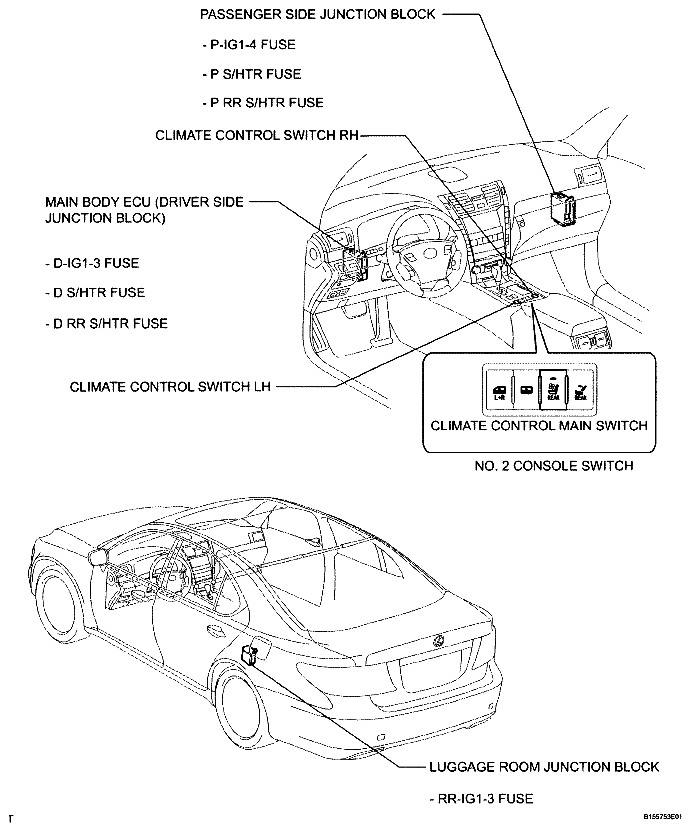

Fig 1: Identifying Climate Control Seat System Parts Location
G04952597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

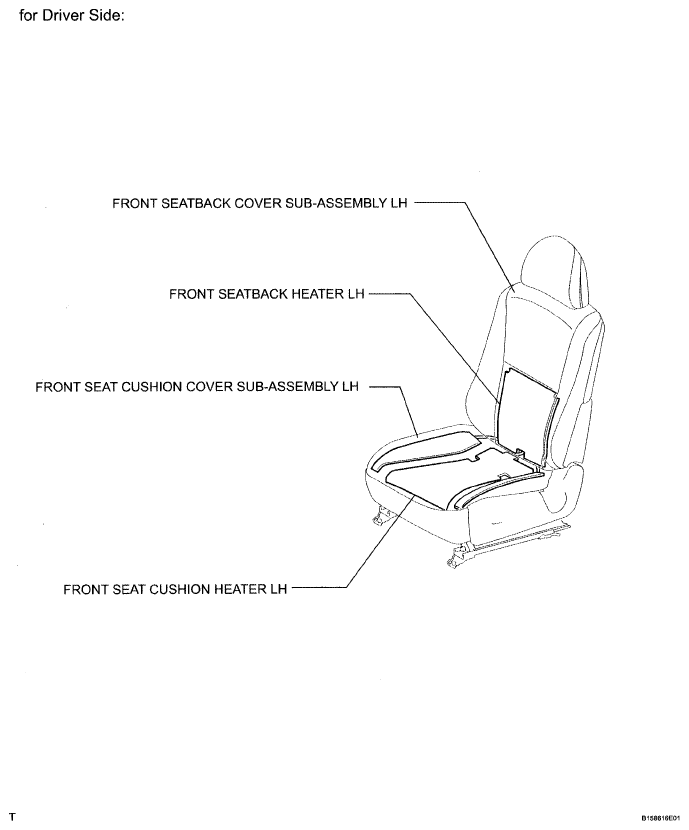

Fig 2: Identifying Climate Control Seat System Parts Location (Driver Side)
G05856206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

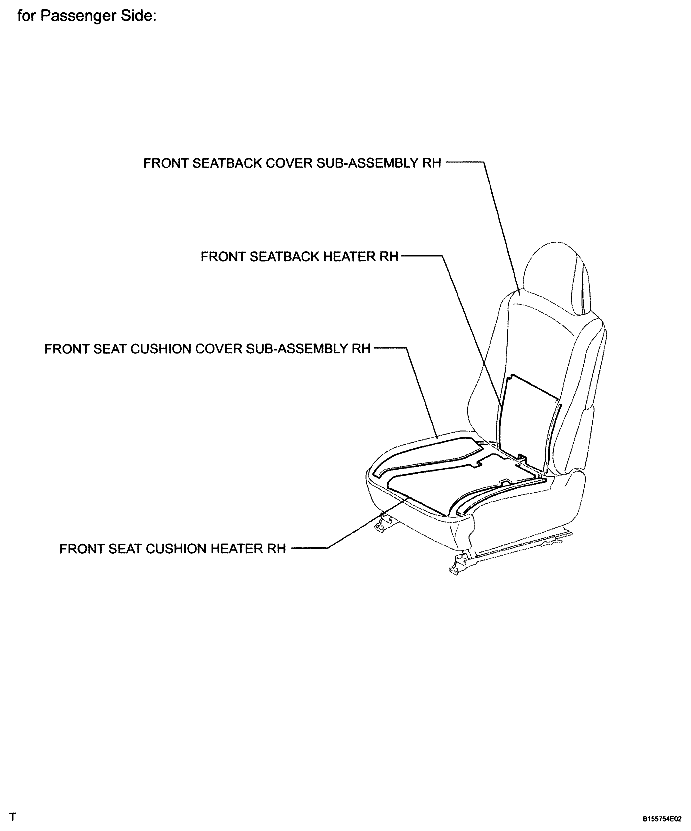

Fig 3: Identifying Climate Control Seat System Parts Location (Passenger Side)
G04952599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

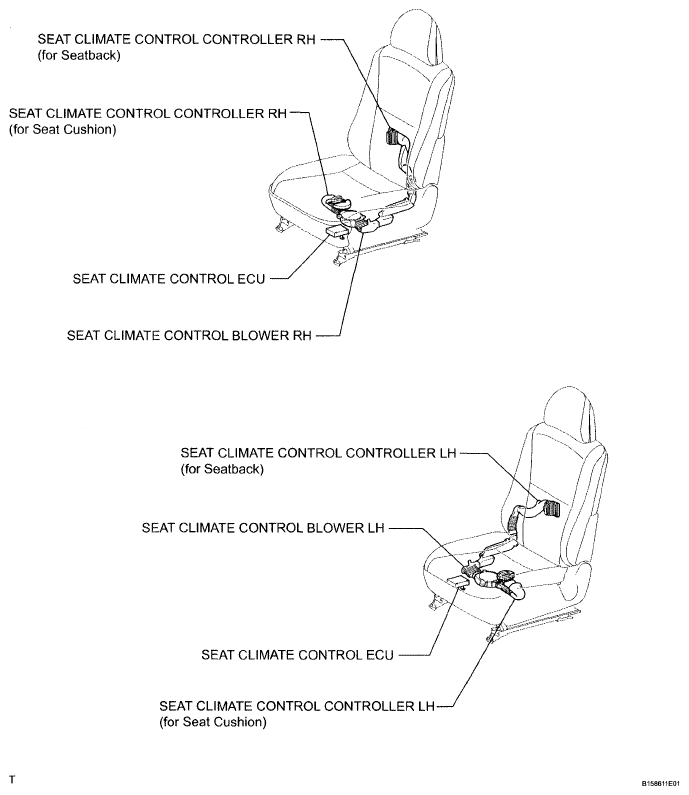

Fig 4: Identifying Climate Control Seat System Parts Location (1 Of 3)
G05856208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

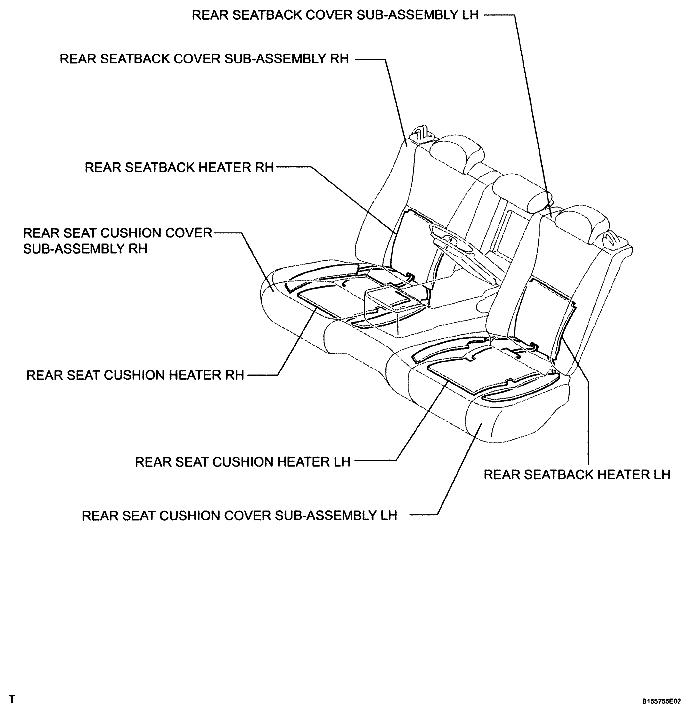

Fig 5: Identifying Climate Control Seat System Parts Location (2 Of 3)
G04952601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

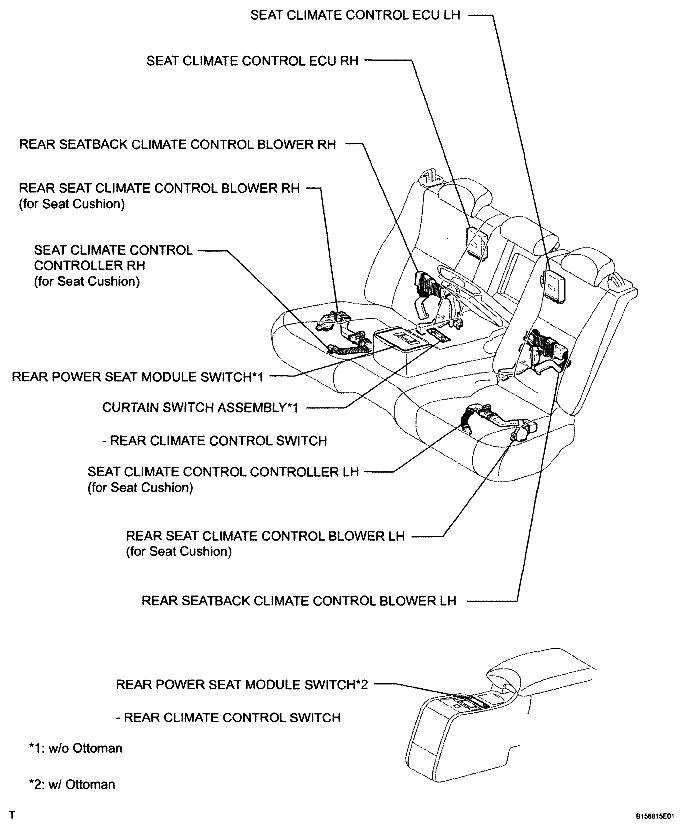

Fig 6: Identifying Climate Control Seat System Parts Location (3 Of 3)
G04952602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
