Oil Pump Motor Controller: Components

Fig 1: Identifying Oil Pump Motor Controller Replacement Components (1 Of 2)
G05780969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

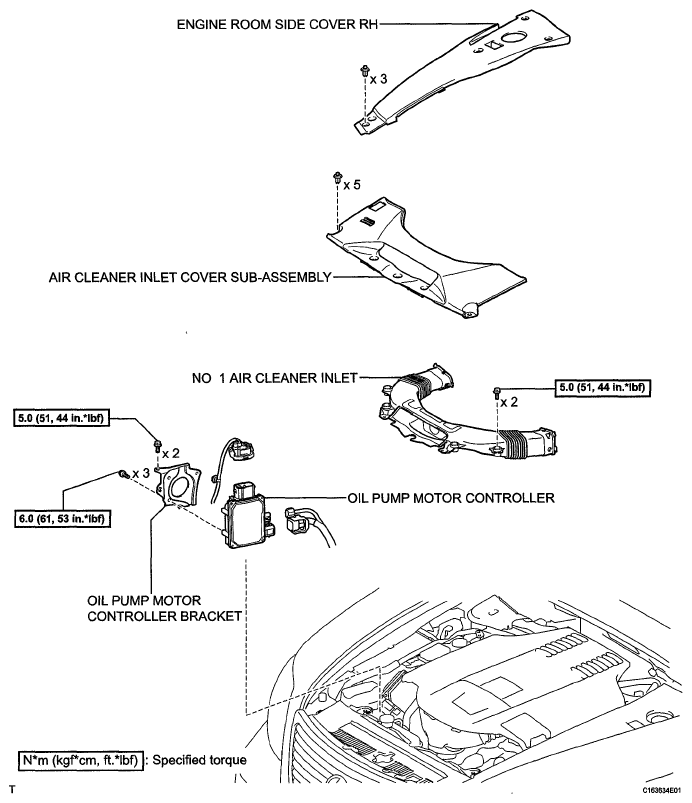

Fig 2: Identifying Oil Pump Motor Controller Replacement Components With Torque Specifications (2 Of 2)
G05780970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
