Diagnosis System
- DIAGNOSIS FUNCTION

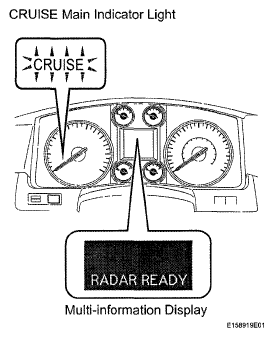

- The diagnosis function makes the master warning light and the multi-information display come on, and the CRUISE main indicator light blinks as shown in the illustration. When a malfunction occurs in the dynamic radar cruise control system, DTCs are stored in the ECM.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:- The master warning light goes off if the system returns to normal.
- Since the stored data in the ECM is cleared by disconnecting the EFI and ETCS fuses or the cable from the negative (-) battery terminal, do not disconnect them until the inspection has been completed.
- The diagnosis function makes the master warning light and the multi-information display come on, and the CRUISE main indicator light blinks as shown in the illustration. When a malfunction occurs in the dynamic radar cruise control system, DTCs are stored in the ECM.
- CHECK INDICATOR
- Turn the engine switch on (IG).
- Check that the CRUISE main indicator light and RADAR READY indicator come on when the cruise control main switch ON-OFF button is pushed on, and that the indicator light goes off when the ON-OFF button is pushed off.
HINT:
- If the indicator check result shows a problem, proceed to troubleshooting for the combination meter section.
- If a malfunction occurs in the vehicle speed sensors, the stop light switch, or other related parts during cruise control driving, the ECU activates AUTO CANCEL of cruise control and blinks the CRUISE main indicator light. This indicator light informs the driver of the malfunction. At the same time, the malfunction is stored as a diagnostic trouble code.
