Roof Headlining: Components

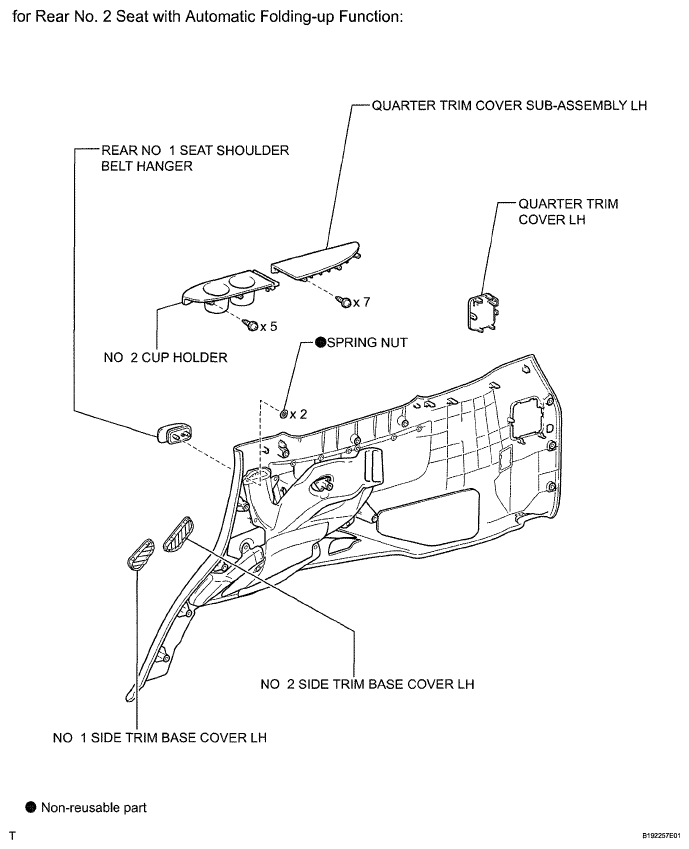

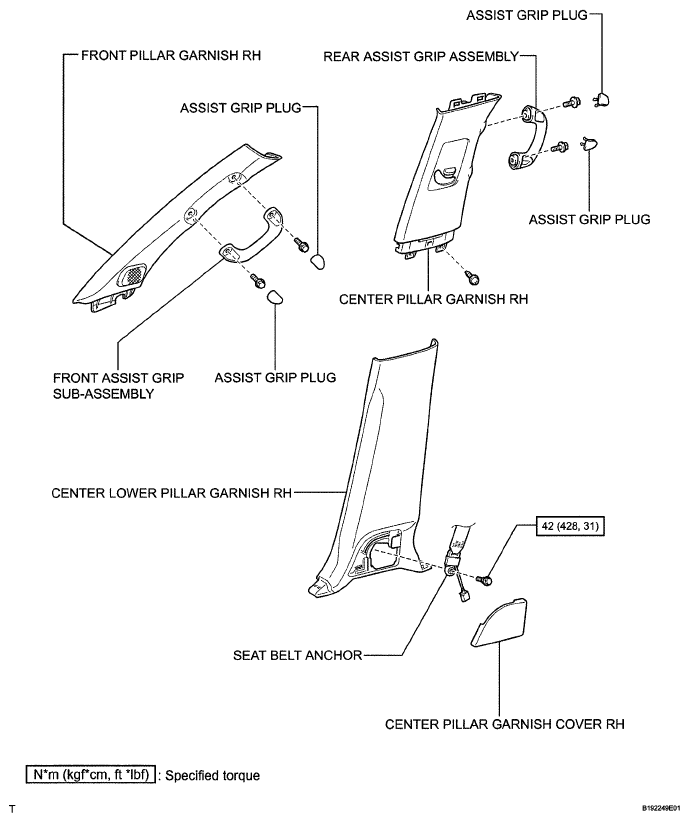

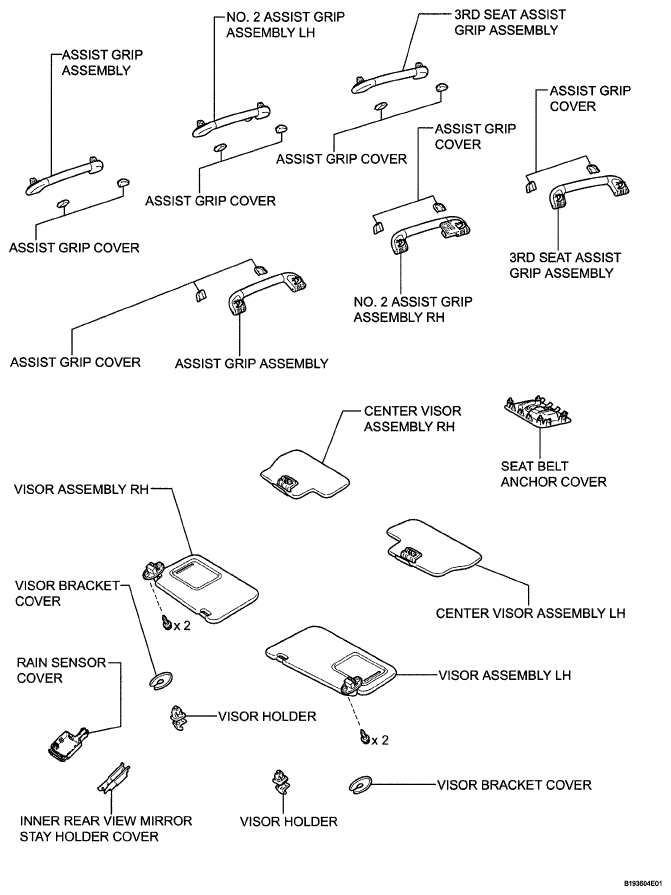

Fig 1: Identifying Roof Headlining Replacement Components (1 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

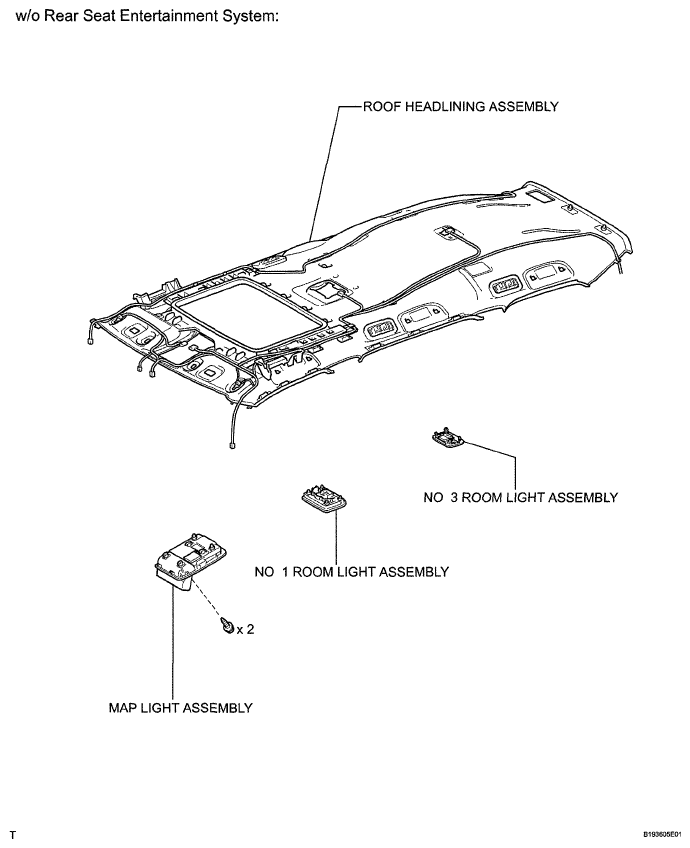

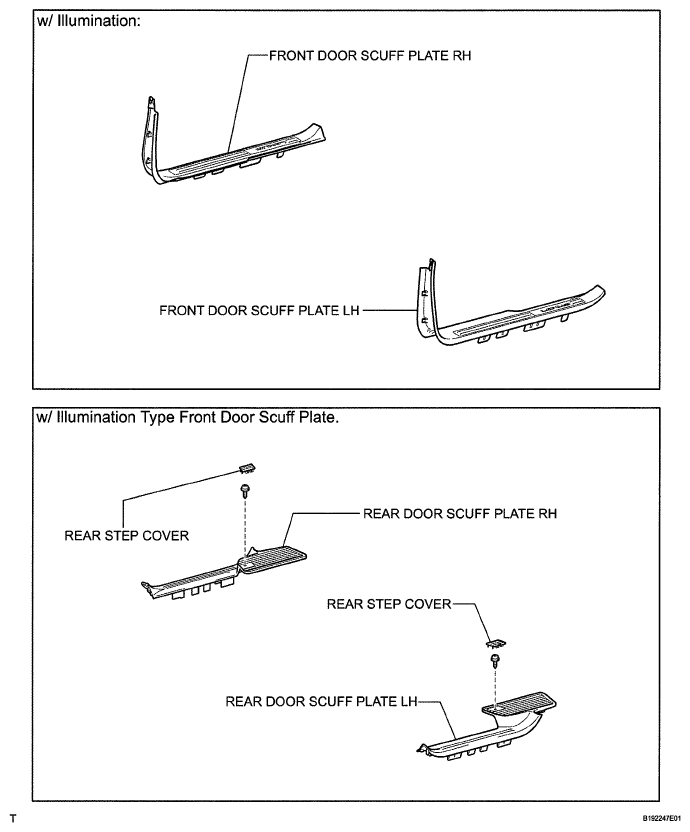

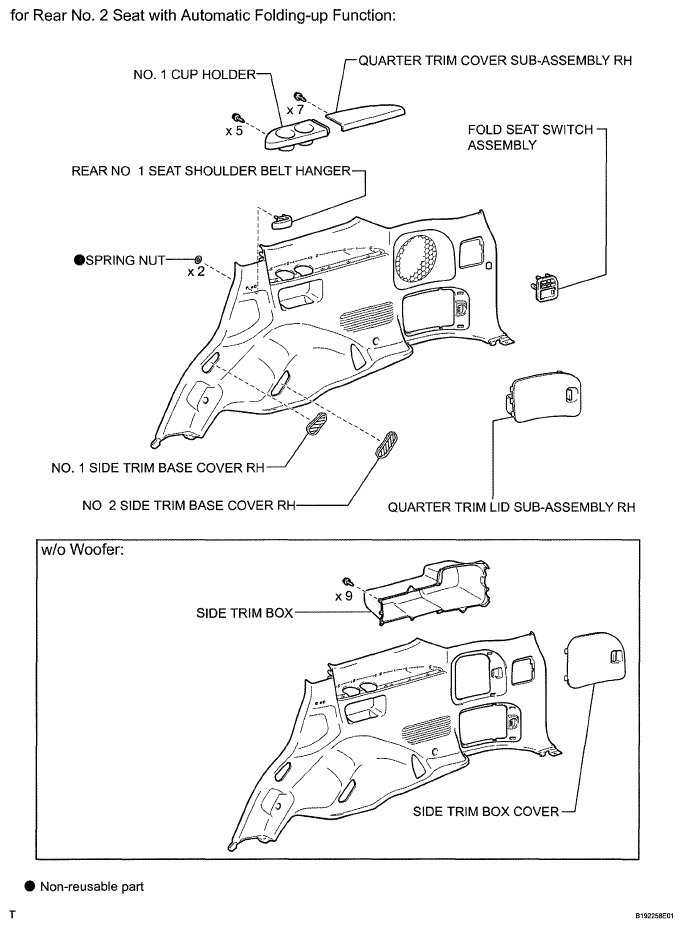

Fig 2: Identifying Roof Headlining Replacement Components (2 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

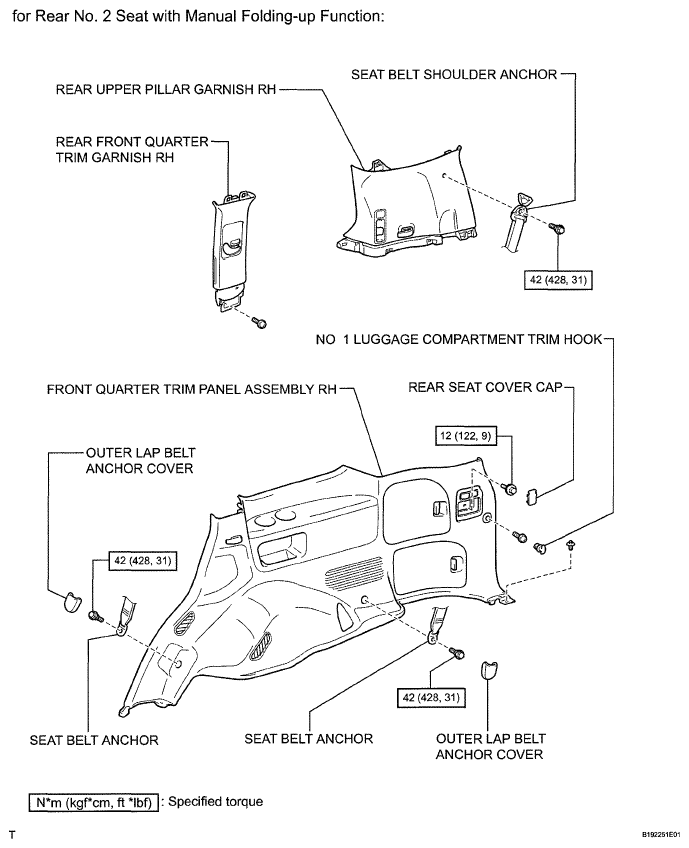

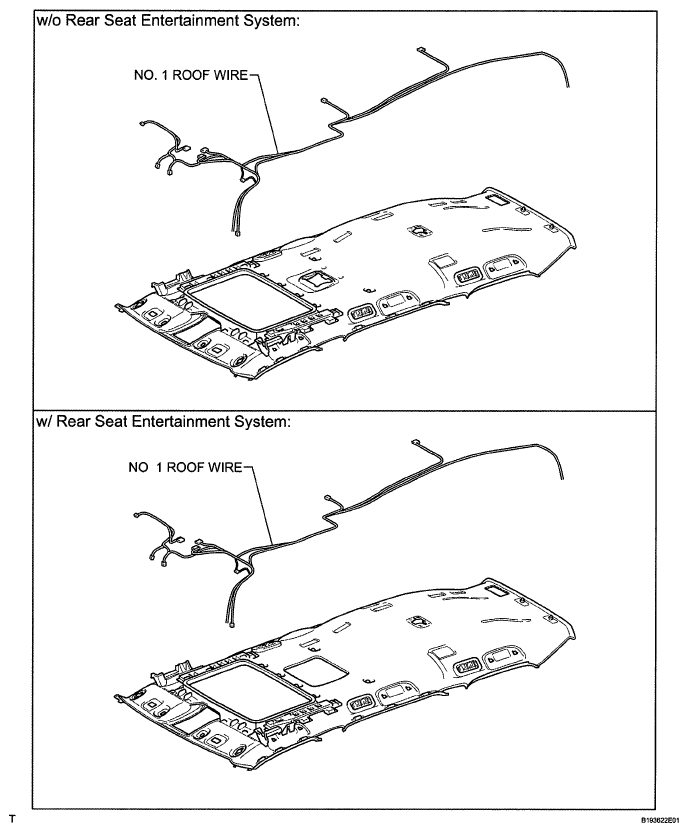

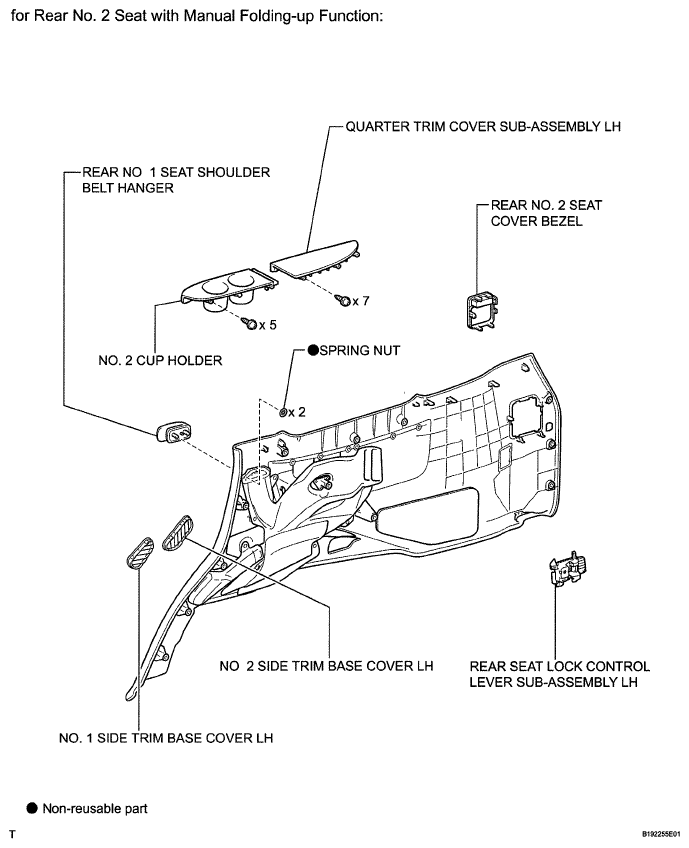

Fig 3: Identifying Roof Headlining Replacement Components With Torque Specifications (3 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

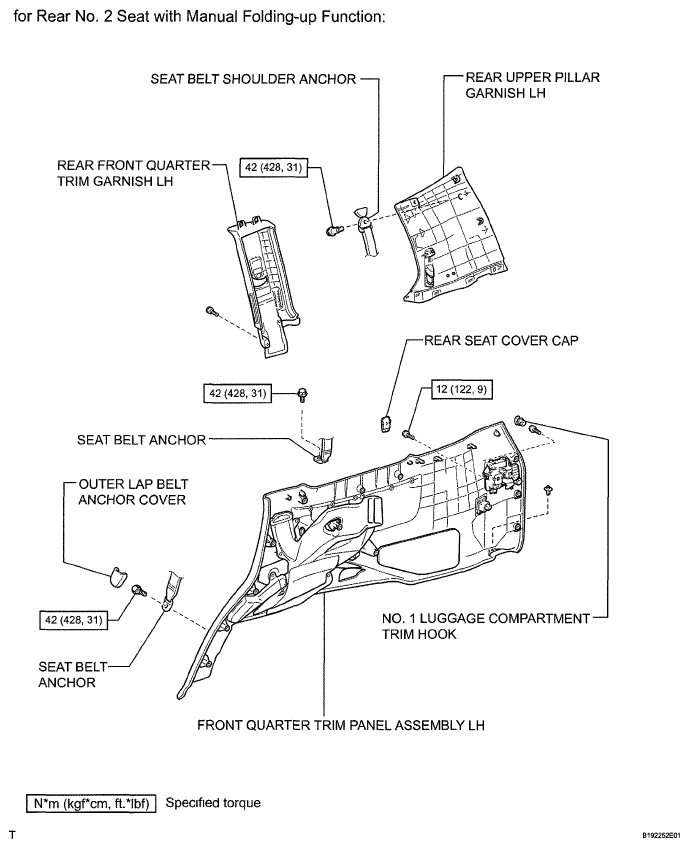

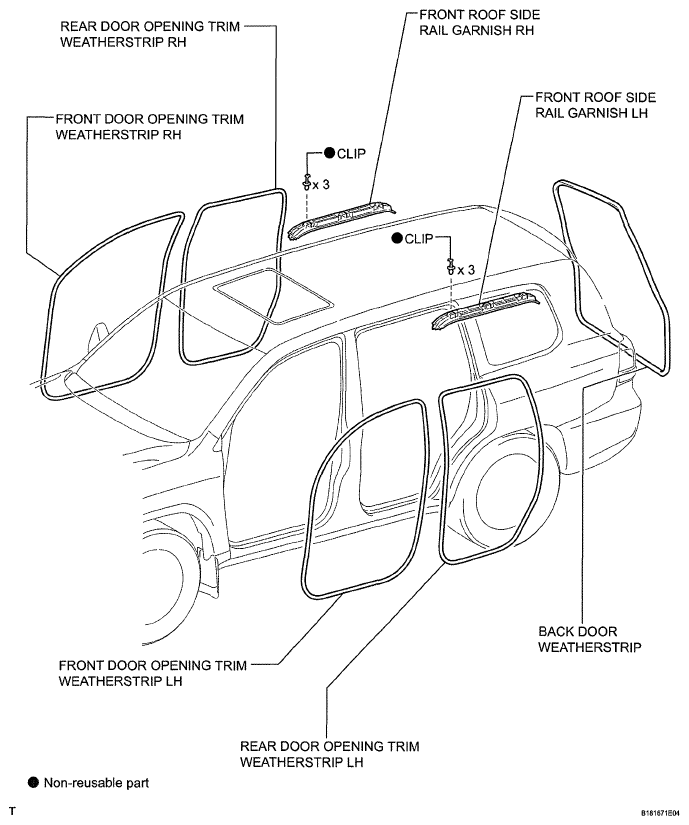

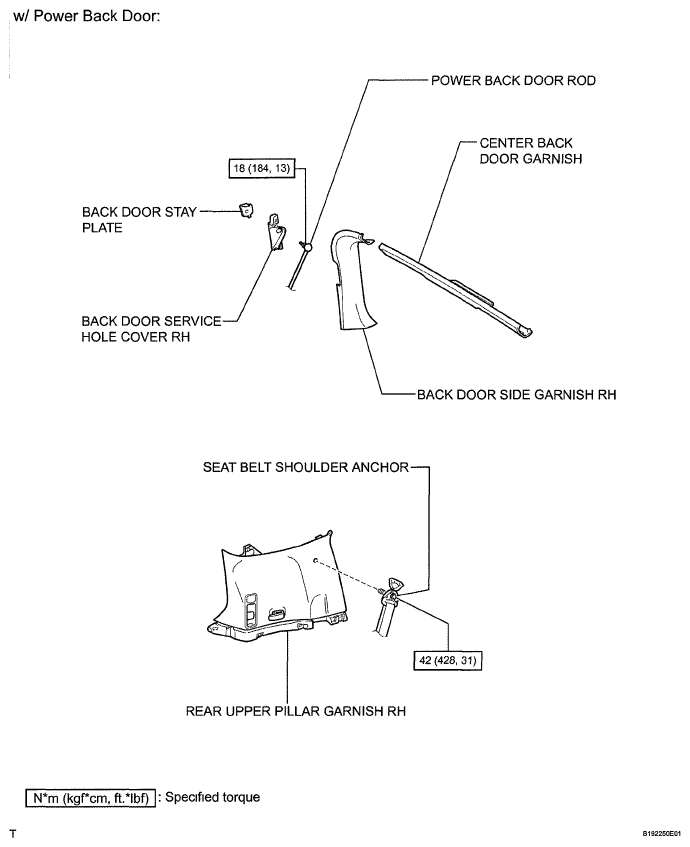

Fig 4: Identifying Roof Headlining Replacement Components With Torque Specifications (4 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

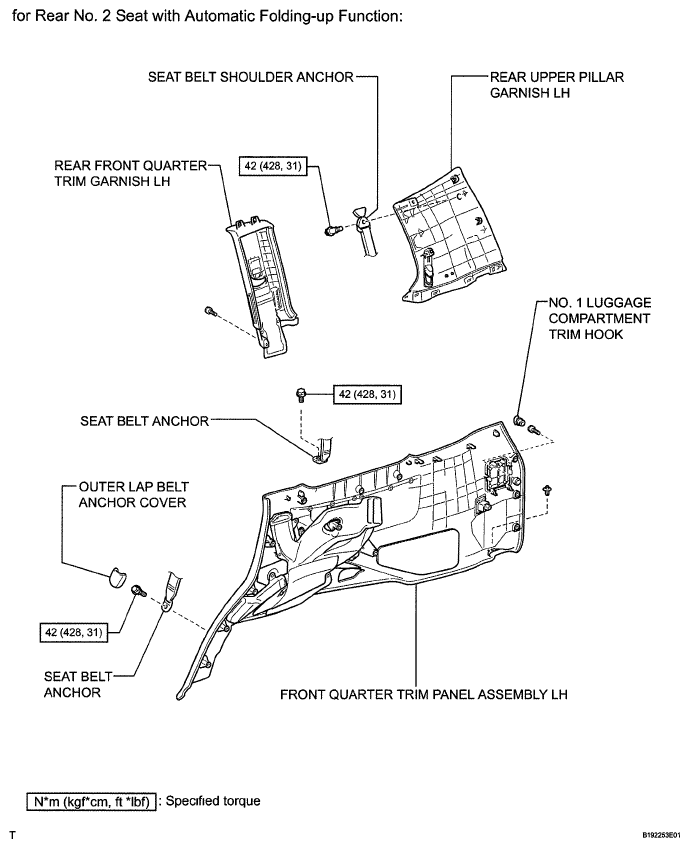

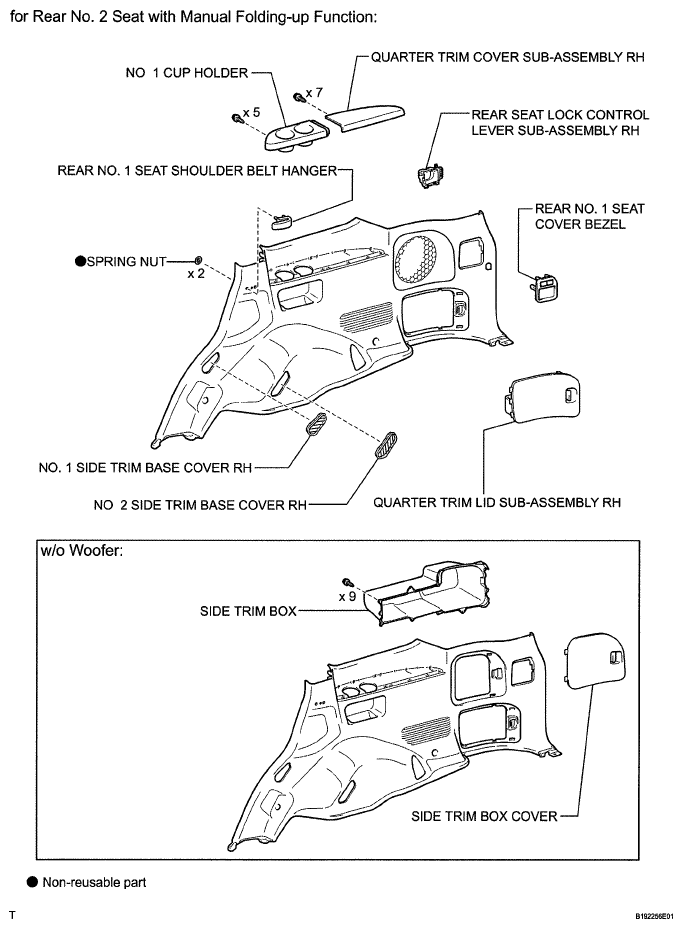

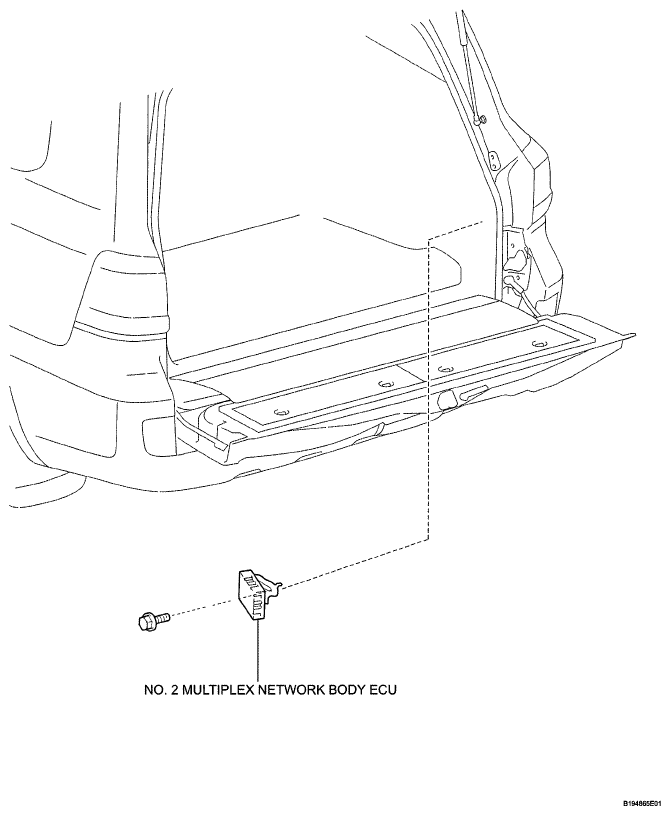

Fig 5: Identifying Roof Headlining Replacement Components With Torque Specifications (5 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

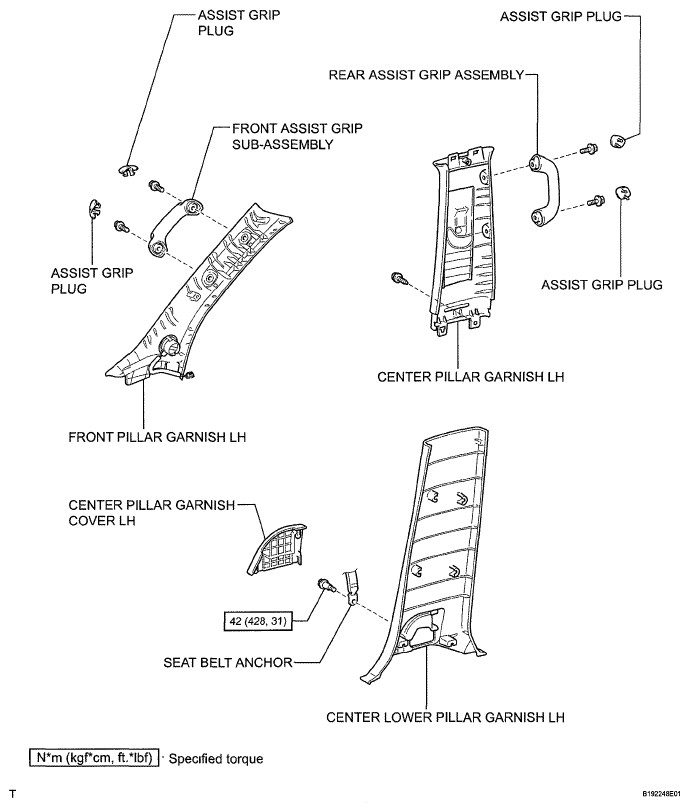

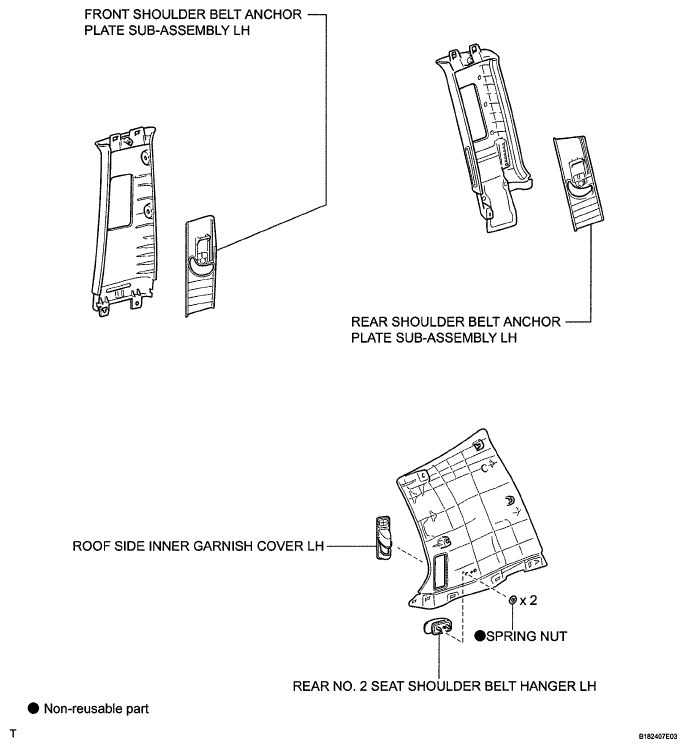

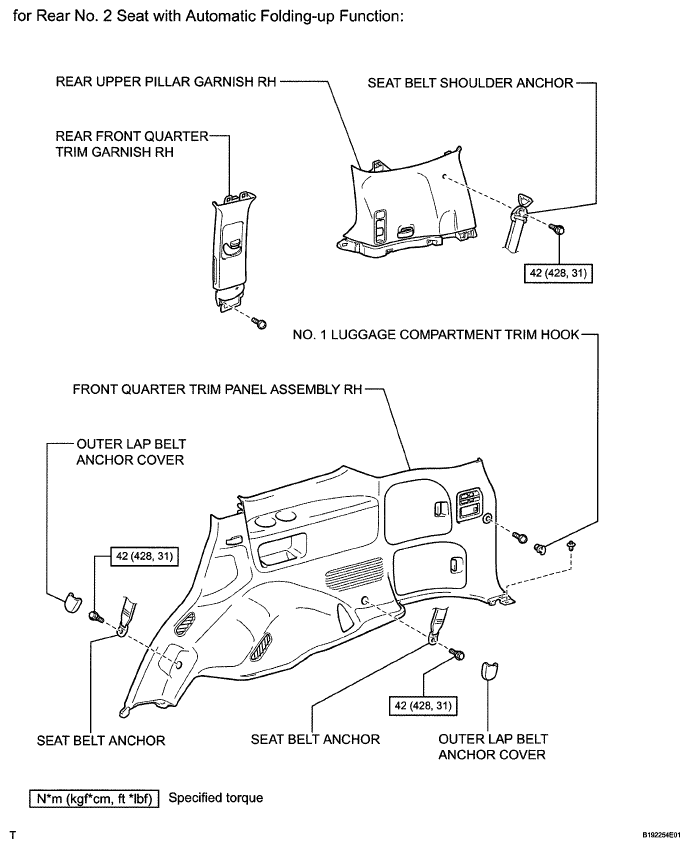

Fig 6: Identifying Roof Headlining Replacement Components With Torque Specifications (6 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

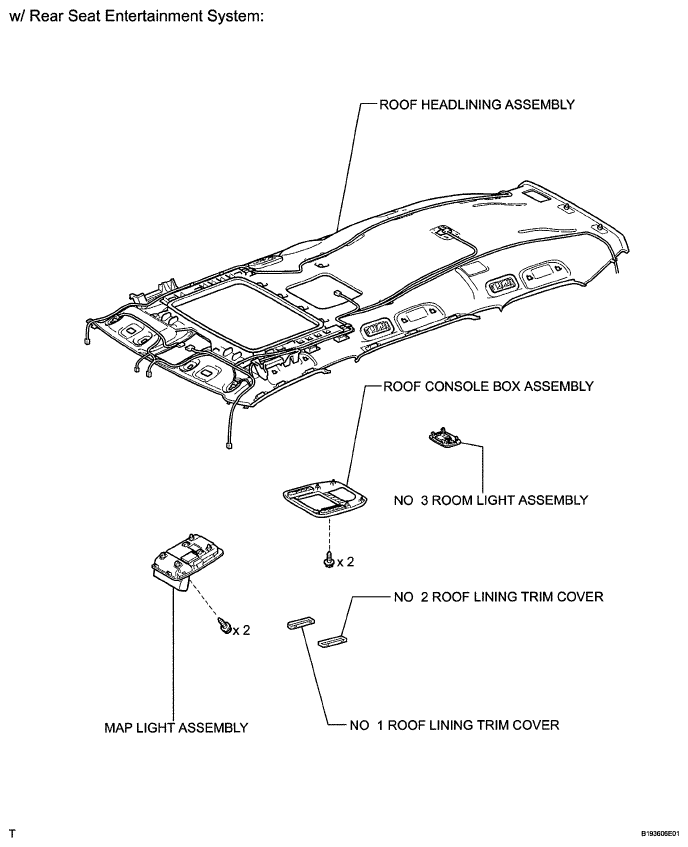

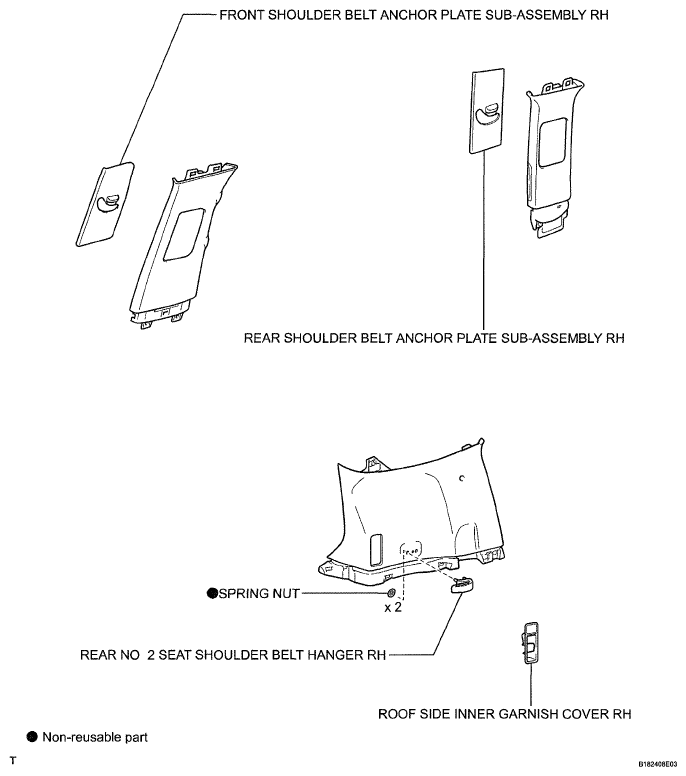

Fig 7: Identifying Roof Headlining Replacement Components With Torque Specifications (7 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

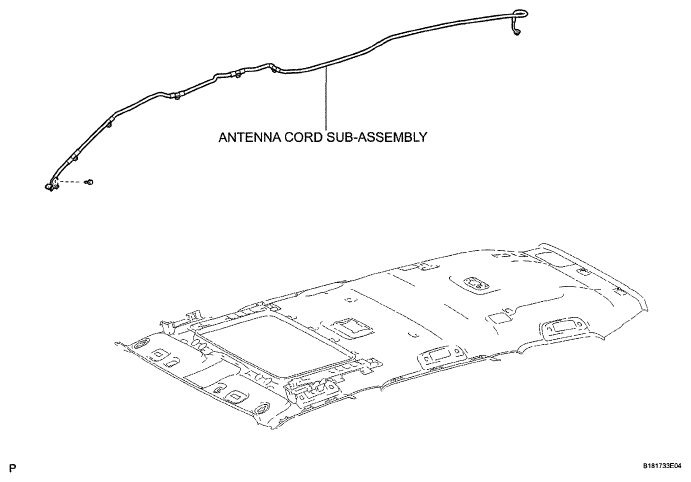

Fig 8: Identifying Roof Headlining Replacement Components With Torque Specifications (8 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Identifying Roof Headlining Replacement Components With Torque Specifications (9 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

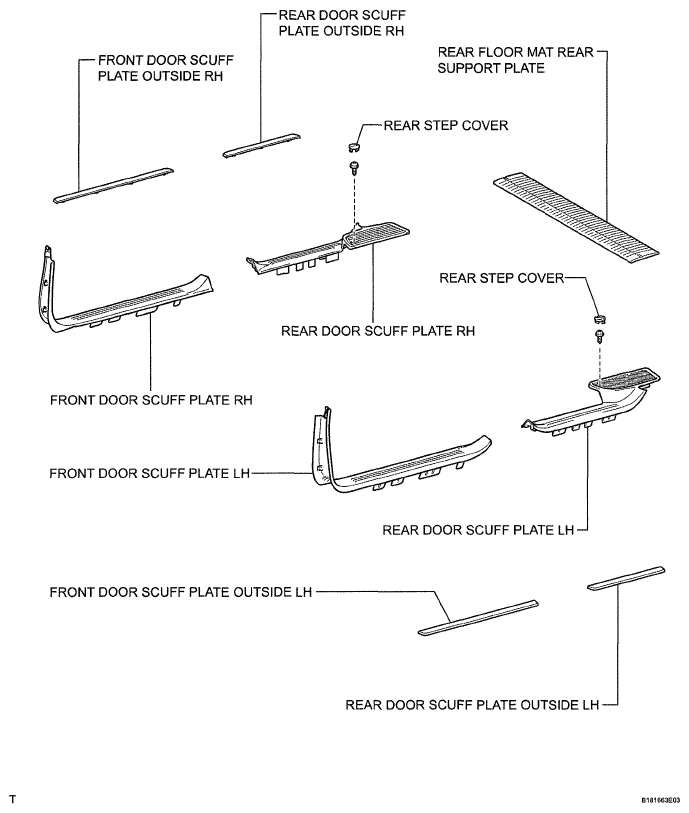

Fig 10: Identifying Roof Headlining Replacement Components (10 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

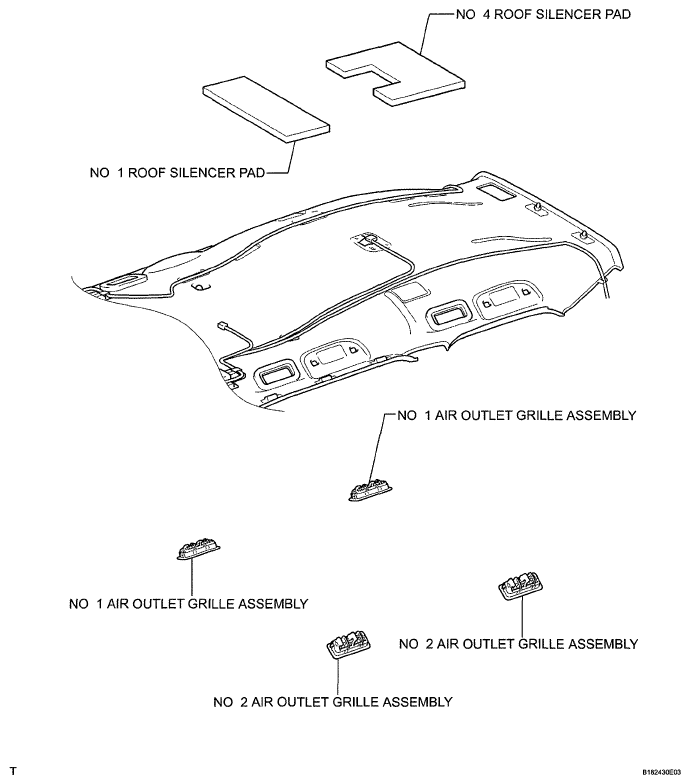

Fig 11: Identifying Roof Headlining Replacement Components (11 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 12: Identifying Roof Headlining Replacement Components (12 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 13: Identifying Roof Headlining Replacement Components (13 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 14: Identifying Roof Headlining Replacement Components (14 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 15: Identifying Roof Headlining Replacement Components (15 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 16: Identifying Roof Headlining Replacement Components (16 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 17: Identifying Roof Headlining Replacement Components (17 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 18: Identifying Roof Headlining Replacement Components (18 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 19: Identifying Roof Headlining Replacement Components (19 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 20: Identifying Roof Headlining Replacement Components (20 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 21: Identifying Roof Headlining Replacement Components (21 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 22: Identifying Roof Headlining Replacement Components (22 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 23: Identifying Roof Headlining Replacement Components (23 Of 23)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
