System Diagram

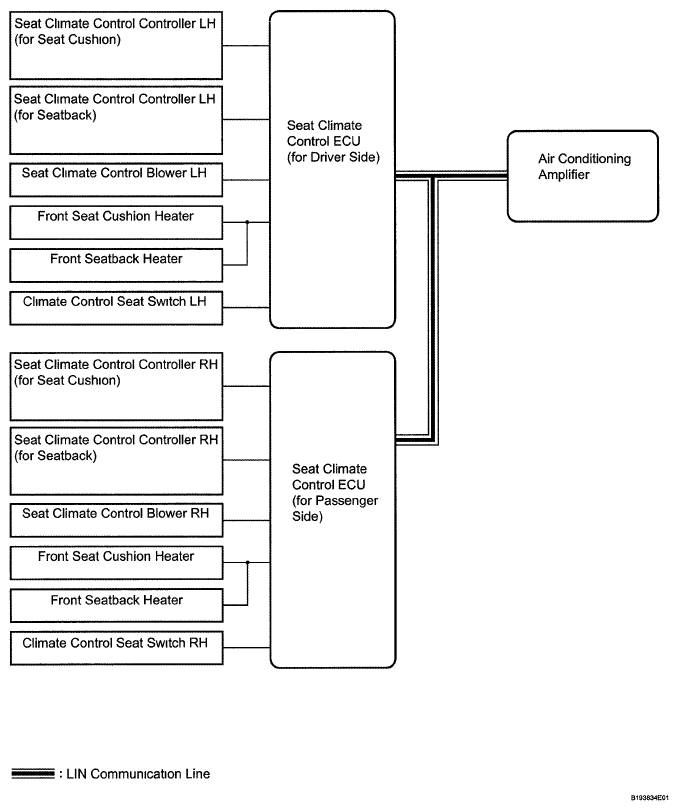

Fig 1: Climate Control Seat System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication Table
SIGNAL REFERENCE
Sender
Receiver
Signal
Line
Climate control ECU
A/C amplifier
A/C signal
LIN
