Front Seat Assembly: Components

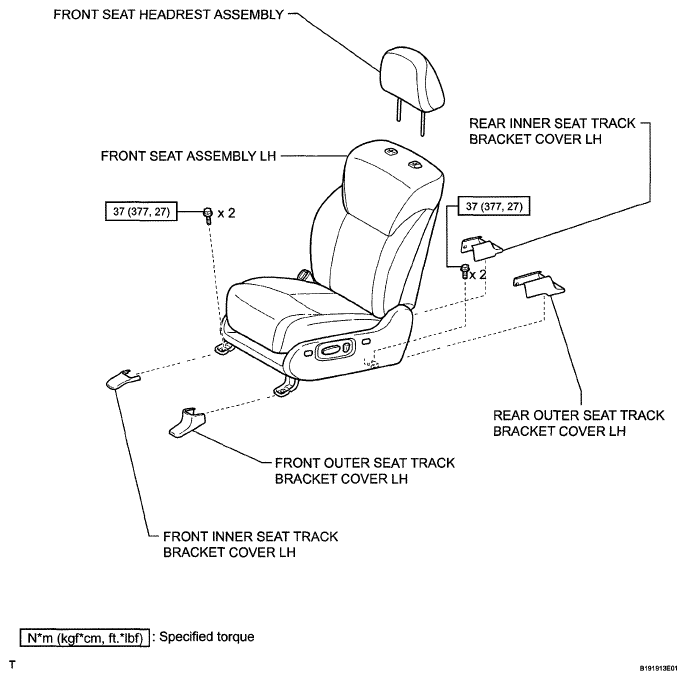

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specification (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Front Seat Assembly Replacement Components With Torque Specification (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Front Seat Assembly Replacement Components With Torque Specification (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Front Seat Assembly Replacement Components With Torque Specification (4 Of 6)

Fig 5: Identifying Front Seat Assembly Replacement Components With Torque Specification (5 Of 6)

Fig 6: Identifying Front Seat Assembly Replacement Components (6 Of 6)
