Lumbar Support Adjuster Assembly: Components

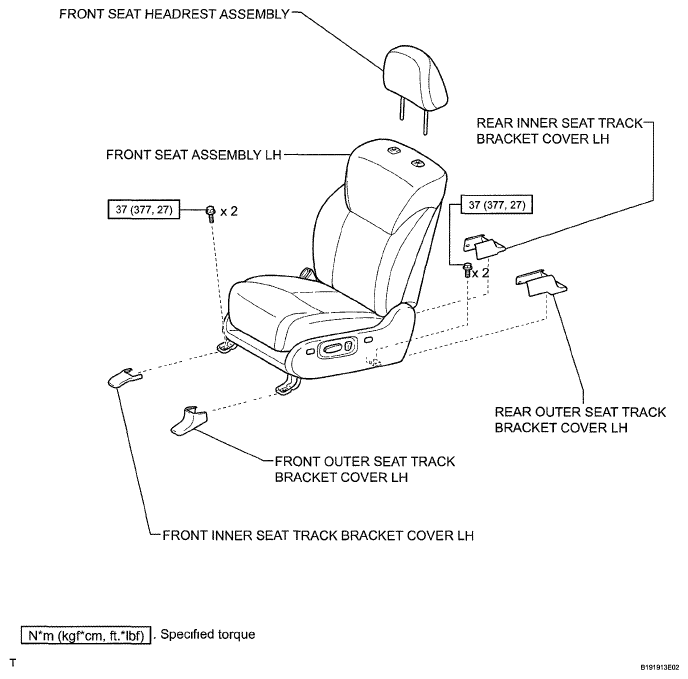

Fig 1: Identifying Lumbar Support Adjuster Assembly Replacement Components With Torque Specification (1 Of 2)
G05766256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

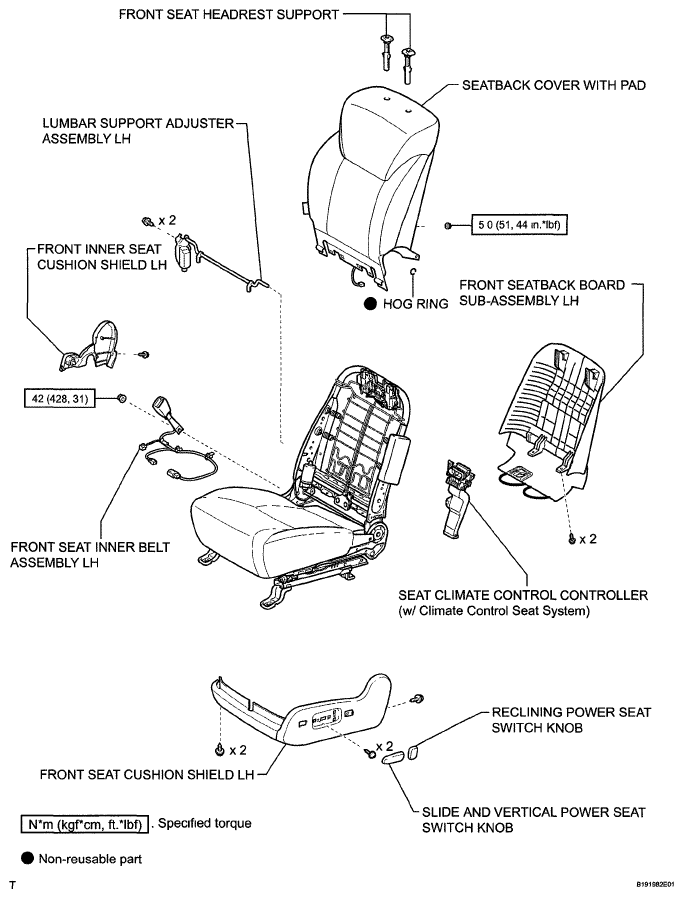

Fig 2: Identifying Lumbar Support Adjuster Assembly Replacement Components With Torque Specification (2 Of 2)
G05766263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
