Height Control Compressor: Components

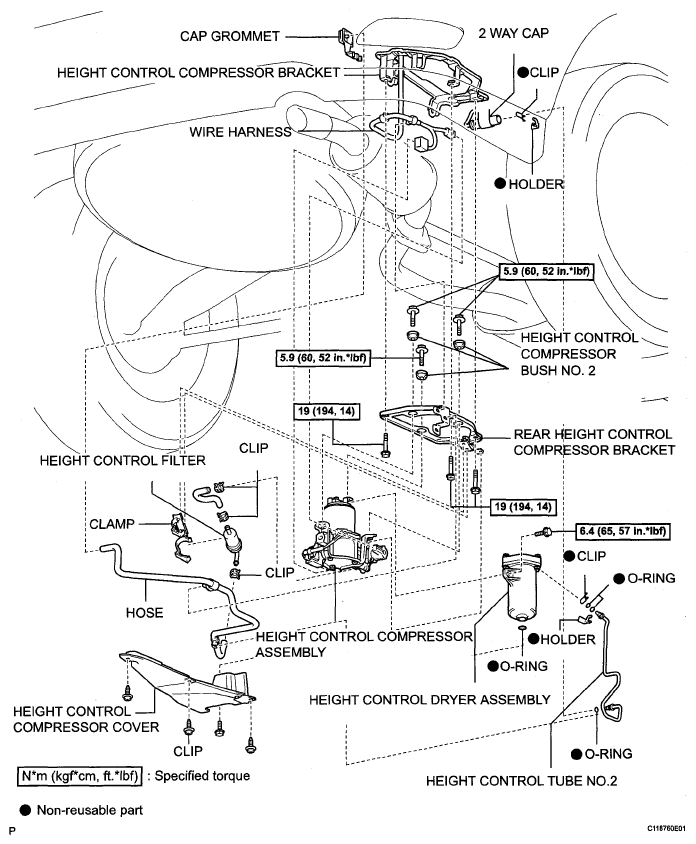

Fig 1: Identifying Height Control Compressor Replacement Components With Torque Specifications
G05269878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
