Frame Wire: Components

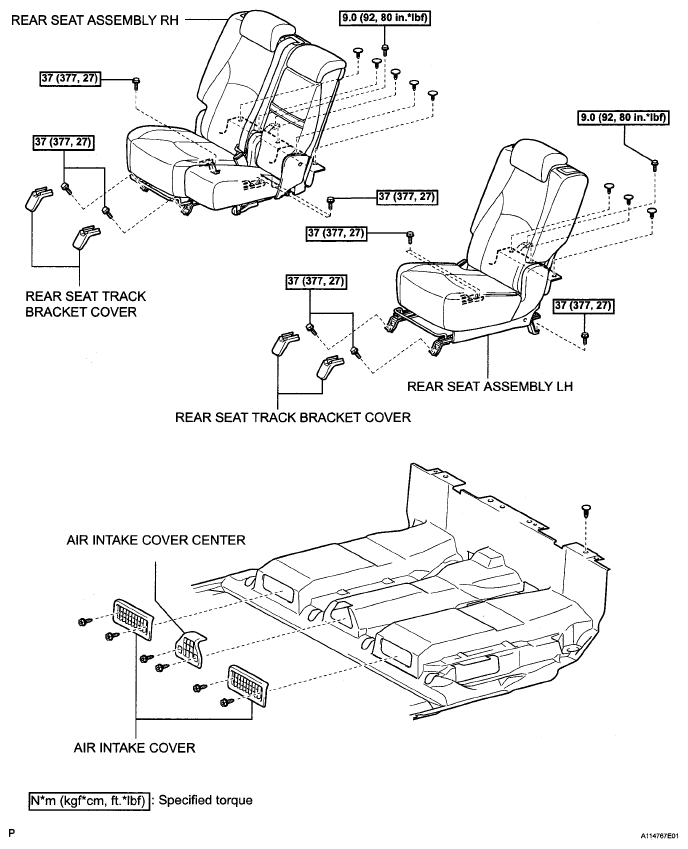

Fig 1: Identifying Frame Wire Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

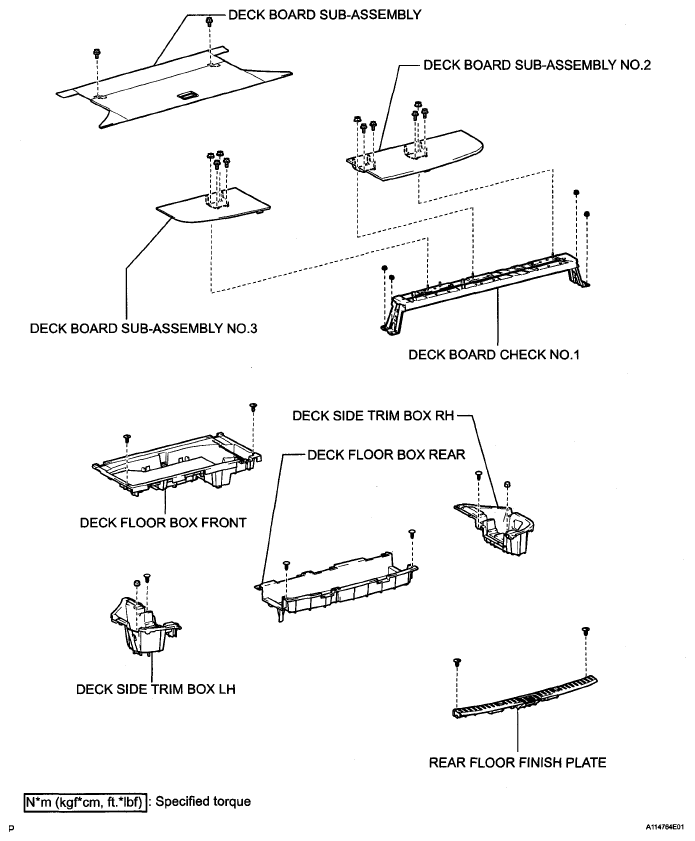

Fig 2: Identifying Frame Wire Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

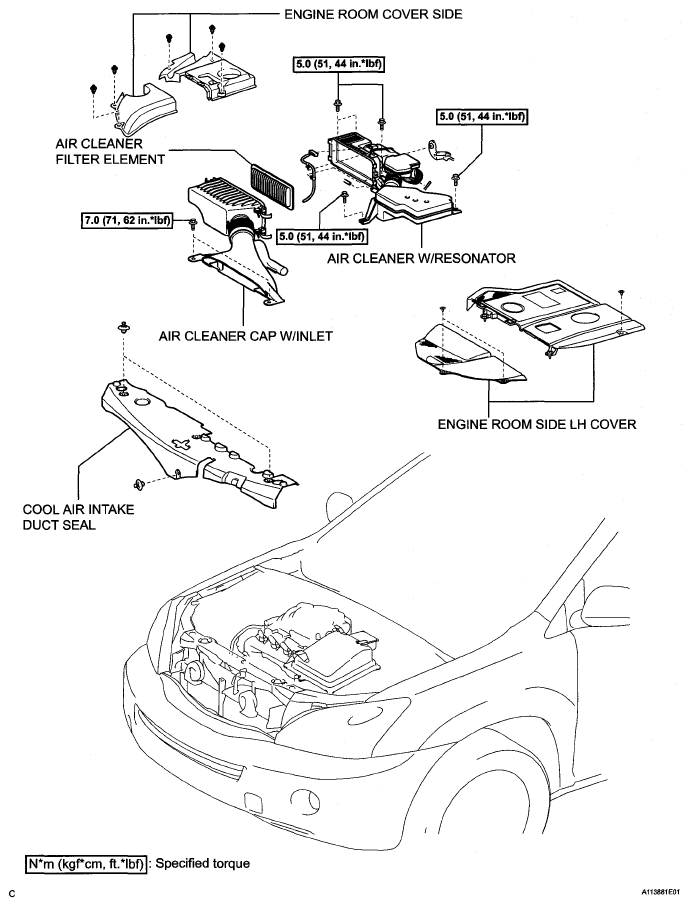

Fig 3: Identifying Frame Wire Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

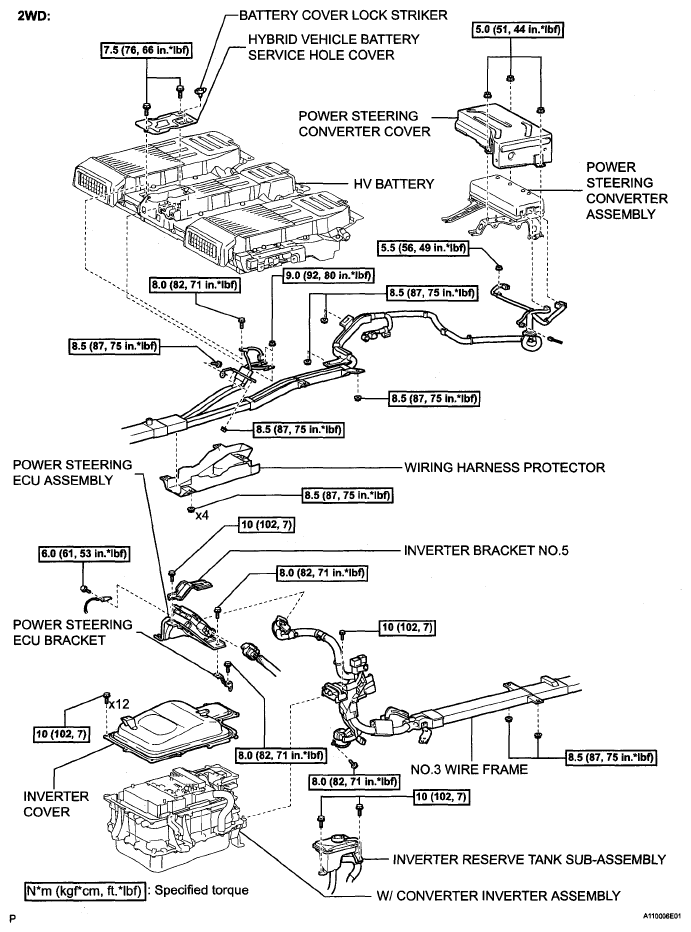

Fig 4: Identifying Frame Wire Replacement Components With Torque Specifications (4 Of 6)

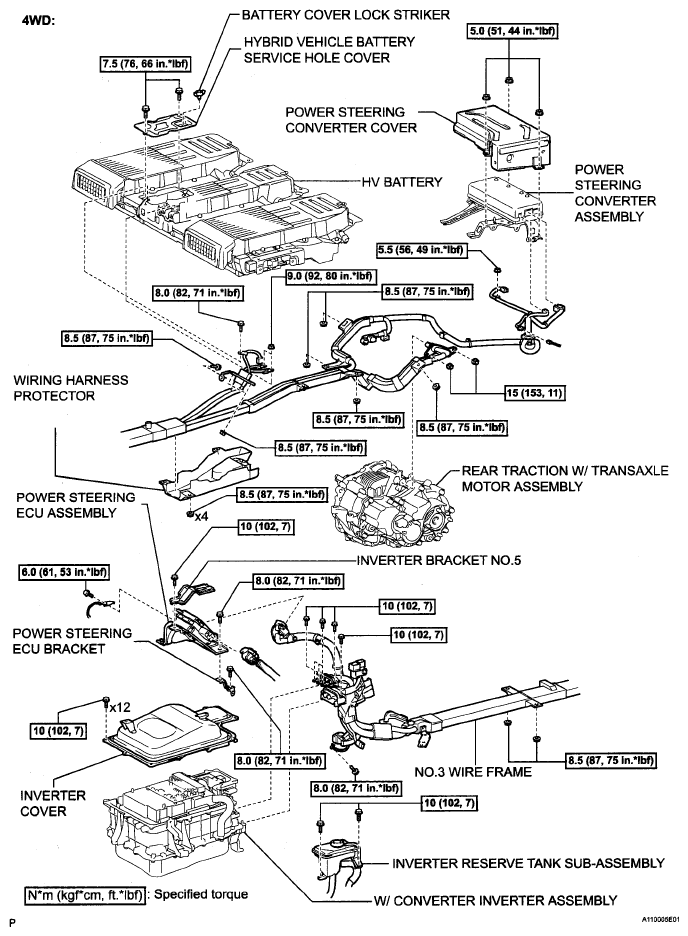

Fig 5: Identifying Frame Wire Replacement Components With Torque Specifications (5 Of 6)

Fig 6: Identifying Frame Wire Replacement Components With Torque Specifications (6 Of 6)
